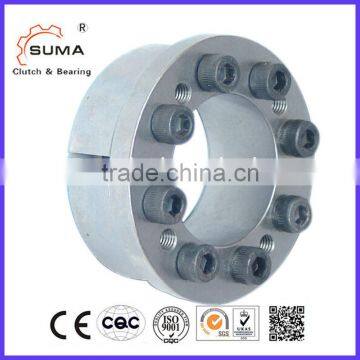

High Performance RLK Series Clamping Units Shaft Hub Connection RLK133
- 5000 Piece / Pieces per Month
- Shanghai ; Ningbo for shaft hub connection
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
RLK133 Short Axial Width with Fixed Backstop Point Shaft Keyless Locking
-
SUMA Easy to Release RLK200 Keyless Shaft Locks Assembly
-
Locking assembly RLK 132 Cone Clamping Elements with Short Axial Width
-
Quick Assembly RLK250 Cone Clamping Elements with Factory Price
-
RLK250 Keyless Lock Assembly Power Transmission Elements
-
Power Transmission Elements Mechanical Locking Devices RLK250L
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SUMA | |
| Model Number | RLK133 |
Product Description
High Performance RLK Series Clamping Units Shaft Hub Connection RLK133
Features of Shaft hub connection
• Centres the shaft to the hub
• Short axial width
• No axial displacement between hub and shaft during clamping procedure due to fixed backstop point
• For shaft diameters between 20 mm and 200 mm
Product name | Shaft hub connection |
Model | RLK133 |
Material | GCr15 |
Inner Diameter | 20mm |
Outer Diameter | 47mm |
Thickness | 34mm |
Weight | 0.3kg |
Application | Low space equipment |
Package | Wooden box, or customizable |
Payment terms | TT, L/C, D/A, D/P, Western Union, Paypal |
Delivery time | 7-10 days after order confirmed |
Technical Parameter of Shaft hub connection
More Models for your reference
Tolerances
• h8 for shaft diameter d
• H8 for hub bore D
Surfaces
Average surface roughness at the contact
surfaces between the shaft and the hub bore: Ra ≤ 3,2 μm.
Materials
The following apply to the shaft and the hub:
• E-module ≥ 170 kN/mm2
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the shaft hub connection ?
A: Usually shaft hub connection are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of shaft hub connection from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the shaft hub connection in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
