Enclosed Design Shaft Sleeve Keyless Connector RLK 608

FOB Price

US$ 5 - 10 / Piece

1 Piece(Min. Order)

Port Shanghai; Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Structure	Disc	Flexible or Rigid	Flexible
Standard or Nonstandard	Standard	Material	Steel
Brand Name	Suma	Place of Origin	Jiangsu, China
Model Number	RLK 608

Product Description

Enclosed design shaft sleeve keyless connector RLK 608
Details
Model		RLK608
Material		steel
Type		shrink discs
Inner Diameter		140mm
Outer Diameter		230mm
Weight		10.8kg
Width		71mm
Transmissible torque		2700Nm
axial force		540kN

Features

1. Highest transmissible torques

2. Easy, quick assembly by tightening clamping screws without a torque wrench

3. Distance-controlled assembly ensures guaranteed transmissible torques

4. Enclosed design, therefore impervious to dirt

5. True running even at high speeds

6. Centres the hollow shaft or hub to the shaft

7. For hollow shafts or hubs with outer diameters of 30 mm up to 390 mm

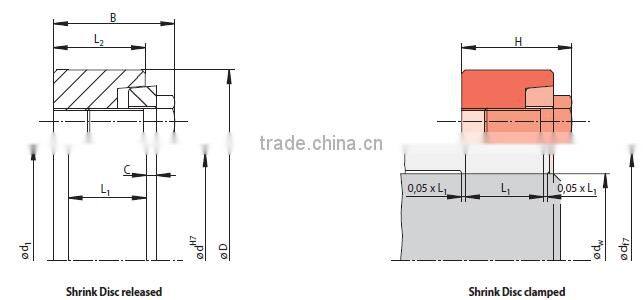

specifications

Dimensions									Transmissible torque or axial force(Nm)		Technical Data Clamping screws			Weight	Article number
(mm)
size	D	d₁	B	L₁	L₂	C	H	dw*	M	F	Number	Size	Length	kg
d
140	230	144	71	46	53	6	61,8	100	27 000	540	12	M 14	40	10,8	4200-140801-000000
								105	30200	570
								115	37 000	640
150	263	159	75	50	57	6	65,8	110	35 700	640	12	M 14	40	16,3	4200-150801-000000
								115	39500	680
								125	47 500	760
155	263	159	75	50	57	6	65,8	110	36 200	650	12	M 14	40	15,8	4200-155801-000000
								115	40000	690
								125	48 000	760
160	290	169	82	56	63	6	73,0	120	56 000	930	12	M 16	50	22,6	4200-160801-000000
								125	61000	970
								135	72 500	1 000
165	290	169	82	56	63	6	73,0	120	56 500	940	12	M 16	50	22,0	4200-165801-000000
								125	61500	980
								135	72 500	1 000
170	300	179	82	56	63	6	73,0	130	61 000	930	12	M 16	50	23,6	4200-170801-000000
								135	66500	980
								145	78 000	1 000
175	300	179	82	56	63	6	73,0	130	61 500	940	12	M 16	50	22,9
								135	67000	990					4200-175801-000000
								140	72 500	1 000
180	320	191	99	72	79	6	89,0	140	97 500	1 300	16	M 16	50	33,9
								145	105000	1400					4200-180801-000000
								155	122000	1500
185	320	191	99	72	79	6	89,0	140	96 000	1 300	16	M 16	50	33,0	4200-185801-000000
								145	104000	1400
								155	120000	1 500
190	320	195	100	71	79	7	89,0	150	92 000	1 200	16	M 16	50	33,0	4200-190801-000001
								155	99000	1200
								165	113 500	1 300
195	340	206	100	71	79	7	89,0	150	107000	1 400	16	M 16	50	37,6	4200-195801-000000
								155	115000	1400
								165	129000	1 500
200	340	206	100	71	79	7	89,0	150	108000	1 400	16	M 16	50	36,6	4200-200801-000000
								155	116000	1400
								165	130000	1 500
220	370	228	121	87	95	7	107,5	160	160000	2 000	16	M 20	60	51,6	4200-220801-000000
								170	182000	2100
								180	206 000	2 200
240	405	248	127	92	100	7	112,5	170	190000	2 200	18	M 20	60	65,3	4200-240801-000000
								180	215000	2300
								200	269 000	2 600
260	430	268	137	102	110	7	122,5	190	247 000	2 600	21	M 20	60	79,1	4200-260801-000000
								200	277000	2 700
								220	340 000	3 000
280	460	288	150	115	123	7	135,5	210	335 000	3100	22	M 20	60	100,0	4200-280801-000000
								220	370000	3300
								240	449 000	3 700

Certifications

Packaging & Shipping

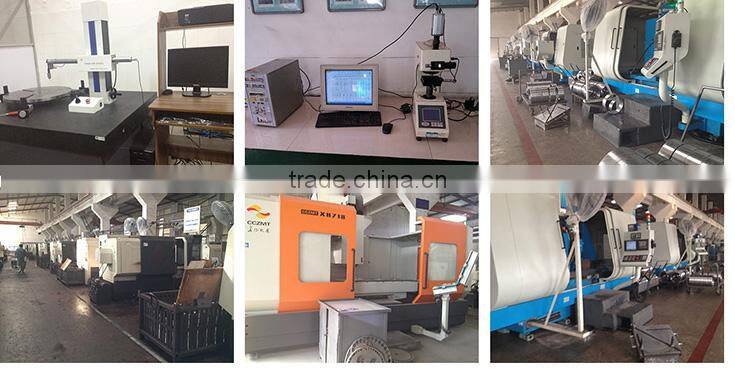

Production and Test

FAQ

Q: Why do we choose your company?

A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.

Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.

Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?

A: Yes, we can send bearing samples to check quality first.
