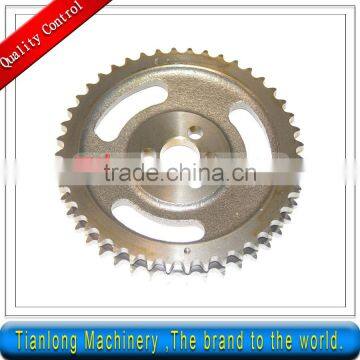

GENERAL MOTORS 3735412 S288 Engine Timing Camshaft Sprocket with 44 Teeth
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Qingdao
You May Like
-
C45 Steel YF1Z62306BA S859 Timing Crank Sprocket/Kettenrad/Pinon/Pignon/Roda Dentada Wheel with 9.525mm Pitch 19 Teeth
-
C45 Steel XL3Z6306BA S843 Timing Crank Sprocket/Kettenrad/Pinon/Pignon/Roda Dentada Wheel with 9.525mm Pitch 21 Teeth
-
C45 Steel S836 Roller Timing Sprocket/Kettenrad/Pinon/Pignon/Roda Dentada Wheel with 8mm Pitch 56 Teeth
-
C45 Steel 12555671 S835 Roller Timing Crank Sprocket/Kettenrad/Pinon/Pignon/Roda Dentada Wheel with 8mm Pitch 28 Teeth
-
S822 Timing Crank Sprocket/Kettenrad/Pinon/Pignon/Roda Dentada Wheel with 9.525mm Pitch 48 Teeth
-
C45 Steel F6TZ6306BA S821 Roller Timing Crank Sprocket/Kettenrad/Pinon/Pignon/Roda Dentada Wheel with 9.525mm Pitch 19 Teeth
Product Details
| Place of Origin | Henan, China | Brand Name | Tianlong | |
| Model Number | S288 |
Product Description
Specifications
1.Standard & Customized gear & sprocket2.High Quality
3.Made by ourselves instead of others
4.More than 10 years experience
Our Main Products (Since 2003):
1. Gear & Sprocket & Timing Kit: spur gear, bevel gear, helical gear, pinion,
roller chain sprocket, drive/ driven sprocket and so on.
2. Agricultural Gear & Sprocket
3. Industrial Gear & Sprocket
4. Motorcycle Gear & Sprocket
5. Timing Kit
4. Motorcycle Gear & Sprocket
5. Timing Kit
Japanese: Toyota, Nissan, Mazda, Mitsubishi, Honda, ISUZU etc.
American: Ford, Chevrolet, GMC, Dodge, Buick, Cadillac etc.
Russian: Lada etc.
6. Mechanical Transmission Parts
(wheel gear, sprocket, standard roller sprocket, non-standard sprocket, special non-standard parts,
American: Ford, Chevrolet, GMC, Dodge, Buick, Cadillac etc.
Russian: Lada etc.
6. Mechanical Transmission Parts
(wheel gear, sprocket, standard roller sprocket, non-standard sprocket, special non-standard parts,
spline, keyway, axle, flange, guide rail, tensioner, chain, spline shaft, steel bushing etc.)
Treatment process:
Casting / Forging
Paint / No Paint
Galvanized / White Zinc Plated
Quenching / Tempering
Black Finish / Bluing
Thermal Refining
CNC Line
Sand Blasting
Material:
| Material | Tooth Surface Hardness | Range of Application |
| 15, 20 Steel | carburizing and quenching 50~60 HRC | apply to Z≤25 high speed, overload, impact load sprocket |
| 35 Steel | normalizing 160~200 HBS | apply to Z>25 low speed, light load, smooth drive sprocket |
| 45, 50, ZG45 Steel | under the working conditions of low medium speed, light medium load, no violent shock, vibration and easy abrasion sprocket | |
| 15Cr, 20Cr | carburizing and quenching 50~60 HRC | apply to Z<25 high power drive sprocket, high speed and overloaded important sprocket |
| 35SiMn, 35CrMo, 40Cr | high speed, overload, shock, continuous work sprocket | |
| Q235, Q275 | 140 HBS | medium speed, transmission medium power sprocket, larger sprocket |
| Gray cast iron ( No less than HT200) | 260~280 HBS | smooth load, lower speed, more teeth driven sprocket |
| Grey cloth bakelite | transmitted power less than 6 kw, high speed, smooth transmission and low noise sprocket |
Package:
Plastic Bag + Paper Carton + Wooden Case
Advantages:
1. Alibaba's 6thyear member 2. Standard & non-standard & custom design 3. Since the 1990s, we began to export Europe, America, Germany and other countries and regions. 4. Win a good reputation at home and abroad 5. Widely used in hoisting machinery, motor repair machinery, machinery manufacturing, conveyor equipment etc. 6. Agricultural machinery sprockets: We are the complete sets of gear, chain wheel, shaft and other transmission parts fixed point production enterprise of Shanghai Lonking (zhongyuan II), YTO Group (Red East or Dongfang Hong) and other famous China companies. |
Certificate: TUV Rheinland
Our Factory and Workshop:
Trade Show:
