Home > Products > FR Self-lubricating meshed composite bearings > Self Lubricating Bearing With a PTFE Compound With Glass Fibers and Graphite Sintered Into a Stainless Steel Mesh
Self Lubricating Bearing With a PTFE Compound With Glass Fibers and Graphite Sintered Into a Stainless Steel Mesh
- shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB | |
| Model Number | FR | Type | Flanged | |
| Material | Bronze or Steel,Brass,Bronze,copper,stainless steel |
Product Description
Specifications
self lubricating bearing with a PTFE compound with glass fibers and graphite sintered into a stainless steel meshgood quality
self lubricating bearing with a PTFE compound with glass fibers and graphite sintered into a stainless steel mesh
FR is a composite material, it is made of Steel/stainless steel/bronze wire mesh as frame and cover the mixture of PTFE and other anti-wear material by special sintering.
Features
- It is of low friction coefficient and good performance in anti-wear.
- Due to its flexibility, it can act as segregation film between two steel friction surfaces, in this application, the superior performance of no clearance, no noise, no oil lubrication, no maintenance and no pollution will be appeared.
Application
- It can be widely used in the light load self-lubricating applications. e.g. door grmel system and navigation shaft on the car, office equipment and joint positionson other machines.
Specifications
Mesh material | Bronze, stainless steel, carbon steel | |
Lining material | PTFE and solid lubricating material | |
Max. Load | Static | 80N/mm2 |
Dynamic | 40N/mm2 | |
Max. Speed | Dry | 1m/s |
Oil | >1m/s | |
Temp. Limit C | -195C~+260C | |
Coefficient of friction | 0.03~0.20 | |

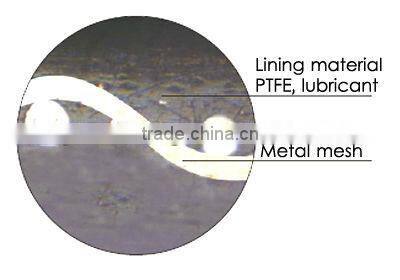

Layers sturcture of FR bearing

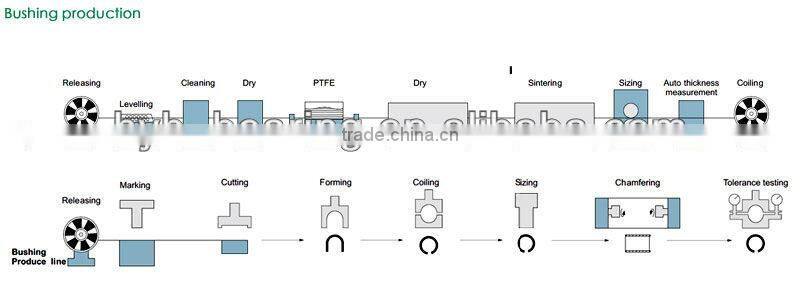

Production flow
Types of FR bearing
- Factory informtion
Admin Office
workshops
Inspection
- We are supplying full lines of slide bushings:
SF-1(du) oilless bearing bushing (PTFE Composite) |
SF-2(dx) slide bearing bushing (POM Composite) |
FB090(FB090G) bronze bushing |
FB092 bronze bushing |
JDB,JFB solid graphite lubricating bushing |
JF bi-metal bushing |
FU sintered bronze or iron bushing |
FZ POM/Al/Cu ball cage retainer |
- ISO/TS16949 certification
- Contact information
