FB09G Clutch Bush
- Shanghai Ningbo Shenshen Guangzhou
- T/T L/C D/P D/A Credit Card
You May Like
-
Taper Bore Pulleys Taper Bushing
-
Newproduct Sliding Bush Bronze Bush(FB09G)
-
Self Lubricating Bronze Bush (FB09G) Lagerbussen Brons Hydraulic Cylinder Bushing Misturador do Faucet de Bucha Bronze
-
FB09G Copper Bushing /bushing Material /copper Bush
-
Hot Sale Good Material and Long Working Life Ptfe Soft Stripe Bearing
-
Hot Sale Good Material and Long Working Life fr Ptfe Coated Bushing
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB | |
| Model Number | FB09g | Type | Sleeve | |
| Material | bronze, bronze CuPb10Sn10,CuSn6.5P |
Product Description
Specifications
FB09G clutch bushFB09g bush factory
high quality with inner/outer grind
FB09G clutch bush
We will try our best ,do everything well,and we believe we can.we are not a trade or middle man,we are just a factory who focus on customers needs.
1.Part name:FB09G bushing material
2.Material:CuSn6.5P0.1+Graphite
FB09G bushing material is based on bronze backing. The bronze is of a particular
formulation with high specific gravity, and its surface is rolled
with round or diamond-shaped indentations, and then solid lubricant
is embedded in indents.
It is of high load capacity, low friction, anti-high temperature
and high anti-wear properties. FB09G transcend traditional bronze
bushes, it is widely applied in generator of automobile, hoisting
machines, crane and other construction and metallurgy machine.
The compressive strength of the Rm 470 N/m2
Coefficient of thermal conductivity 58W/mk
Steels are 18.5 * 10 / k
Hardness 90 ~ 120 HB
Elongation A 40%
Material name CuSn8P
- Technical Data
Material | FB090 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
FB091 | Bronze(CuZn31Si) | |
FB092 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
FB094 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
Load capacity |
| 100N/mm2 |
Speed limit |
| 2m/s |
PV value limit |
| 2.8N/mm2.m/s |
Tensile Strength |
| 460N/mm2 |
Yeild Strength |
| 260N/mm2 |
Hardness |
| 90~150HB |
Mating axis required | Hardness | >=50HRC |
Roughness | Ra=0.4~1.0 | |
Friction coef |
| 0.05~0.2 |
Working temperature max. |
| 150°C |

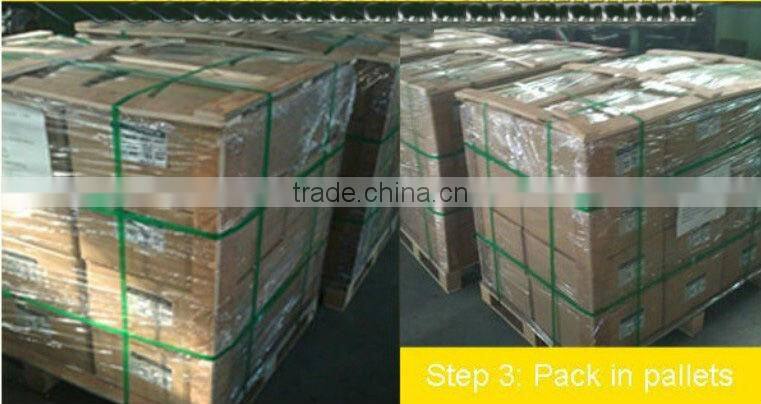

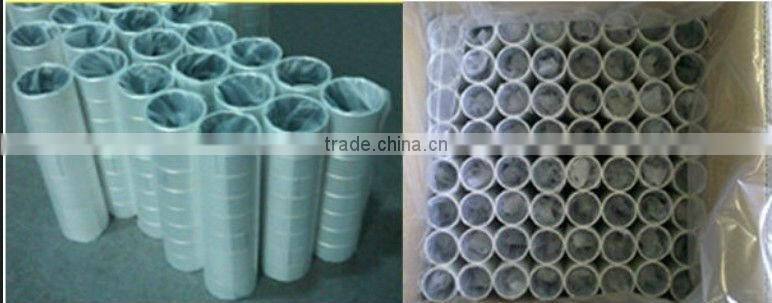

- FB09g Packaging & Delivery
FB09G
- Size list
- Typical Application
FB09G bearing is wrapped by bronze strip. The material is made of particular formulation with high specific gravity and on its surface may be incorporated with spherical or diamond Shaped indentations or oil grooves as required by customer. It is of high load capacity and Long life. It can act as substitution of traditional bronze bushing for low cost and performance of anti-higher compact. It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mining industy.
- Factory informtion
workshops
Inspection
- We are supplying full lines of slide bushings:
SF-1(du) oilless bearing bushing (PTFE Composite) |
SF-2(dx) slide bearing bushing (POM Composite) |
FB090(FB090G) bronze bushing |
FB092 bronze bushing |
JDB,JFB solid graphite lubricating bushing |
JF bi-metal bushing |
FU sintered bronze or iron bushing |
FZ POM/Al/Cu ball cage retainer |
- ISO/TS16949 certification
