Home > Products > Dryer Equipment > Wood Sawdust Rotary Dryer/wood Chips Rotary Drum Dryer

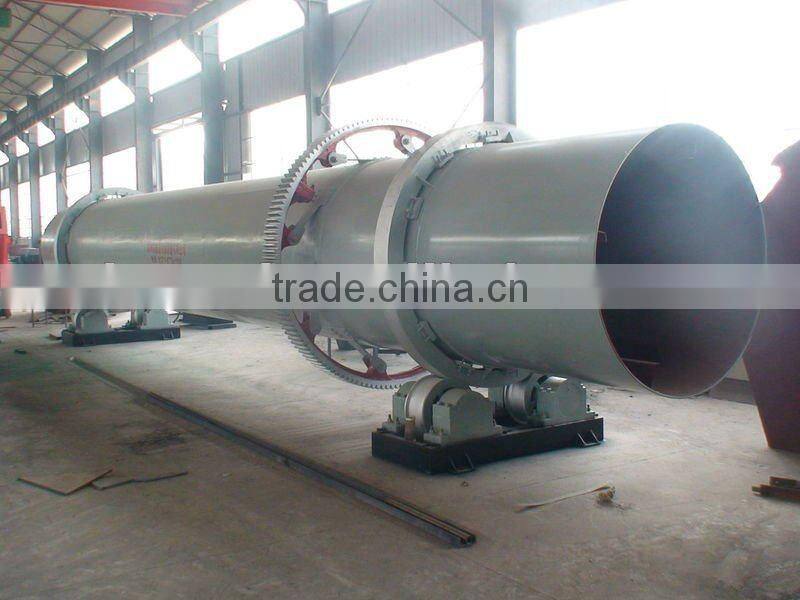

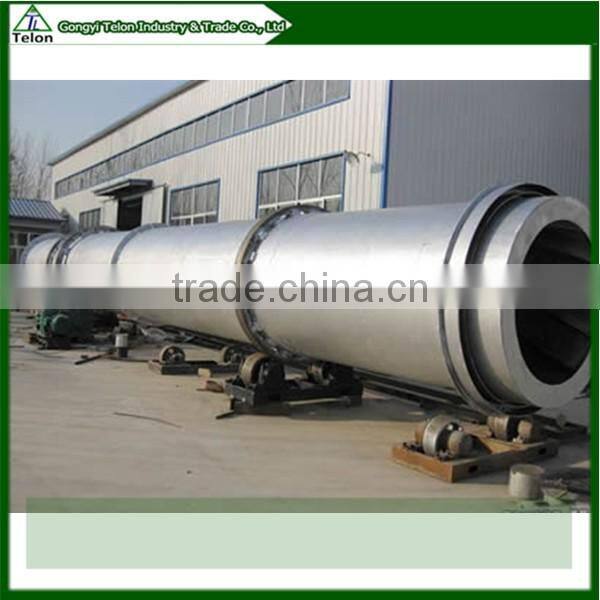

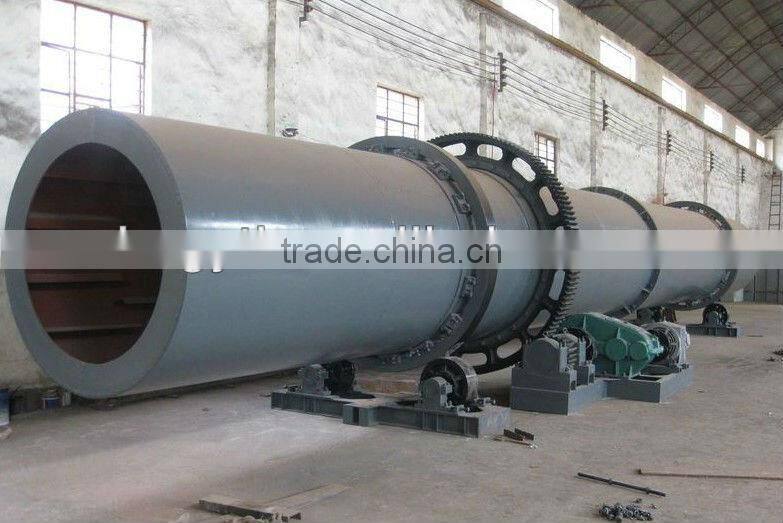

Wood Sawdust Rotary Dryer/wood Chips Rotary Drum Dryer
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
Sawdust Dryer Machine for Sale/wood Chips Rotary Drum Dryer
-
Coal Rotary Dryer/pellet Dryer /rotary Drum Dryer for Sale
-
Rotary Drum Dryer Machine /rotary Dryer Price/drum Dryer Rotary Dryer
-
Most Used Hot Sale Rotary Drum Dryer
-
Rotary Drum Dryer for Fertilizers /biomass Rotary Dryerfor Sale
-
Factory Direct Sell Drum Dryer Rotary Dryer/biomass Dryer
Product Details
| Condition | New | Type | Rotary Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | Telon | |
| Model Number | TL-1000*10000 | Voltage | 380V | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 1000*10000mm | |
| Weight | 7.9ton | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction:
slag drier is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube,The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under .
Rotary Drum Dryer Structure:
Rotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Working principle :
Rotary dryers consist of a horizontally inclined rotating cylinder. Material is fed at one end and discharged at the other end. In direct-type rotary dryers, hot gases move through the cylinder in direct contact with the material, either with or against the direction of its flow. The cylinder is equipped with flights, which lift the material and shower it down through the hot gas stream.
Parameter
Type(mm) | Indiclination (%) | Rotation speed (r/min) | Input temperature (ºC) | Motor power (kw) | Output (t/h) | Weight (t) |
Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.0-2.3 | 7.9 |
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
