Q500S Concrete Cutting Asphalt Cutting Floor Saw
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | W&H concrete cutting asphalt cutting floor saw | Model Number | Q500S concrete cutting asphalt cutting floor saw | |
| Cutting Depth | 18cm | Diameter of Blade | 40-50cm | |
| Rotary Speed | 3600rpm | Voltage | none | |
| Power(W) | 13.0hp | Weight | 122kg | |
| Dimension(L*W*H) | 95*58.5*108 | Certification | CE/ISO/EP/SGS/BV | |
| Power Source | Gasoline | Running Speed | Manual Push | |
| After-sales Service Provided | No overseas service provided |
Product Description

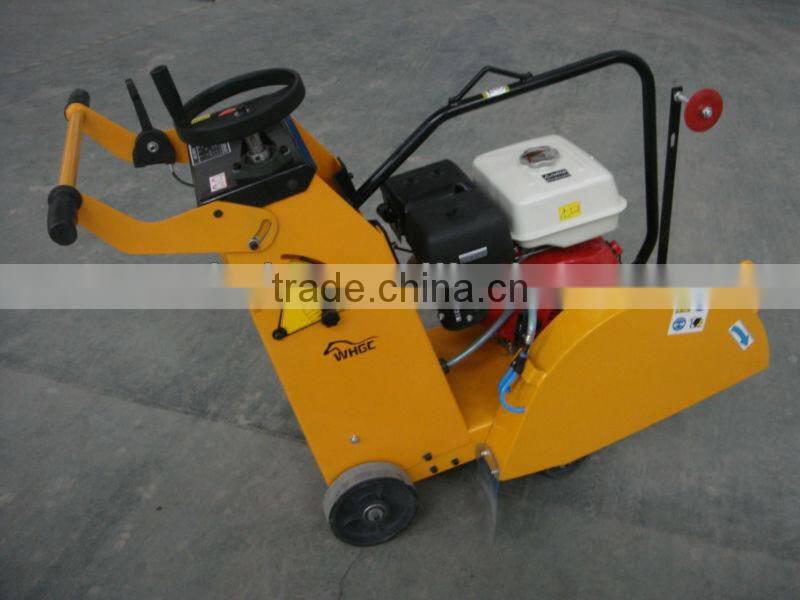

Q500S Concrete Cutting Asphalt Cutting Floor Saw
Features of Concrete Cutting Asphalt Cutting Floor Saw :
1. Smooth cutting and directional stability is achieved due to the optimum position of the machines center of gravity.
2. Ergonomically designed, height adjustable handles with comfortable grips.
3. Hinged front, lift-up blade guard is designed to provide easy blade replacement.
4. Rustless water tank provides an optimum flow and volume of water to the blade.

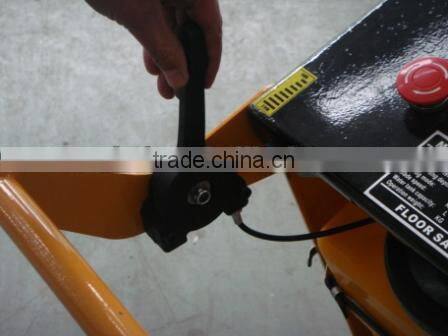

5. The elevation equipment is manually locked which will make the depth of edge consistent.
6. Throttle control as standard part.
Specification of Concrete Cutting Asphalt Cutting Floor Saw :
Model | WH-Q450H | WH-Q450R | WH-Q450D | WH-Q500H | WH-Q500D | |
Engine type | Air-cooled, single cylinder,4-stroke | |||||
Engine | Honda GX390 | Robin EY28 | Diesel, WH186F | Honda GX390 | Diesel, WH186F | |
Power(Hp) | 13.0 | 7.5 | 9.0 | 13.0 | 9.0 | |
Operation Weight (kg) | 140 | |||||
Max, cutting depth(cm) | 16 | 18 | ||||
Driving mode | Manual push | |||||
Water tank capacity(L) | 30 |
| ||||
Blade Size (cm) | 40.0-45.0 | 50.0 | ||||
Package size(L*W*H)(cm) | 98*64*110 | 93*61*120 | ||||
