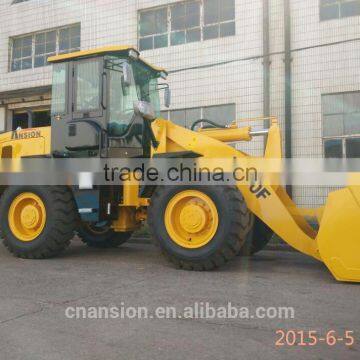

Used loaders dubai ZL30G with 1.5 m3 bucket and 92kW diesel engine

FOB Price

USD $10,000 - $16,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	ZL30G	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	6000 x 2430 x 3070 mm	Rated Load	3000 kg
Certification	ISO9001	Warranty	12 months
After-sales Service Provided	No overseas service provided

Specifications

Performance	1	rated loading	3000kg
	2	overall weight	6400kg
	3	rated bucket capacity	1.5
	4	maximum tractive force	64KN
	5	maximum breakout force	65KN
	6	maximum grade ability	30℃
	7	maximum dump height	3100mm
	8	maximum dump reach	1006mm
	9	overall dimension (L×W×H)	6000×2430×3070mm
	10	minimum turning radius	5097mm
Engine	11	model	Deutz WP6G125E22
	12	type	lnline water cooled, four stroke
	13	No. of cylinder-bore/stroke	6—108×125mm
	14	rated power	92kw
	15	maximum torque	500N.m
	16	min fuel-consume ratio	≤210g/kw.h
Transmission system	17	torque converter	YJ315—x
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	4forward shift 2 reverse shift
	20	maximum speed	40km/h
Drive axles	21	main reducing mode	Bevel gear grade lreduction
	22	decelerating mode	Bevel gear grade lreduction
	23	wheel base (mm)	2660mm
	24	wheel tread	1800mm
	25	ground clearance	400mm
Hydraulic system	26	system working pressure	16.5MPa
	27	boom lifting time	4.83s
	28	total time	9.15s±0.5s
	29	fuel tank capacity	156L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
Brake system	32	parking brake	Manual disk brake
Tyre	33	type specification	17.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
