SAM388 3CX backhoe loader dubai original manufacturer with deutz engine and carraro electric transmission

FOB Price

USD $33,000 - $39,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	WZ30-25	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	6150x2250x3763 mm	Rated Load	2500 kg
Certification	ISO9001	Warranty	12 months
After-sales Service Provided	No overseas service provided

Hydraulic 4x4 backhoe loader

Main Specification

1. Front 1.0m3 general purpose bucket for 2.5 tons rated load capacity

2. Rear 0.3m3 general purpose bucket for 4082 mm digging depth

3. DEUTZ diesel engine

4. CARRARO transmission (Italy origin) with electric control joystick and 4x4 driving type

5. 8.2 ton operating weight

6. Cab with air conditioner

7. Hydraulic pilot joystick control

8. Front 14-17.5 and rear 19.5L-24 tyres

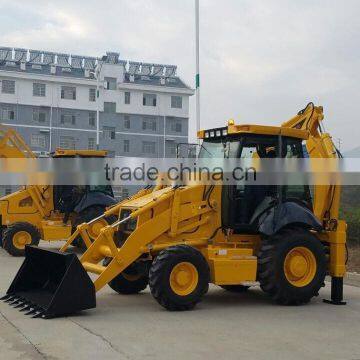

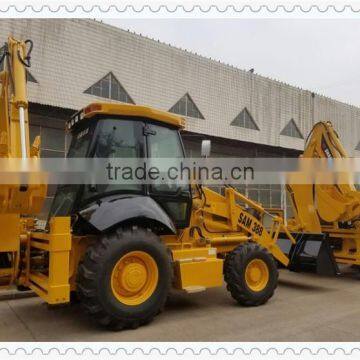

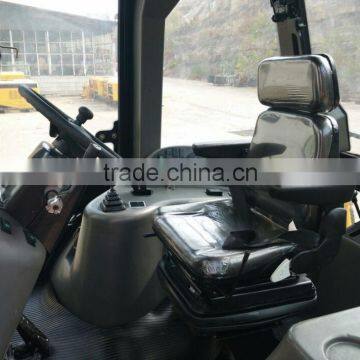

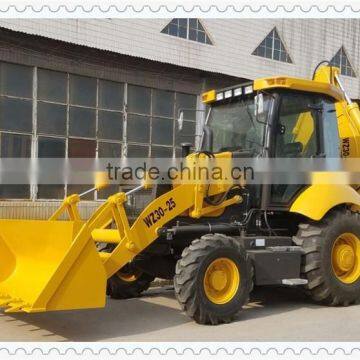

Real Picutres Show

Special Attachments

Technical Data

Standard Technical Specification

Model		wz30-25
Front Loader	Rated load	2500 kg
	Bucket capacity	1.0 m3
	Working device	Quick hitch, pallet fork, wood grapple, dozer blade, 4-in-1 multifunction bucket, road sweeper, snow blower
	Dumping height	2740 mm
	Bucket auto leveling system	Yes
	Breakout force	38 kN
	Total cycling time	11.9 s
Rear Backhoe	Bucket capcity	0.3 m3
	Working device	Quick hitch, hydraulic breaking hammer, auger driller, special bucket
	Bucket digging force	46.5 kN
	Rod digging force	31 kN
	Max. digging depth	4082 mm
Overall performance	Overall dimension	5920 x 2250 x 3770 mm
	Operating weight	8200 kg
	Operating type	Pilot control
Engine	Engine model	cummins
	Type	Turbocharged, water cooled, 4 cylinders
	Rated power	74kW
Steering system	Steering	Articulating hydraulic
Steering system	Turning radius	5516 mm
Transmission	Gear box	CARRARO electric cotnrol transmission
	Gear shift	Forward 4 and reverse 4
	Axles	CARRARO 4x4 driving axles
	Service Brake	Air over hydraulic caliper
	Parking brake	manual
	Tyre	Front 14-17.5 and rear 19.5L-24
	Max.travel speed	28 km/h
	Tractive Force	39 kN
