AS500 4WD 50HP mini articulated backhoe loader used A/C

FOB Price

USD $13,500 - $15,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	AS500	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	510019802900 mm	Rated Load	1600 kg
Certification	ISO9001	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

ANSION 4WD 5TON Backhoe Loader AS500 (Single joystick pilot control)

Main Specification

Total Length		mm	5100
Total Height		mm	2900
Total Width		mm	1960
Total Operating Weight		kg	5400
Backhoe Parameter	Rated Backhoe Bucket Capacity	m3	0.2
	Max. Digging Depth	mm	3400
	Max. Digging Height	mm	5000
	Max. Digging Radius	mm	4600
	Turning Angle of Movable Arm	°	180
Loading Parameter	Rise Height	mm	3700
	Discharge Height	mm	2700
	Min. Turning Radius	mm	4800
	Discharge Distance	mm	1000
	Rated bucket capacity	M3	0.8
	Rated Loading Weight	kg	1600
	Rise Time of Movable Arm	s	3.5
	Fall Time of Movable Arm	s	2.5
	Comprehensive Time	s	7
Engine Model		Xinchai
Rated Power of Engine		KW	36.8
Work Pressure		Mpa	16~18
Max. Grade Ability		%	25
Walking Speed		km/h	18~28
Min. Ground Clearance		mm	260
Wheel Base		mm	2000
Tread		mm	1530
Tire model		mm	20.5-16

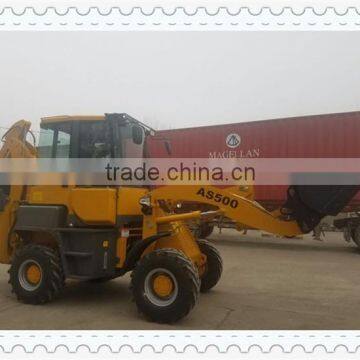

Real Picutres Show
