Home > Products > Backhoe Loader > backhoe loader with price 7.9ton 1.5CBM 0.3CBM 83kW AC Pilot joystick

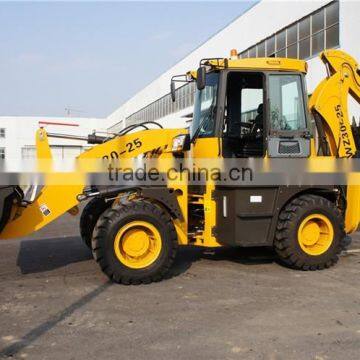

backhoe loader with price 7.9ton 1.5CBM 0.3CBM 83kW AC Pilot joystick

FOB Price

US$ 25,500 - 25,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	AB790	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	714523003355 mm	Rated Load	2500 kg
Certification	CE	Warranty	12 months
After-sales Service Provided	Overseas third-party support available

ANSION 4x4 backhoe loader AS790

Main Features

1) 1.5 m3 large loading bucket with 3500 mm dumping height

2) 0.3 m3 excavatoring bucket with 4000 mm digging depth (5000 mm is optional with telescopic boom)

3) CUMMINS 75kW diesel engine or YUCHAI 83 kW diesel engine

4) 4x4 driving axles with large tractive force

5) Cabin with air conditioner and pilot joystick control

6) Standard with quick coupler for All kinds of attachments such as fork, grapple, snow blade , hammer etc.

Main Specification

Backhoe loader	WZ30-25 (AS790)
Overall dimension (LWH)	7145 * 2300 * 3355 mm
Total weight	7900 kg
Backhoe performance
Digging bucket capacity	0.3 m3
Max. Digging depth	4016 mm
Max. Digging height	5330 mm
Max. Digging radius	5140 mm
Boom rotary angle	190°
Loader performance
Loading bucket capacity	1.3 - 1.5 m3
Max. Lifting height	4950 mm
Max. Dump height	3500 mm
Max. Dump distance	1105 mm
Rated load capacity	2500 kg
Boom lifting time	3.5 s
Boom falling time	2.5 s
Total cycling time	7 s
Engine
Model	YUCHAI 4105 (Turbocharged) CUMMINS 4BT3.9-C100
Rated power	85 kW
Max. Flow	63 m/r
Working pressure	18~20 MPa
Transmission
Grade ability	30%
Turning radius	5200 mm
Gear shift	Forward 4 and reverse 4 (with mechanical high/low speed)
Travel speed	38 km/h
Min. Ground clearance	320 mm
Tire	16/70-20

Pictures in detail

Attachments
