Original Manufacturer WZ45-16 Bucket Backhoe With Hydraulic Pilot Joystick

FOB Price

US$ 1 - 15,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ANSION
Model Number	WZ45-16	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	510019802900 mm	Rated Load	1600 kg
Certification	ISO9001	Warranty	12 months
After-sales Service Provided	No overseas service provided

ANSION 4x4 backhoe loader WZ45-16

Main Specification

MACHINERY	BACKHOE LOADER
MODEL	WZ45-16
LOADER CAPACITY
Bucket capacity	0.8 m3
Quick hitch	Standard
Rated load	1600 kg
Max. Dump height	2700 mm
Max. Dump reach	1000 mm
Boom lifting time	3.5 s
Total cycling time	7 s
BACKHOE CAPACITY
Bucket capacity	0.2 m3
Max. Digging depth	3400 mm
Max. Digging height	5000 mm
Max. Digging radius	4600 mm
Outrigger	Center pivot
ENGINE
Model	XINCHAI 498
Rated power	45 kW (60HP)
TRANSMISSION
Transmission	Countershaft Power shift
Axles	4x4 ( 4-wheel-driving )
Tires	20.5-16
Max. Travel speed	28 km/h
OVERALL PARAMETERS
Overall dimension	510019802900 mm
Operating weight	5000 kg
Min. Turning radius	4800 mm
Wheel base	2000 mm
Wheel tread	1530 mm
Min. Ground clearance	260 mm
Max. Grade ability	25%
Max. Working pressure	16~18 MPa
Air conditioner	Standard
Operation type	Hydrulic pilot joystick control

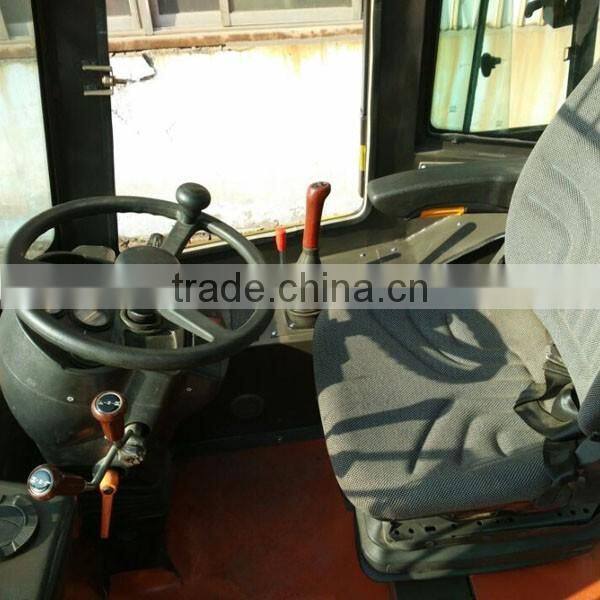

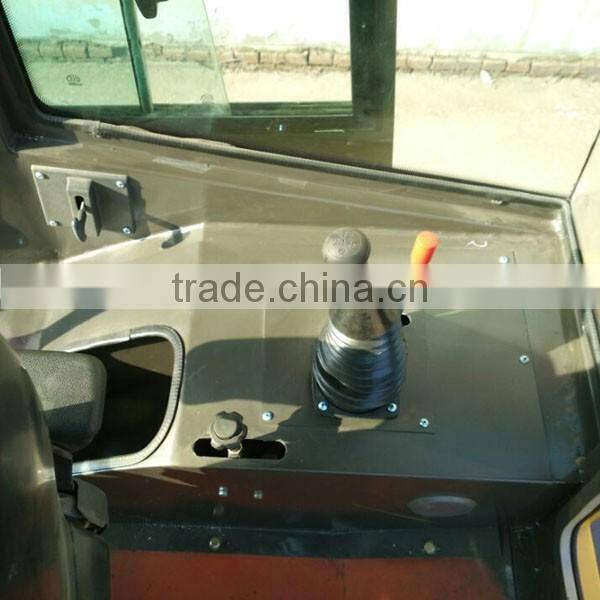

Real Picutres Show
