Qingzhou Ansion Machinery Co., Ltd.: Weifang, Shandong, China; Main products: wheel loader, backhoe loader, diesel forklift, mini loader, mini excavator

Home > Products > Backhoe Loader > Ansion Backhoe Loader WZ30-25 Same Model AX790 With Pilot Control for Exporting

Ansion Backhoe Loader WZ30-25 Same Model AX790 With Pilot Control for Exporting

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	ansion
Model Number	WZ30-25	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	792020502980mm	Rated Load	2000kg
Certification	CE ISO	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

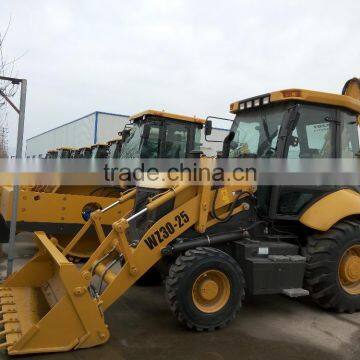

ANSION AX790/WZ30-25 4x4 backhoe loader with driller auger

Condition : 2017 New

Brand : Ansion

Origin : Qingzhou , China

Specifications : 75KW YUCHAI engine ;cummins engine

Powershift transmission ;

Hydraulic pilot control operation ; Sideshift / Pivot-center leg ;

1.0 m3 front loading bucket ; Backhoe with driller ;

Hydraulic steering system ; 4x4 driving type ;

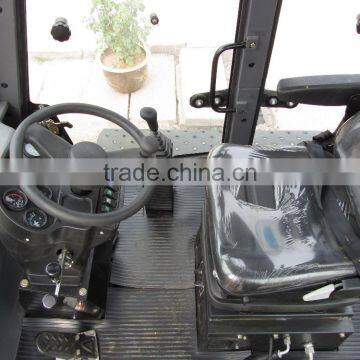

Standard all-view cab ;

Specifications

ANSION 4x4 Backhoe Loader	WZ30-25
Operating weight	7600 kg
Overall dimension	5910x2268x3760 mm
Operation	Hydraulic pilot joystick
Steering system	Articulated hydraulic
Min. Turning radius	5018 mm
Load performance
Rated load	2500 kg
Bucket capacity	1.0 m3
Max. Dump height	2740 mm
Bucket auto level system	Yes
Breakout force	38 kN
Total cycling time	10.5 s
Backhoe performance
Bucket capacity	0.3 m3
Bucket digging force	46.5 kN
Rod digging force	31 kN
Max. Digging depth	4082 mm / 4500mm / 5500 mm
Engine
Model	YTO / YUCHAI / CUMMINS
Type	Turbocharged, water cooled, 4 cylinders
Rated power	75kW (100HP)
Transmission
Gearbox	Countershaft powershift
Gear shift	Forward 2 and reverse 2
Axles	4-wheel-driving (4x4)
Service brake	Air over hydraulic caliper
Parking brake	Manual

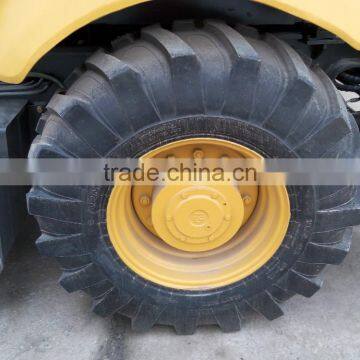

Tyres	16/70-20
Max. Travel speed	22 km/h
Tractive force	39 kN

Options
