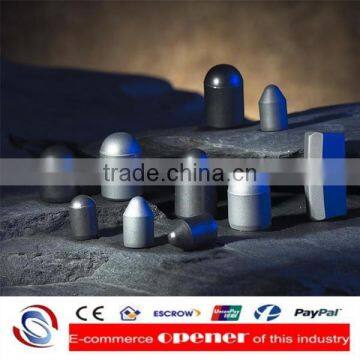

cemented tungsten carbide idler tooth-like bit ball tooth shape rock mine industry china factory

YG4C  15.0~15.2(density g/cm3) 90.0(Hardness HRA)  1700(Bending strength>=N/m3)

 suitable for geological prospecting ,coal excavating and being embedded in electrical drill and pneumatic drill.Also suitable  for

 sandstone of medium hardness,limestone and rock of alternative hardness between soft and hard.

YG8C   14.6~1.8(g/cm3)   88.5(HRA)   2300(N/cm3)

    suitable for impacting rotary rock drilling tools for drilling hard and medium-hard rocks.also for coal-cutting bits and oil drilling bits.

YG9C    14.5~14.7  88.1   2500

  suitable to be used as drilling bits or buttons for impacting rotary drilling tools and buttons for deep-hole drilling tools to drill

  soft rock to medium-hard rock.

YG10C 14.4~14.6   87.7 2600

   suitable to be used as drilling bits or buttons for impacting rotary drilling tools and buttons for deep-hole drilling tools to drill

   medium-hard rock to hard rock.

YG11C 14.2~14.4  87.0   2600

  suitable to be used as pillar buttons and to be embedded in cog drilling tools or impacting drilling toools to drill hard rocks.

YG13C 14.1~14.3 86.7 2800

  suitable to be used for cog drilling tools in oil industry to drill hard and medium-hard rocks.

YG15C 13.9~14.1 85.7 2700

  suitable to be used for cog drilling tools  in oil industry  to drill hard and medium-hard rocks.

YG16C 13.8~14.0 85.7 2600

  suitable to be used for cog drilling tools in oil industry to drill hard and medium-hard rocks.Cemented carbide buttons

  for oil-field drill bits

Our Service

1.  We not only provide standard parts but also OEM service.

      Please feel free to connect us all the time 24/7.

2. Our experienced technican and enthusiastic service will keep you free from worry.

3. The completely production line from raw material to delivery,all links are

     under our control.

Our advantages:

  1. Made from 100% virgin raw material.

  2. Products with advanced equipment and perfect workmanship.

  3. All products go through in-process and final inspection.

  4. Stable and continuous production ability.

  5. We produce tungsten carbide plate in various size,grades and surface

      conditions.the product can also be customized by customer's design.

  6. All products must be inspected strictly and only those with out any

       harm can be shipped out.

  7. We located in  Chengdu International Airport(less than 0.5 hour'sdrive),

     so it will be very convenient for our overseas customers' on-site

     visit if requred,which also guaranteed our delivery on time.

   8. Our fine manufacturing management and  professionals make sure we

       can provide you with more competitive high cost-performance product.

A.The blanks of inserts are divided into the following 2 categories:

      (1)insert blank with holes

      (2)insert blank without holes

B.The inserts blanks are indicated with the following destinations:

      (1)The code for indexable inserts blanks with holes consists of type,basic parameter and chipbreakers.

       a:Type

       b:Inscribed circle diameter

       c:Edge radius

      d:Chipbreakers

        e:Feeding direction

     (2)The code for indexable inserts blanks without holes consists of  type and basic parameter

          a:Product type

           b:type

         c:inscribed circle diameter

          d:edge radius

         e:Clearance angle

       (3)the thickness of indexable inserts blanks

The thickness of insert blanks with holes as per Table 1

the thickness of indexable inserts without holes as per Table 2

       (4)The diameter of inner holes of indexable blanks as per Table 3

C  Code key for ground milling inserts

The code for ground milling inserts consists of the code for type,code for milling inserts(incuding code

for the clearance angle of the cutting edge) and the ic code.

when necessary ,Z or Y is addded to represent left hand or right hand inserts.

     example:

      3 x H 10 z

 3:Code for equilateral triangle

 x:Code for milling inserts

 H:Code for the clearance angle

 10:IC 10mm

 z:Left hand insert.

 The surface of the grounded inserts shall be 1.25 microns minimum.

 The tolerance of the inner hole (fixation hole)of the blanks is +/-0.13mm

 The tolerance of the clearnace angle is <=1°

 A concave of 0.1mm is allowed on the bosom of the insert blank.

 The chip on the cutting edge should be no more than 0.2mm and 0.3mm is allowed in the other places.

 No lump material should stick to the cutting edge of the blanks and a light adhesion is allowed in other places.

          Chengdu Santon cemented carbide Co.,Ltd is a professional private company,which consists of

   producing,selling,  and  developing  of   non  ferrous   metal   materials   such  as  cemented  carbide

   and   tungsten   and   molybdenum   products.  Santon  has  a  crowd  of  professional   and

  experienced  personnel , advanced  production  equipments  and quality monitoring

  methods.By employing the latest modern technology,Santon can satisfy customers'

  demands  of  high  cost-performance cemented  carbide and tungsten&molybdenum

  products.

           Santon has strong independent developing ,designing and producing capabilities.Compare with

  the other companies in the same field in China,Santon is the first company which has been given the

  certificate of  Qualified  Management  System  ISO9001  by  UKAS Attestation Company.

  Santon  is  able to  provide  high technical  and high  quality  before  and after sale

  services. There are  various  high performance cemented carbide products under the

  brand 'Santon' ,which includes special inserts ,brazed tips ,cutting tools; also non-standard  cemented

  carbide  materials  and  components  which can  be designed according to customers'

  requirements. We have  earned  high reputation  from  customers both at home and

  aboard by using our good pristige,fine quality and enthusiastic service.

           Santon holds the spirit of 'standing high  and aim fair , marking unremitting  efforts' and the quality

  policy  of 'to  live  on quality , to  lead the  technology , to improve continually, to satisfy  the  customers'.

  On the other hand, we  try  hard  to create  value for  society , to increase value for clients and to realize

  value  for  staff . By  using  diligence  and  wisdom , we  are promoting sustainable  development of our

  enterprise in order to create a magnificant future.

          Our Company has established complete  QA  system;  we  can  provide  not  only  all kinds of high

quality standard cemented carbide products such as machine-clamped inserts,brazing inserts  and high

accuracy coated inserts for clients who are engaged in machining of  ferrous metals ,non-ferrous  metals

and  non-metals  ;  but  also  various  non-standard  cutting  tools  and  hard  wearing  parts  according  to

customers' requirement . We can produce not only extensive  used  cemented  carbide  materials  like  P

type,M type and k type,but also new types to satisfy users special needs.

           Welcome to use 'Santon' brand products

           Welcome to distribute or sell 'Santon' brand products on commision basis.

           Welcome to  contact us.

  1.  How long have your company been in this field?

     We devoted in manufacturing and R&D of tungsten carbide insert and

     other mechanical parts for more than 7 years.

  2. Can I investigate the factory on site?

     Yes,of course.It's our honour to service for you all the time.

  3. How can I pay for my order?

     We recommend L/C or T/T,other payment ways are also available.

  4. Can I get samples on trial?

     Yes,trial order for checking is available.

  5. Can we get a discount if the quantity is big enough?

     Of course,your large enough order can get best price .
