Product Details
| Place of Origin | Guangdong, China | Brand Name | Correa | |
| Model Number | CS-H2 |
Product Description

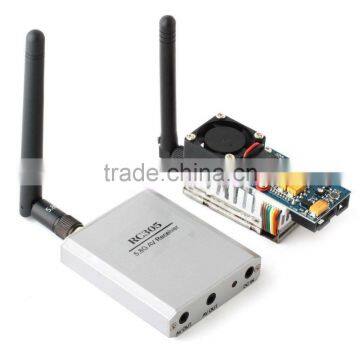

5.8 GHz 2W 8CH Wireless Video Transmitter 5.8G FPV TX RX 2000mW
5.8GHz 2000mW Wireless AV Transmitter:
Transmitter Frequency / Channel Amount:5705-5945MHz / 8CH
Output Power:2000mW/33dBm
Transmission Distance: Min. 8KM line of sight
Frequency Control:Built-in frequency & phase lock loop
AV input:bAnalog AV signal input
ANT connector:SMA (needle inside)
Power Supply: DC 7-12 volts
Current Supply:1500mA
Size: 68*26*28mm
Net weight:70g
Gross weight:85g
5.8GHz Wireless AV Receiver
Receiving Frequency:5705-5945MHz / 8CH
Receiving Sensitivity:-90dBm
Frequency Control:Built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA(needle inside)
Power supply voltage:DC 7-12V
Supply current: 150mA
Dimension: 61*52*13mm
Gross weight:120g
Output Power:2000mW/33dBm
Transmission Distance: Min. 8KM line of sight
Frequency Control:Built-in frequency & phase lock loop
AV input:bAnalog AV signal input
ANT connector:SMA (needle inside)
Power Supply: DC 7-12 volts
Current Supply:1500mA
Size: 68*26*28mm
Net weight:70g
Gross weight:85g
5.8GHz Wireless AV Receiver
Receiving Frequency:5705-5945MHz / 8CH
Receiving Sensitivity:-90dBm
Frequency Control:Built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA(needle inside)
Power supply voltage:DC 7-12V
Supply current: 150mA
Dimension: 61*52*13mm
Gross weight:120g
Performance Testing:
