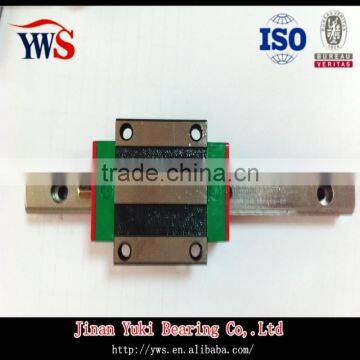

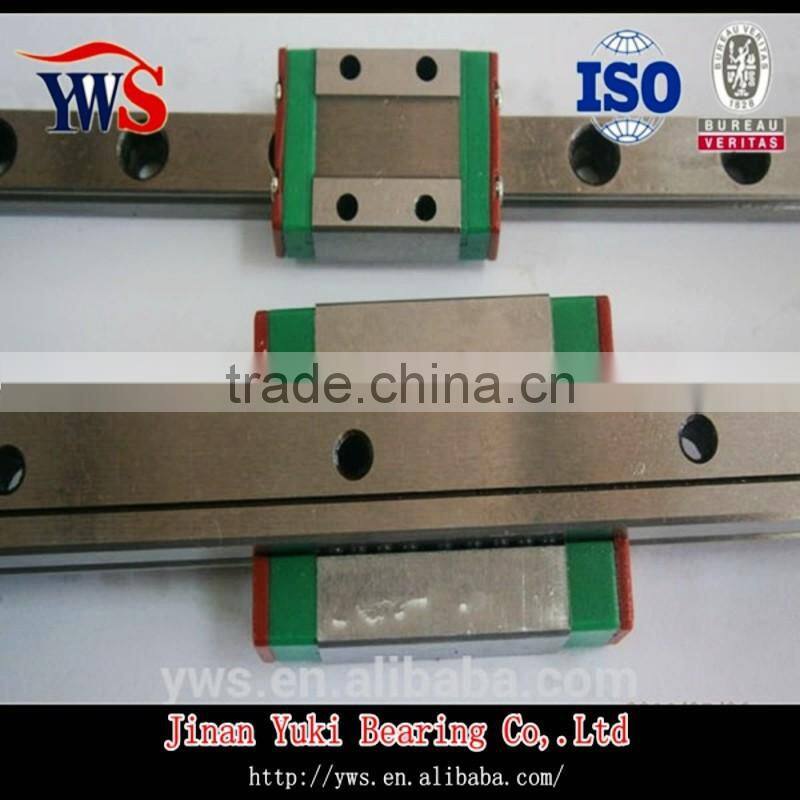

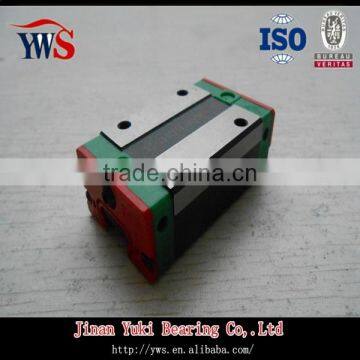

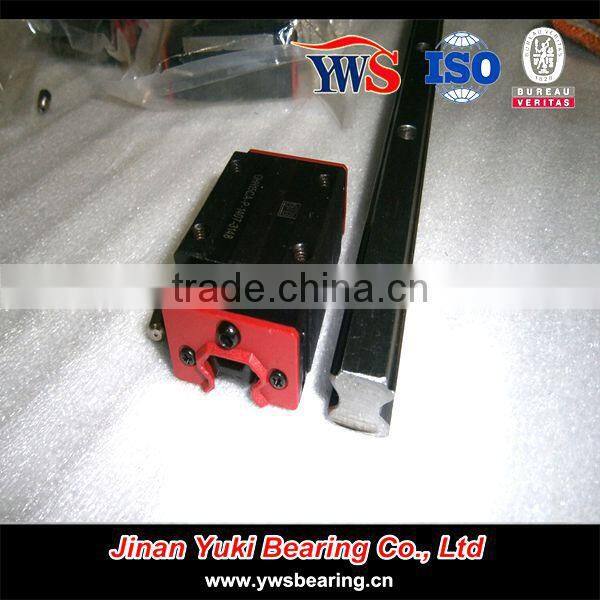

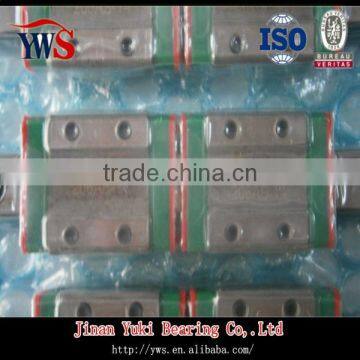

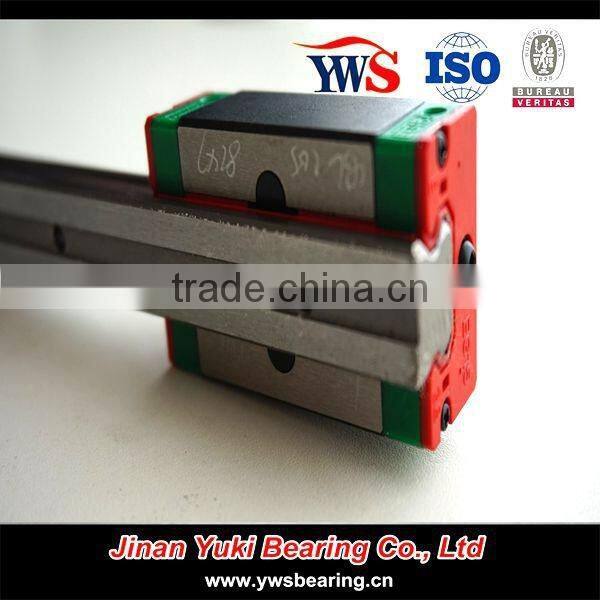

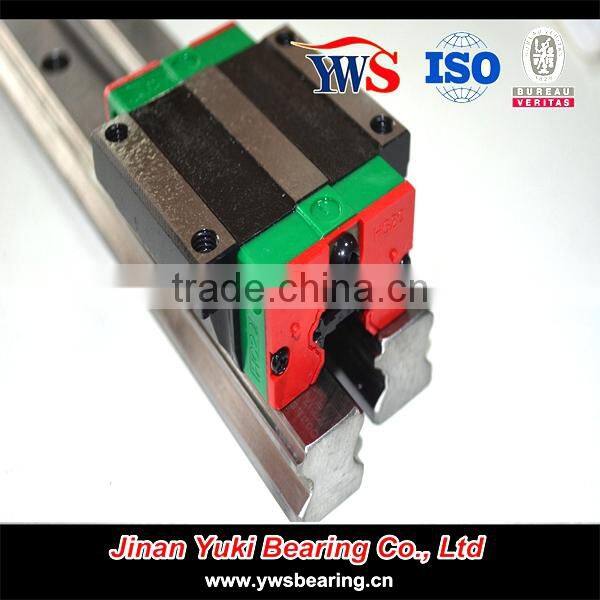

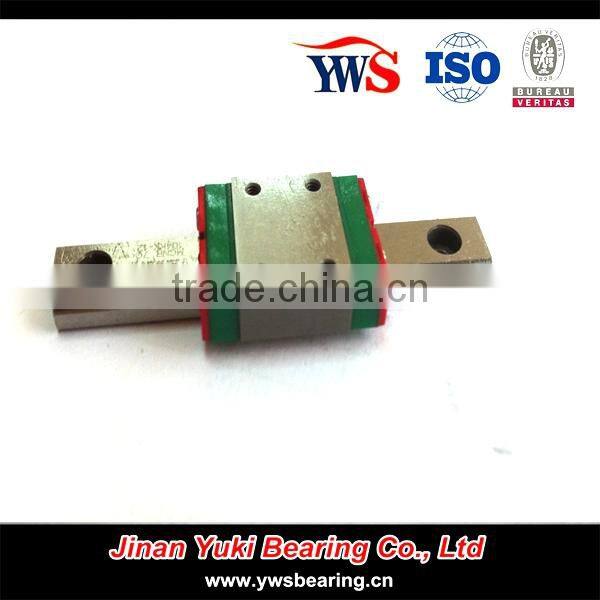

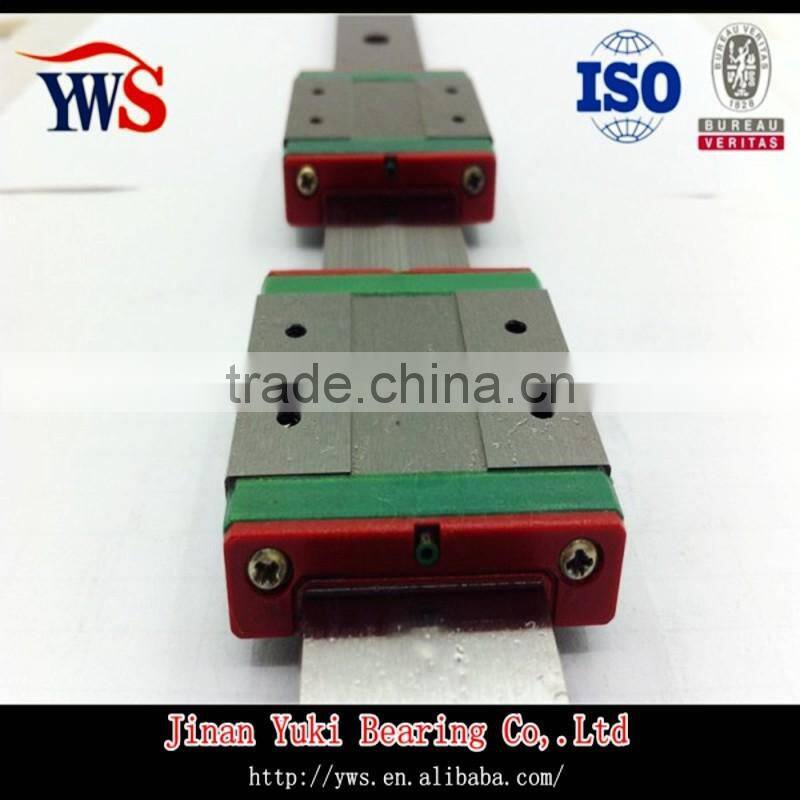

linear guide rail and block MGW12

Specification

1.brand:YWS or OEM

2.material:Gcr15 steel or 45#steel

3.hardness :58-65

4.precision:g6-g5

5.roughness:Ra0.4-0.8

6.hard belt depth:2mm-3mm

7.length:according to your requirement

8.roundness:does not surpass 0.003mm

9.straightness accuracy:100microns 200microns 300microns and deends on requirement

10.length deends on requirement

11.end machining and can make hole like M4 M6 M8...

MGN guide and block bearing,please Click the next picture:

HGR guide & HGH block (taiwan) ,pls Click the next picture:

HGR guide & HGW block (taiwan) ,pls Click the next picture:

MGR guide & HGH block (OWN) ,pls Click the next picture:

 Packing

MGN

1. small volume, lightweight, especially suitable for smaller and smaller devices use.

2. the slider, guide material provide stainless steel and alloy steel two kinds. Stainless steel material is qualitative linear guide, contains the slider, guides and other metal parts, such as steel and keep machines etc, all use stainless steel material, have the characteristics of rust.

3. adopt goeth type four-point contact design, can withstand the direction load, have strong rigidity, high precision characteristics.

4. the design of steel, in keeping with interchangeability allowed precision.

MGW (wide)

1. widened guide design, considerably increase torque load ability, can uniaxial use.

2. gothic type four-point contact design, can withstand various direction load and has the characteristics of high rigidity.

3.  the slider equipped with small small-sized keep steel wire, steel slide block also won't take off.

4. guide, the slider and all metal fittings all adopt stainless steel material, with corrosion resistant properties.

Application:

1. semiconductor manufacturing equipment

2. printed circuit board IC assembly equipment

3. medical equipment

4. the robotic arm

5. precision measuring instruments

6. office automation equipment

7. other small linear slide device

Tips for ordering linear guide and linear guide blocks:

(1) Tell us the width of linear guide: e.g. 9mm

(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGH15CA and etc.

(3) What is the linear guide length you need, and how many guide blocks in one linear guide, pls? E.g. M

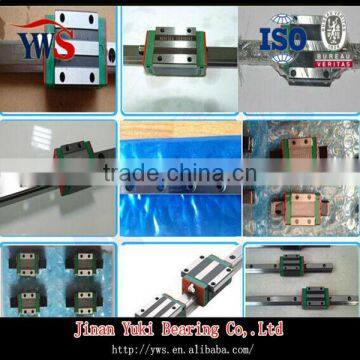

Linear guide rail and assorted linear guide blocks reference:

Are you interested in these products? If so,pls send inquiry to me. :)
