8mm Linear Shaft Support SH8A SK8
- Qingdao / Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Yuki bearing/YWS | Precision Rating | P0 P6 P5 | |
| Model Number | SH8A SK8 | Place of Origin | Shandong, China |
Product Description

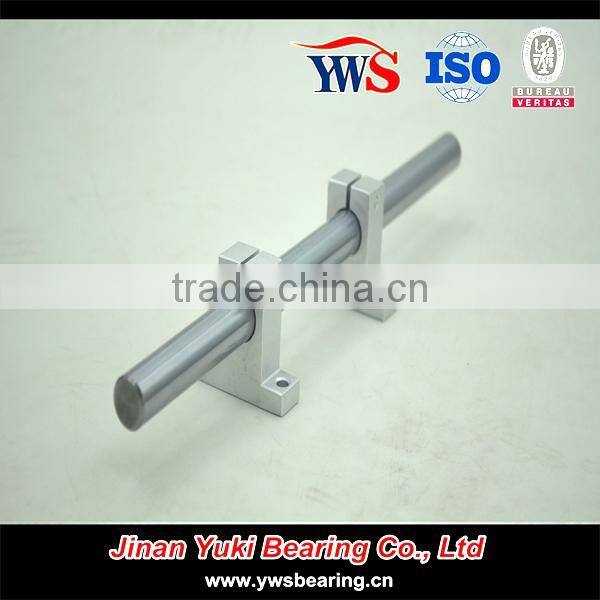

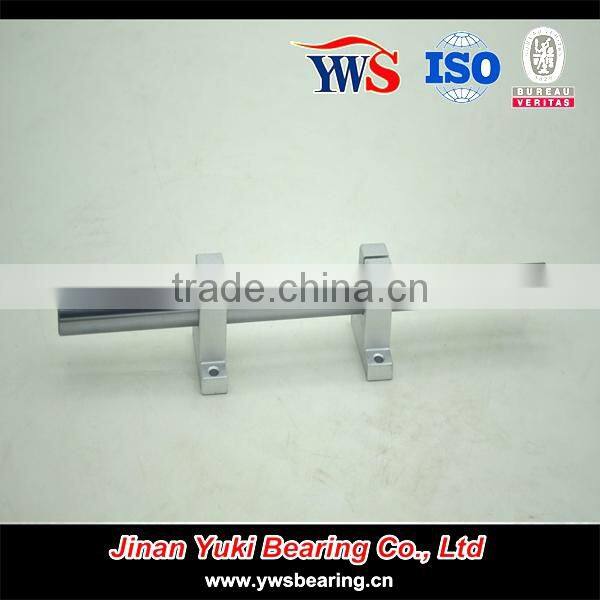

8mm linear shaft support SH8A SK8

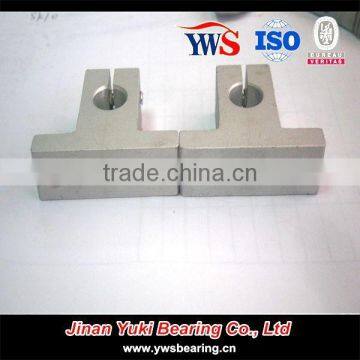

if you need SK8 SH8 rod support,pls click the next picture:

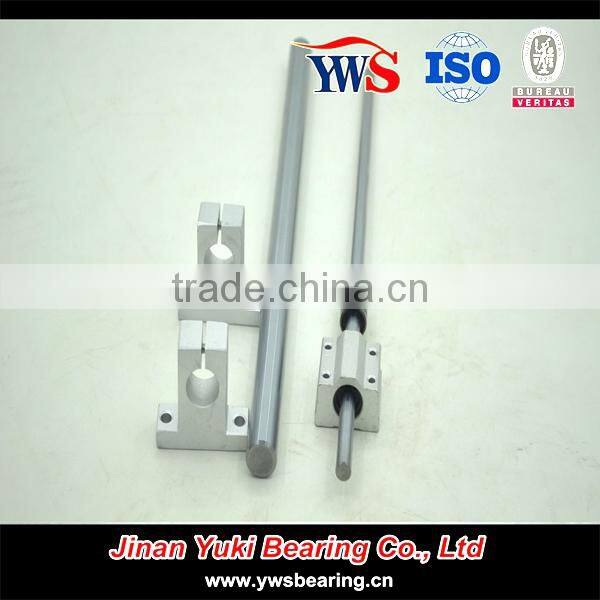

8mm rod and bearings,pls click the next picture:

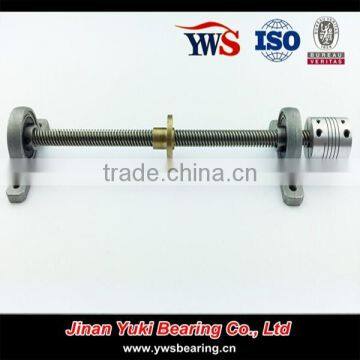

if you need the 8mm 10 screw,please click the next picture:
if you need GT2 T2.5 T5 belt and pulley,pls click the picture:
Specification
1.brand:YWS or OEM
2.material: Gr15 chrome steel and 45# steel
3.hardness :58-65
4.precision:g6-g5
5.roughness:Ra0.4-0.8
6.hard belt depth:2mm-3mm
7.length:according to your requirement
8.roundness:does not surpass 0.003mm
9.straightness accuracy:100microns 200microns 300microns and deends on requirement
10.length deends on requirement
11.end machining and can make hole like M4 M6 M8...
linear bearing introduction
1). Metal linear bearing and Plastic linear bearing
2). Standard, Clearance SetUp Coordinatelinear bearing, Open mouth linear bearing , The stretched linear bearing ,
General linear bearing.
3). Flange linear bearing can be divided into: round flange type, method, elliptical flange, round flange type, guidance method orchid type, orientation ellipse flange type, extended type circular flange .
4). LM and LME series. Its code LM series used in Asia, southeast Asia, Japan, South Korea, China, etc. Metric size as standard, with the straight axis diameter tolerance is usually h7. LME series is much used in Europe, the United States, Germany, Italy and other regions. Inch size as standard and metric size, with the straight axis diameter tolerance is usually g6. Two big series structure features, in addition to the different size, diameter tolerance is different, its structure is roughly the same.
Plastic linear bearing can be divided into two major series with LIN -12 and LIN - 11 series, its code name LIN - 11 is the representative of a European standard plastic linear bearing, and LIN - 12 series is narrow type design, mainly in order to save installation space and design; Distinguishes between two major series, LIN - 11 series is using circlip limit installation, and LIN - 12 series is directly mounted with its diameter and installing seat hole tight fit.
linear bearing specification
LM linear bearing: LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU, LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU |
LME linear bearing: LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU |
LMB linear bearing: LMB4UU,LMB6UU,LMB8UU,LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU |
LM Open Series linear bearing: LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU |
KH type linear bearing: KH0622PP,KH0824PP,KH1026PP,KH1228PP,KH1630PP,KH2030PP, KH2540PP,KH3050PP,KH4060PP,KH5070PP |
Stell Cage Linear Bearing: LM8GA,LM10GA,LM12GA,LM16GA,LM20GA, LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,LM60GA |
SDM series Steel cage linear bearing(As same as Ease SDM series):SDM16,SDM20,SDM25,SDM30,SDM35,SDM40,SDM50,SDM60,SDM80,SDM100,SDM120, SDM150 |
Flange Type Linear Bearing: LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU, LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU, LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU,LMT25UU,LMT30UU. |
Linear Slide Unit: 1.Close Type:SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU (normal type) SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type) 2.Open Type: SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU(Normal type) SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU(Long type) TBR16UU,TBR20UU,TBR25UU,TBR30UU (This type with the flange at the pillow block) |

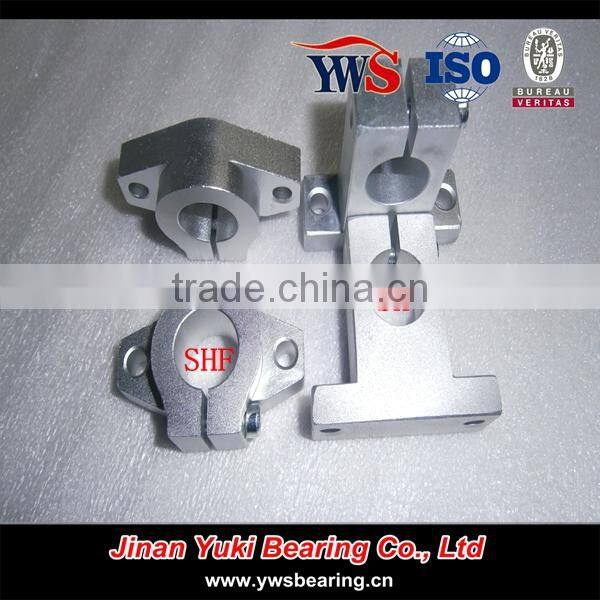

Shaft Support: SK/SHF SHAFT SUPPORT:SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50,SK60 SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50 |
Are you interested in these products? If so,pls send inquiry to me. :)
