Product Details
| Structure | Universal | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Nonstandard | Material | Steel | |
| Brand Name | FULL WERK | Place of Origin | Zhejiang, China | |
| Model Number | SWC |
Product Description
Attention 1:

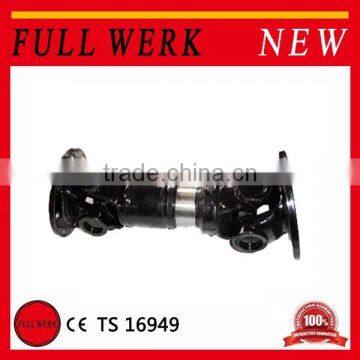

The heavy duty SWCZ series is a specially designed cardan shaft which features special cross design along with a unique and heavy shock application with increased reliability. It mainly used for Tube Piecer, Plate mill R1&R2, Crushers, Wind mill test machine,etc.
Attn 2:
The short design shaft SWCD was created as a solution for our customer in applications with very tight and limited space.It mainly used for Locomotives, Marine, Wind mill, Test sw, etc.
Attn 3:
Our medium duty SWC series has been proven countless of times among our customers to be the most popular choice of shafts for large torque in compact design to fit a wide variety of application and with long lifetime. It is mainly used for rolling mills, marine drives, crane, straightening machines, etc.
Specifications
Hangzhou transmission parts super short cardan shafts with length displacement
- ISO9001 quality system
- OEM, ODM Products
- High Accuracy and Closely Structure
SWCD Type universal coupling shaft drawing and data sheet
Name | cardan shaft, drive shaft, transmission shaft,universal coupling shaft |
Type | SWC-BF, SWC-BH, SWC-CH, SWC-DH, SWC-WD, SWC-WF, SWC-WH,SWCD |
Quality Guarantee | ISO 9001 |
Use for | Use for rolling mill , marine drives, crane, straightening machines and so on |
Material | Steel 45#, 60#, As per customer's requirment |
Production Standard | According drawing or sample to manufacturing. OEM is available too |
Manufacturing Method | Casting or forging, machining |
Surface Finish | Heat treatment, rust prevention, painting |
Inspection | The production is inspected OK before package |
Inspection Method | Assembly shaft with dynamic balance test to avoid virbration |
| Spare parts check measurement |
Model | Rotary DiameterD | Nominal Torque Tn KN.m | Fatigue Torque Tf KN.m | Axial Angle α ≤ | Size mm | ||||||||
D1 | D2 | D3 | Lm | n-d | K | t | b | g | |||||
SWC100 | 100 | 1.6 | 0.8 | 25º | 84 | 57 | 60 | 55 | 6-9 | 7 | 2.5 | - | - |
SWC120 | 120 | 4.5 | 2.25 | 25º | 102 | 75 | 70 | 65 | 8-11 | 8 | 2.5 | - | - |
SWC150 | 150 | 10 | 5 | 25º | 130 | 90 | 89 | 80 | 8-13 | 10 | 3.0 | - | - |
SWC180 | 180 | 20 | 10 | 25º | 155 | 105 | 114 | 110 | 8-17 | 17 | 5.0 | - | - |
SWC200 | 200 | 36 | 18 | 15º | 173 | 120 | 140 | 115 | 8-17 | 20 | 5.0 | 28 | 8.0 |
SWC225 | 225 | 50 | 25 | 15º | 196 | 135 | 152 | 120 | 8-17 | 20 | 5.0 | 32 | 9.0 |
SWC250 | 250 | 71 | 35.5 | 15º | 218 | 150 | 168 | 140 | 8-19 | 25 | 6.0 | 40 | 12.5 |
SWC285 | 285 | 100 | 50 | 15º | 245 | 170 | 184 | 160 | 8-21 | 27 | 7.0 | 40 | 15.0 |
SWC315 | 315 | 140 | 70 | 15º | 280 | 185 | 219 | 180 | 10-23 | 32 | 8.0 | 40 | 15.0 |
SWC350 | 350 | 200 | 100 | 15º | 310 | 210 | 267 | 194 | 10-23 | 35 | 8.0 | 50 | 16.0 |
Flange Connections and Companion Flange Adapters
Why Speedway?
1.OEM,ODM and label production service.
2.Strict quality supervision ,competitive price & good reputation in the market.
3.Monthly production volume over 10,000pcs.
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 5pcs/model for stock items.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30-45 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
