Hangzhou Speedway FULL WERK Forged Samurai Cardan Shaft for Industry
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
Hangzhou Speedway FULL WERK Forged Centaflex Coupling for Industry
-
Hangzhou Speedway FULL WERK Forged Rolling Mill Coupling for Industry
-
Hangzhou Speedway FULL WERK Forged Marine Flexible Shaft Couplings for Industry
-
Super Quality FULL WERK Telescopic Types of Shaft Couplings With CE Certificated
-
Good Quality FULL WERK TS16949 Certificated Types of Shaft Couplings for Heavy Duty Industrial Machinery
-
Machine Manufacturer FULL WERK SWC-I 65 C-156 Universal Coupling Mechanical Coupling for Promotion
Product Details
| Structure | Universal | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Steel | |
| Brand Name | FULL WERK | Place of Origin | Zhejiang, China | |
| Model Number | SWC |
Product Description
samurai cardan shaft specifications
1.TS16949 quality system
2.OEM Product
3.High Accuracy and Closely Structure

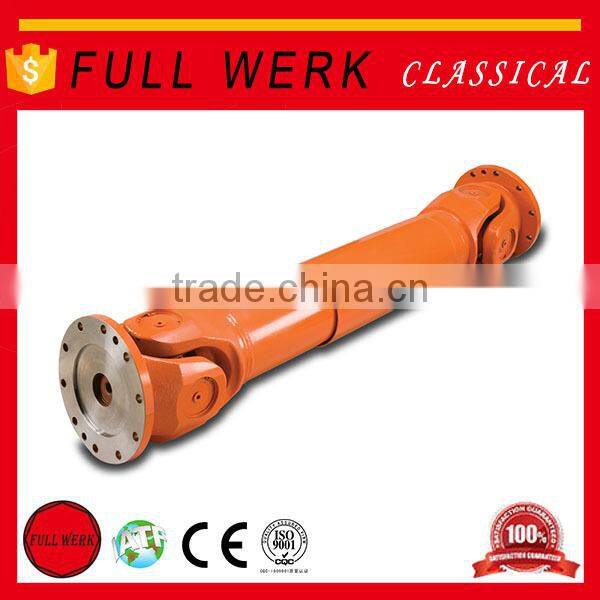

Hangzhou Speedway FULL WERK forged samurai cardan shaft for industry
Name | cardan shaft, drive shaft, watches swc,universal coupling shaft |
Type | SWP-A,SWP-B,SWP-C,SWP-D,SWP-E,SWP-FG,SWP-F,SWP-G, SWP-ZG |
Quality Guarantee | TS16949 |
Use for | Use for rolling mill , marine drives, crane and so on |
Material | Steel 45#, 60#, As per customer's requirment |
Production Standard | According drawing or sample to manufacturing. OEM is available too |
Manufacturing Method | Casting or forging, machining |
Surface Finish | Heat treatment, rust prevention |
Inspection | The production is inspected OK before package |
Inspection Method | Assembly shaft with dynamic balance test to avoid virbration |
| Spare parts check measurement |

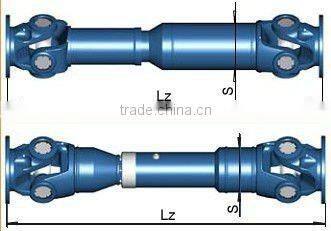

Model | Rotary DiameterD | Nominal Torque Tn KN.m | Fatigue Torque Tf KN.m | Axial Angle α ≤ | Size mm | ||||||||
D1 | D2 | D3 | Lm | n-d | K | t | b | g | |||||
SWC100 | 100 | 1.6 | 0.8 | 25º | 84 | 57 | 60 | 55 | 6-9 | 7 | 2.5 | - | - |
SWC120 | 120 | 4.5 | 2.25 | 25º | 102 | 75 | 70 | 65 | 8-11 | 8 | 2.5 | - | - |
SWC150 | 150 | 10 | 5 | 25º | 130 | 90 | 89 | 80 | 8-13 | 10 | 3.0 | - | - |
SWC180 | 180 | 20 | 10 | 25º | 155 | 105 | 114 | 110 | 8-17 | 17 | 5.0 | - | - |
SWC200 | 200 | 36 | 18 | 15º | 173 | 120 | 140 | 115 | 8-17 | 20 | 5.0 | 28 | 8.0 |
SWC225 | 225 | 50 | 25 | 15º | 196 | 135 | 152 | 120 | 8-17 | 20 | 5.0 | 32 | 9.0 |
SWC250 | 250 | 71 | 35.5 | 15º | 218 | 150 | 168 | 140 | 8-19 | 25 | 6.0 | 40 | 12.5 |
SWC285 | 285 | 100 | 50 | 15º | 245 | 170 | 184 | 160 | 8-21 | 27 | 7.0 | 40 | 15.0 |
SWC315 | 315 | 140 | 70 | 15º | 280 | 185 | 219 | 180 | 10-23 | 32 | 8.0 | 40 | 15.0 |
SWC350 | 350 | 200 | 100 | 15º | 310 | 210 | 267 | 194 | 10-23 | 35 | 8.0 | 50 | 16.0 |
Flange Connections and Companion Flange Adapters
Why Speedway?
1.OEM,ODM and label production service.
2.Strict quality supervision ,competitive price & good reputation in the market.
3.Monthly production volume over 10,000pcs.
Q1. What is your company major products?
A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.
Q2. What is the MOQ?
A: Usually our MOQ is 5pcs/model for stock items.
Q3. What is the delivery date?
A: It takes 5~7 days if there is stock, but takes 30-45 days if there is no stock.
Q4. What is the packet?
A: Neutral packing or customer made packing.
Q5. What is the payment method?
A: Our payment method:T/T, WEST UNION, PAYPAL.
Q6.How is the quality?
A: Strict control before shipment.
Q7.What are our major market?
A: Our main markets are middle east, Africa, southeast Asia and south America,European..
