Cixi Double Shealed Wheel Roller Barings NJ202E

1.Cylindrical roller bearings without outer ring capped edge

The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring
The NU and N cylindrical roller bearings, the shaft is allowed two-way displacement toward the bearing box, i.e. the cylindrical roller bearings can bear the change of shaft length due to thermal expansion. Thus It is suitable to serve as a non-fixed bearing. It can bear larger radial load, but cannot take axial load.

2.Cylindrical roller bearings with capped edge on both outer ring and inner

The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring
The NJ & NF cylindrical roller bearing, the axial-displacement of the shaft or housing on one-direction can be limited. The one-direction axial positioning can be reached. It can burden smaller axial load from one-direction.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring. The two-way axial positioning toward the shaft can be reached. The bearing can bear two-way axial force. The NUP & N cylindrical roller bearings can be chosen for the structure. The NJ and HJ cylindrical roller bearing with separate thrust collar is similar to the NUP cylindrical roller bearing, it can be used as the fixed (positioning) bearing.

3.Cylindrical roller bearings without inner ring or without outer ring

The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.
The RNU and RN cylindrical roller bearing are used with a component having a limitation on radial dimension. The axial journal or the surface of the housing bore can be used as the raceways. The hardness and the machining precision as well as the surface quality should be same as the raceways of the inner ring and the outer ring.

4.Cylindrical roller bearings with full complement (rollers)

Using double capped edges on the outer ring and single capped edges on the inner ring. i.e. type of NJ.V, NUP.V, RNU.V, etc. It has the advantage of great load rating and simple structure in comparison with the roller bearing which has the similar structure and has cage. In condition that rotation speed and working temperature is not high, good lubrication condition and the cleanliness of the bearing box is also relatively good then it has the first priority to use of the full complement (rollers) structure.

5.Cylindrical Roller Bearings (advance model)

The dimensions of E type cylindrical roller bearing are same as the dimensions of the ordinary type. But the load carrying capacity is increased accordingly due to the increasing of the diameter of rollers, the length and the number of rollers. An additional 'E' is added at the end of the designation to represent this kind of cylindrical roller bearings, besides the diameter of the roller's inscribed circle is difference from the ordinary type bearings. It cannot be replaced by the ordinary type bearings.

Product

characteristics

Series: NU, NJ, NUPG, NN, N, NNU, NJG, and so on.

Inner diameter: 20-1300 mm

*Quality accords with the industry standard

*Types: Single Row Caged CRB, Double Row Caged CRB, Multi-row Cage CRB, Single Row Full Complement CRB, Double Row Full Complement CRB, Multi-row Full Complement CRB and so on.

*Typical Applications: blower and fans, electric motors, gears and drives, machine tools, crushers, construction equipment and so on.

Packing

Single Box Package Then Put In Wooden Case

Material

GCr15_China/(AISI)52100_American/(DIN)100Cr6_Germany(Chrome steel)

Precision

P0,P2,P4,P6,P5

Advantages

100% quality manufacturing
All facilities are quality certified
We guarantee that our products meet your supplied specifications
Extremely competitive pricing
Partial container orders
Flexible payment options
Full range of packaging options from bulk to retail ready Complete testing

services

 available

Name

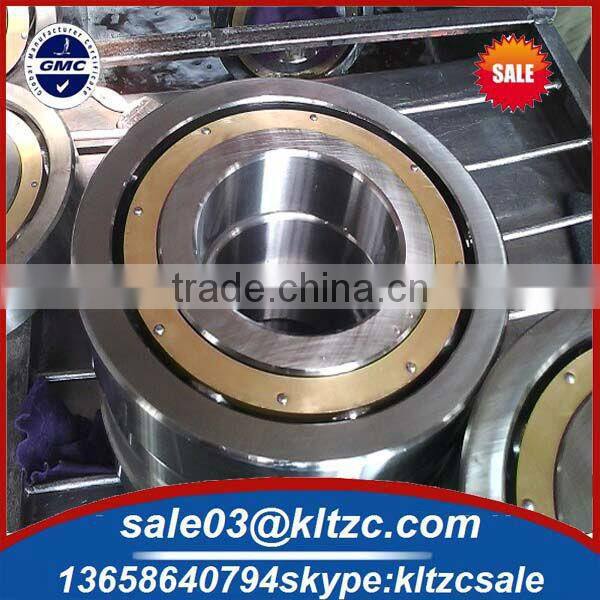

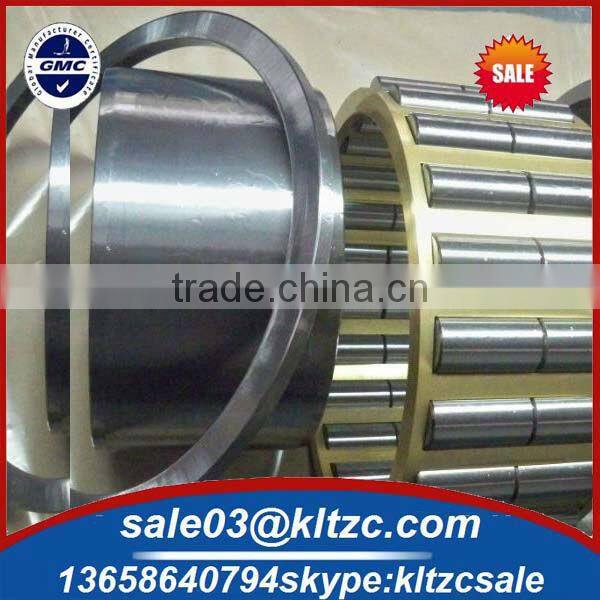

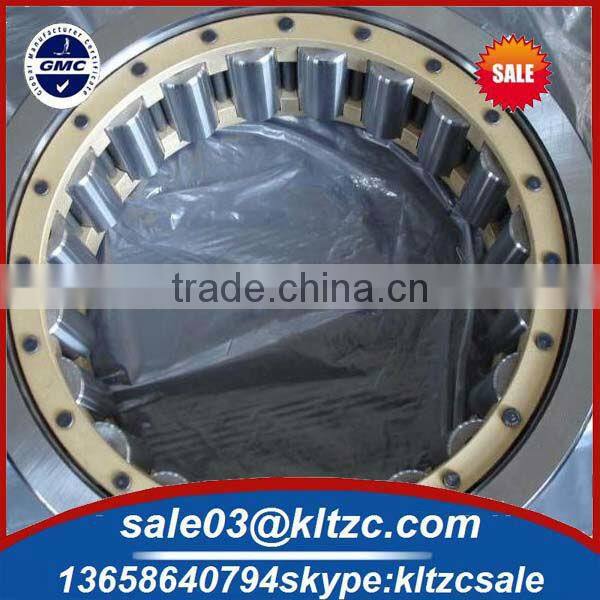

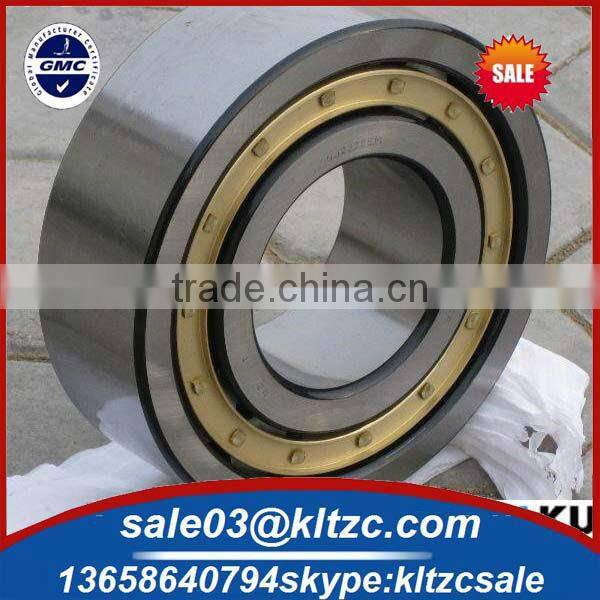

Double wheel roller bearings NJ202E

Model

N, NU, NJ, NF, NUP, NN, NNU, FC, FCD, FCDP, NNCF,NNF,SL etc

NU222, NNU4952, N236, NJ315, NF216 ,NNCF2218, NNF5008, SL185032…

Material

GCr15

Certificate

ISO9001:2001

Precision

P0, P5

Clearance

         C0,C1,C2,C3

Bore Size:

1mm-200mm

Outside diameter

1mm-200mm

Cage Material

Brass/Bakelite

Seals Type

RS, 2RS, R2, Z, 2Z, 2RZ etc.

Features

The structure of Cylindrical roller bearing is theinner ring and outer ring which can be seperated. Cylindrical Roller Bearing without sidewall in inner nor outer rings can be used as a free-end bearings because its inner and outer rings can move relative to the axial. Cylindrical Roller Bearing which has double sidewalls in either inner or outer ring and single sidewall in the other side,can bear a certain degreeof axial load.

Application

Mainly used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application.
