Home > Products > SKS & Backhoe Tyres > backhoe tires

backhoe tires

FOB Price

US$ 200 - 250 / Piece

50 Pieces(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Tires	Use	Harvesters
Place of Origin	Shanghai, China	Brand Name	TNR
Model Number	16.9-28

Product Description

Specifications

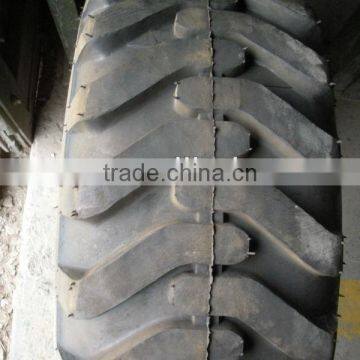

backhoe tires
1. Agricultural Tire 16.9-28 AR-4A
2. Ply Rating: 10PR/12PR
3. Bar Height: 28mm

backhoe tires

Pattern Description:

1.Application to agricultural implement vehicles;
2.Application to be used on soft road,muddy road and desert;

3.Good traction performance;

Specification:

Tire Size

Type

Bar Height

Standard Rim

Available Rim

Inflated Dimensions

Max Load kg

Pressure Kpa

Inch

Section Width

Overall Diameter

Inch

16.9-28

1.10

W15L

W14L

430

16.93

1410

55.51

2380

200

2730

240

Tire Terminology

• Section height is the design height of a tire section measured from the base of the tire bead to the top of the tread.
• Section width is the width of a new tire, including 24-hour inflation growth and normal sidewalls, but not including protective side ribs, bars, or decorations.
• Aspect ratio is the section height divided by section width, and is measured as a percentage.
• Static loaded radius (SLR) is the dimension measured from the axle centerline to the ground when the tire is under load. SLR is usually specified at the tire's maximum load and inflation for that particular tire.
• Overall diameter is twice the section height of a new tire, including 24-hour inflation growth, plus the nominal rim diameter.

Agricultural equivalent sizes

PART NUMBER	DUAL WHEEL SIZE	TO TAKE TYRE SIZE
D1608	8 x 16	10.00 - 16	240/70 - 16
D1608	8 x 16	11.00 - 16	250/80 - 16
D1611	11 x 16	13.0/75 - 16	320/65 -16
D1809**	9 x 18	10.5/80 - 18	275/80 - 18
D1809**	9 x 18	12.5/80 - 18	335/80 - 18
D1813**	13 x 18	15.0/70 - 18	405/70 - 18
D2009**	9 x 20	10.5 - 20	275/80 - 20
D2011**	11 x 20	12.4 - 20	360/70 - 20
D2011**	11 x 20	12.5/80 - 20	375/75 - 20
D2013**	13 x 20	14.9 - 20	380/70 - 20
		16.0/70 - 20	400/70 - 20
			420/75 - 20
D2407	7 x 24	8.3 - 24
D2408	8 x 24	9.5 - 24
D2410	10 x 24	11.2 - 24	320/70 - 24
D2410	10 x 24	12.4 - 24	320/70 - 24
D2412	12 x 24	13.6 - 24	340/85 - 24
		14.9 - 24	380/85 - 24
			420/65 - 24
			420/70 - 24
D2415-8	15 x 24	16.9 - 24	420/85 - 24
D2415**		17.5 - 24	460/70 - 24
		18.4 - 24	480/70 - 24
D2416**	16 x 24	19.5 - 24	540/65 - 24
D2612	12 x 26	13.6 - 26
D2614	14 x 26	16.9 - 26
D2616**	16 x 26	18.4 - 26	480/70 - 26
			520/70 - 26
			540/65 - 26
D2620	20 x 26	23.1 - 26	620/70 - 26
			620/75 - 26
			650/70 - 26
D2625	25 x 26	28.1 - 26	750/65 - 26
D2810	10 x 28	11.2 - 28	280/85 - 28
D2810	10 x 28	11.2 - 28	320/70 - 28
D2811	11 x 28	12.4 - 28	320/85 - 28
D2811	11 x 28	12.4 - 28	360/70 - 28
D2812	12 x 28	13.6 - 28	380/70 - 28
D2812	12 x 28	13.6 - 28	340/85 - 28
D2813	13 x 28	14.9 - 28	380/85 - 28
D2813-10			420/65 - 28
			420/70 - 28
D2815-8	15 x 28	16.9 - 28
D2815			480/65 - 28
			480/70 - 28
D2816	16 x 28	18.4 - 28	540/65 - 28
D2818	18 x 28		600/65 - 28
D2820	20 x 28		620/70 - 28
D3012	12 x 30	14.9 - 30	380/85 - 30
D3012	12 x 30	14.9 - 30	420/70 - 30
D3015-8	15 x 30	16.9 - 30	420/85 - 30
D3015		18.4 - 30	480/70 - 30
D3015-12			520/70 - 30
D3016	16 x 30	18.4 - 30	540/65 - 30
D3020	20 x 30	23.1 - 30	600/70 - 30
D3020-14			620/75 - 30
			650/70 - 30
D3023	23 x 30		710/55 -30
D3210	10 x 32	11.2 - 32	270/75 - 32
			320/85 - 32
		12.4 - 32	300/95 - 32
			320/90 - 32
D3220	20 x 32		600/65 - 32
D3221	21 x 32	24.5 - 32
			650/70 - 32
			680/70 - 32
			680/75 - 32
D3227	27 x 32	30.5 - 32
D3227-14			800/60 - 32
			800/65 - 32
D3410	10 x 34		290/95 - 34
D3410	10 x 34		320/85 - 34
D3413	13 x 34		380/85 - 34
D3415-8	15 x 34	16.9 - 34	420/85 - 34
D3415		18.4 - 34	460/85 - 34
			480/70 - 34
D3423	23 x 34		710/75 - 34
D3610	10 x 36	11.2 - 36	270/95 - 36
D3611	11 x 36	12.4 - 36	320/85 - 36
D3611	11 x 36	13.6 - 36	340/85 - 36
D3810	10 x 38	11.2 - 36	270/95 - 38
D3812	12 x 38	13.6 - 38	340/85 - 38
D3812	12 x 38	14.9 - 38	340/85 - 38
D3815-8	15 x 38	16.9 - 38	420/85 - 38
D3815		18.4 - 38	460/85 - 38
D3815-12			480/70 - 38
			520/70 - 38
D3816	16 x 38		520/85 - 38
D3818	18 x 38	20.8 - 38	540/65 - 38
D3818-14	18 x 38	20.8 - 38	580/70 - 38
D3820	20 x 38		600/65 - 38
			620/70 - 38
			650/65 - 38
D3825	25 x 38		710/60 - 38
D4008	8 x 40	9.5 - 40	230/95 - 40
D4216	16 x 42	18.4 - 42	480/80 - 42
D4218	18 x 42	20.8 - 42	520/85 - 42
D4218-14	18 x 42	20.8 - 42	580/70 - 42
D4220	20 x 42		620/70 - 42
D4220	20 x 42		650/65 - 42
D4223	23 x 42		710/70 - 42
D4227	27 x 42		950/50 - 42
D4408	8 x 44	9.5 - 44	230/95 - 44
D4410	10 x 44	11.2 - 44	270/95 - 44
D4610	10 x 46	11.2 - 46	270/95 -46
D4610	10 x 46	12.4 - 46	300/95 - 46
D4612	12 x 46		340/85 - 46
D4613	13 x 46	14.9 - 46	420/80 - 46
D4616	16 x 46		520/85 - 46
D4620	20 x 46		620/70 - 46
D4808	8 x 48	9.5 - 48	230/95 - 48
D4810	10 x 48	11.2 - 48	270/95 - 48
D4812	12 x 48	13.6 - 48	340/85 - 48
D5010	10 x 50		320/90 - 50
D5210	10 x 52	12.4 - 52	300/95 - 52
D5410	10 x 54	11.2 - 54	270/95 - 54

Pictures:

If need more information, please contact us freely.
