Saudi Arabia QT4-15C Block Machine,Haiti Automatic Brick Making Machine,hollow Block Making Machine
- qingdao
- T/T Credit Card
You May Like
-
Uganda QT5-15 Hollow Brick Making Machine,paver Block Machine,cement Block Making Machine,company Directly Block Machine
-
Uganda QT4-15B Brick Making Machine,hot Selling Hollow Block Making Machine,color Paver Brick Machine
-
Low Price Hydraulic QT4-20C Block Machine,concrete Brick Making Machine,automatic Brick Machinery
-
Ghana QT4-15B Brick Making Machine,hot Selling Hollow Block Making Machine,color Paver Brick Machinery
-
Ghana QT5-15 Concrete Hollow Brick Making Machine,paver Block Machine,cement Block Making Machine,company Directly Block Machine
-
Ghana QTJ4-25 Brick Making Machine,concrete Hollow Block Machine,small Scale Block Making Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 7200-9600pcs/day | Place of Origin | Shandong, China | |
| Brand Name | hongfa | Model Number | QT4-15C | |
| Voltage | As your local power requests | Power | 27.5kw | |
| Dimension(L*W*H) | 7100*1600*2610mm | Certification | ISO9001/SGS/CE | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

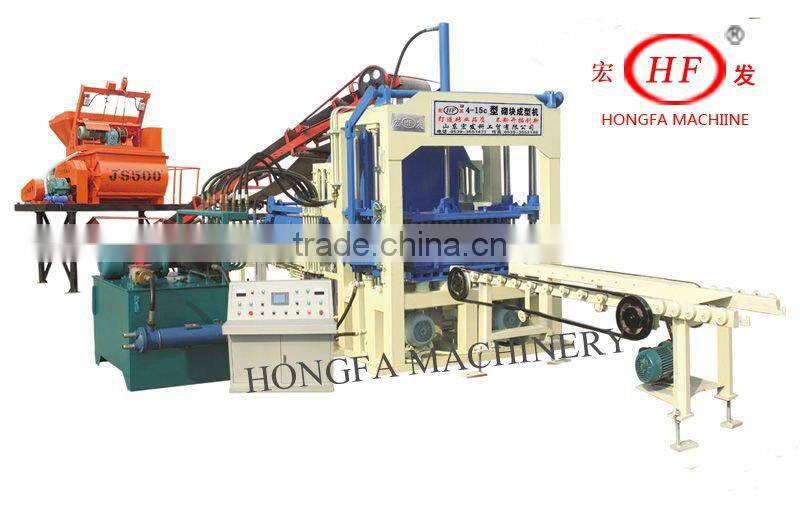

QT4-15C block machine
(1) Productivity
Item | Specification size | Quantity per mold | Cycle mouding | Per hour | Per day |
hollow brick | 400*200*200 | 4pcs | 15-20s | 720-960pcs | 7200-9600pcs/day |
hollow brick | 400*150*200 | 7pcs | 15-20s | 1260-1680pcs | 12600-16800pcs/day |
color brick | 225*112.5*60 | 14pcs | 15-17s | 2520-3360pcs | 25200-33600pcs/day |
(2) Main Technical Parameter
Main Technical Specifications | |
Dimension | 7100*1600*2610mm |
Rated pressure | 16MPa |
Main vibration | platform |
Vibration frequency | 4600r /min |
Pallet Size | 1020*570mm |
Molding Cycle | 15-25(s) |
Overall Power | 27.5kw |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Machine Line Parts Details:
1. Cement silo
Size | 30T | 50T | 100 Ton |
Dimeter(m) | 2.5 | 3 | 2.5 |
Bin Height(m) | 4.8 | 5.4 | 10 |
Total Height(m) | 11.4 | 12 | 17 |
2. Batching machine (PLD 800)
This automatically weighs the raw materials as per pre determined program.
3.JS 500 concrete mixer
Mixing the raw materials thoroughly and discharges for the Host machine.
4.Belt conveyor machine: 8meters, 2.2kw
This conveys the raw materials to the host machine hopper.
5, Host machine
6. PLC control system
PLC intelligent control.Manmachine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
7. Hydraulic station
Electric system and hydraulic system work together with the machine. Changing the vibration form, it can realize lower frequency in feeding material and high frequency in vibration. so provide the product with one height in a pallet.
8. Brick conveyor machine
It can clean up the top surface of the bricks.
9, Stacker
It can stack the pallets of block automatically.
10. Molds
It can be designed according to the customer's requirements.
11. Finished products
12 certificate
13.Our customers
14. After service
Guarantee for one year and after-sale service for whole life. We provide engineer to your local place, help you install the machine, training your workers how to operate. The cost is free.
Detail service:
1, Design the program of building plant for customers
2, Provide related drawing of program.
3, Onsite installation and debugging ,and training opeators and maintainer of equipment.
4, Free training for workers in our factory.
Seller: Sherry
Skype: hongfa710
Iphone/WhatsApp/Wechat/Viber: +86-13969965095
Sincerely welcome your consultation.
