Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 90000pcs/d | Place of Origin | Shandong, China | |
| Brand Name | hongfa | Model Number | QT5-15 | |
| Voltage | As your local power requests | Power | 26.5kw | |
| Dimension(L*W*H) | 7400*1950*2800mm | Certification | ISO9001/CE/SGS | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

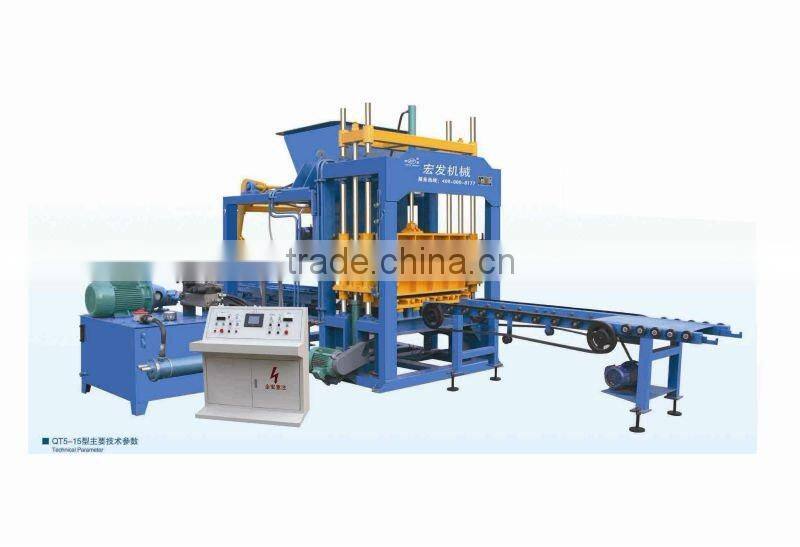

QT5-15 brick making machine
Multifunction in one machine. Changing molds can produce various kinds of specification porous bricks, standard bricks, hollow bricks, with a double material-feeding machine can produce all kinds of the colored road bricks,grassland bricks, and slope protection bricks etc.
(1) Productivity
Item | Specification size | Quantity per mold | Cycle mouding | Per hour | Per day |
Hollow brick | 400*200*200 | 5pcs | 16-20s | 900pcs | 9000pcs/day |
Porous brick | 240*115*90 | 14pcs | 15-18s | 2880pcs | 28800pcs/day |
Standard brick | 240*115*53 | 30pcs | 14-17s | 7680pcs | 76800pcs/day |
(2) Main Technical Parameter
Main Technical Specifications | |
Dimension | 7400*1950*2800mm |
Rated pressure | 21MPa |
Main vibration | platform |
Vibration frequency | 2800-4500r /min |
Pallet Size | 1100*550mm |
Molding Cycle | 15-20(s) |
Overall power | 26.5KW |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Theoretical workshop area:400-800m*m,need about 4-6 workers,the curing area and stacking area arranged according to your specific situation.
Machine Line Parts Details:
1. Cement silo
Size | 30T | 50T | 100 Ton |
Dimeter(m) | 2.5 | 3 | 2.5 |
Bin Height(m) | 4.8 | 5.4 | 10 |
Total Height(m) | 11.4 | 12 | 17 |

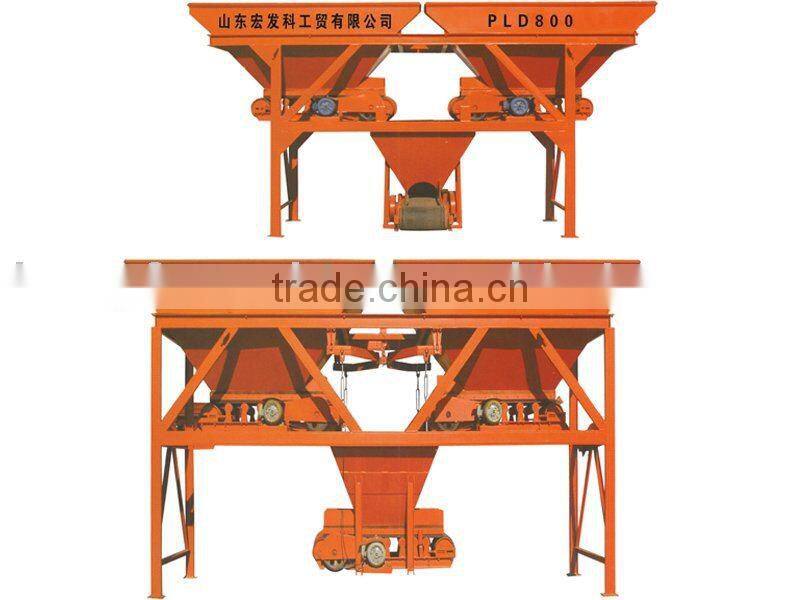

2. Batching machine (PLD 800)
This automatically weighs the raw materials as per pre determined program.

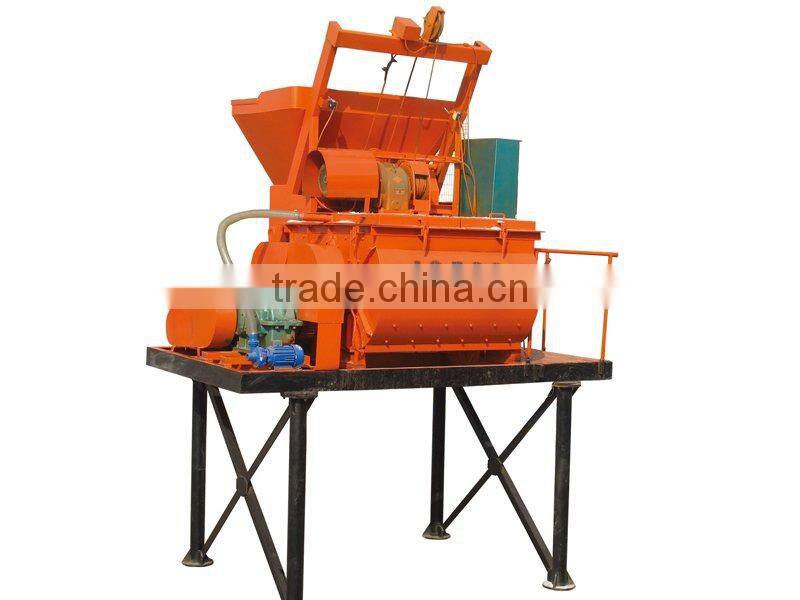

3.JS 500 concrete mixer
Mixing the raw materials thoroughly and discharges for the Host machine.
4.Belt conveyor machine: 8meters, 2.2kw
This conveys the raw materials to the host machine hopper.
5, Host machine
6. PLC control system
PLC intelligent control.Main machine interface, control system equipped with complete logic control,production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.

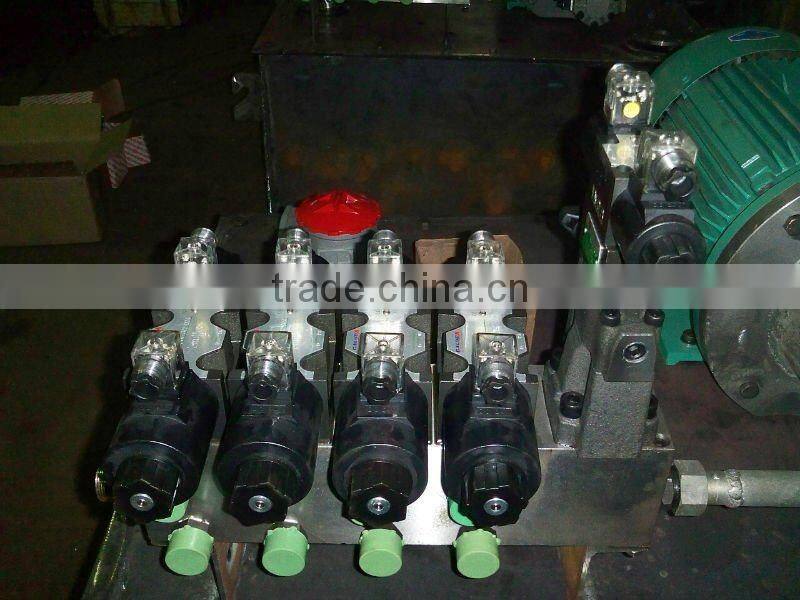

7. Hydraulic station
Electric system and hydraulic system work together with the machine. Changing the vibration form, it can realize lower frequency in feeding material and high frequency in vibration. so provide the product with one height in a pallet.
8. Brick conveyor machine
It can clean up the top surface of the bricks.
9, Stacker
It can stack the pallets of block automatically.
10. Manual forklift
11. Molds
It can be designed according to the customer's requirements.
12. Finished products
13 certificate

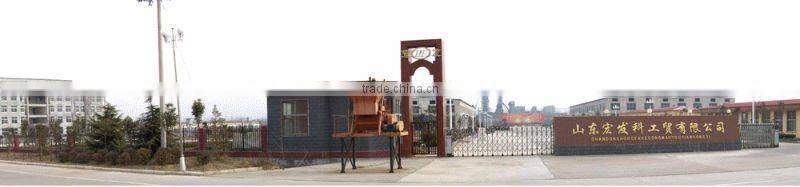

14 Company
Welcome you send your offer to me in your free time.
Seller: Sherry
Skype: hongfa710
Iphone/WhatsApp/Wechat/Viber: +86-13969965095
