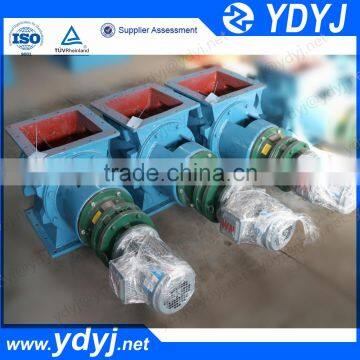

low compressed air consumption airlock valve for wheat flour

Specifications

1.  Airlcok valve with simple Structure,stable performance.

2. Convenient operation and repair.

3. ISO,TUV.SEW,FLENDER

4.Uniform feeding, reducer pressure, airlock

      low compressed air consumption airlock valve for wheat flour

Function

Airlock valve is used to prevent the coal dust or ash particle not happen air channeling phenomenon, maintain the powder flow smoothly from a pressure range into another pressure range, the above and below flange dimension is the same.

Application

Airlock valve is applicable to power plants, cement plants, chemical plants and other industries as conveying material system, to convey dry powder material air lock or quantitative feeding. It can also be used for dust collector and air preheaters bucket to discharge the ash, it is  ideal accessory transport to unloading and batching system.

Feature

1, Cycloid pin wheel reducer, the transmission mechanism is simple and reliable.

2, Rotary airlock valve body material is made of cast iron, high temperature wear resistance, not easy to deformation because of temperature changes.

3, Airlock Rotary valve bearing and bearing housing are away from the body, the dust is not easy to enter inside the bearing, and can reduce the influence of bearing material with high temperature, long service life.

4, The internal star impeller made of 45# steel or Stainless steel, wear resistance.

Airlock valve components

Technical parameter

Site picture

 Packaging and shipping

1. Export packing.(Wooden case, carbon cast and pallet).

2. Container (as customer requirements)

3. It is suitable for long distance ocean transportation.

Our services

I.  Engineers abailable to service machinery overseas.

2. Provide installation guide, equipment manuals,  operation and repair training.

3. Provide random spare parts.

FAQ

Please tell us the following technical datas before ordering:

Q: What 's the material will be conveyed?please tell us more material features.

Q:What's the conveying capacity do you want?

Company informations

Welcome to consult our products, we will try our best to help you.
