High output incline redler conveyor for grain

    High output incline redler conveyor for grain

Working principles

Redler conveyor is a kind of conveying equipments which can continously convey materials by the moving chains in closed shell with C shape, the pressure which comes from chains in transportation direction to the materials and the action which comes from the materials themselves cause internal friction, this friction ensures the stable situation between material layers, and it can overcome external frictional resistance which caused by moving materials in the trough and make materials transport as a whole fluid.

Specifications

1. More high special Scraper conveyor with forged links, the material is alloy steel or customized..

2. The whole closed shell environmental protection structure

3. A horizontal  section add a lifting section transport of bulk material with from 30 °to 90

4. Conveying height up to 30m.

5. The structure can finish special and customized transport of material.

Spare parts

1. Scraper chains. 2. Head section. 3.Curve section  4.Drive part.  5.Site picture .

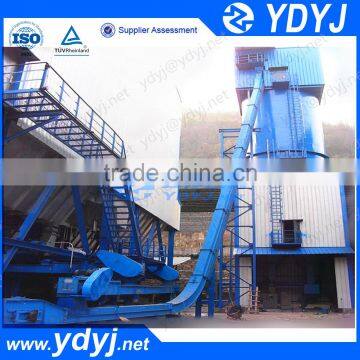

Site picture

Technical Parameters

Packing & Shipping

1. Export packing.(Wooden case, carbon cast and pallet).

2. Container (as customer requirements)

3. It is suitable for long distance ocean transportation.

 Our service

I.  Engineers abailable to service machinery overseas.

2. Provide installation guide, equipment manuals,  operation and repair training.

3. Provide random spare parts.

FAQ

Please clear the following technical datas before ordering:

Q: What 's the material will be lifted?please tell us more material features.

Q:What's the conveying height between the inlet and outlet?

Q:What's the conveying capacity do you want?
