ISO Professional Redler chain Conveyor for bulk materials

 ---Specifications

1. En masse conveyor(Horizontal or inclined)
2. Strong transport capacity.
3. Multiple inlets and outlets.

4. Low noise and less maintenance.

5. ISO,TUV,SEW,FLENDER

ISO Professional Redler chain Conveyor for bulk material

---Operating Principles

When Redler chain conveyor is conveying materials, the pressure which comes from the chains in conveying direction of materials and the weight function of materials themselves cause the internal friction.This friction assures the stable condition between material layers, and it can overcome the external frictional  which caused by moving materials in the trough,then make the materials to form a continuous whole  flow to be transported.

---special components

1. Scraper chain: Forged links, alloy steel.

2. Head section: The head wheel is made of wheel hubs and tooth blade, tooth blade with strict heat treatment.

3. Middle section:  The rectangular closed case, with upper and lower wear guide, materials:65Mn.

4. Adjustable section: it has material layer adjuster to adjust the height of material and control feed quantity.

5.Tail section: With a tension device.It can adjust the length of chains because of wear and lengthen the margin.

Scraper chain

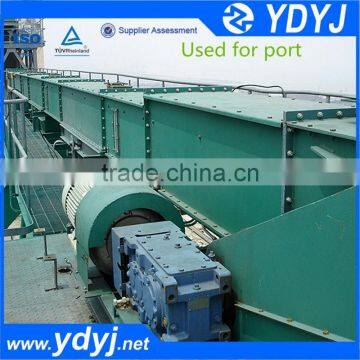

---Site pircutes

---Technical Parameters

Packaging and shipping

1. Export packing.(Wooden case, carbon cast and pallet).

2. Container (as customer requirements)

3. It is suitable for long distance ocean transportation.

FAQ

Q: What 's the material will be conveyed?please tell us more material features.

Q:What's the conveying length between the inlet and outlet?

Q:What's the conveying capacity do you want?
