Unique Design MSJ Series Alkali Conveying En Masse Conveyor for Chemical Industry

FOB Price

USD $1,100 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 130 Set / Sets per Month
Port Shanghai Tianjin Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, En Masse Conveyor
Material	Other, Carbon steel, stainless steel or as customer requirements	Material Feature	Heat Resistant
Structure	Chain Conveyor	Load Capacity	11~315 m3/h
Place of Origin	Hubei, China	Brand Name	YIJI
Model Number	MSJ20~MSJ125	Voltage	380v or Customized
Power(W)	1.5~160kw	Dimension(LWH)	Specific Models
Certification	ISO9001;2000	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

PRODUCT INTRODUCTION

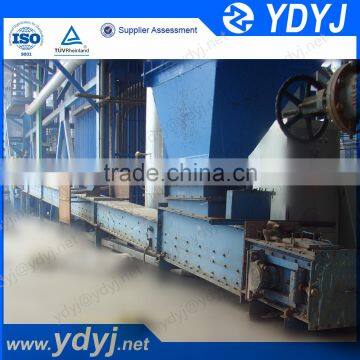

Unique Design MSJ Series Alkali Conveying En Masse Conveyor for Chemical Industry

MSJ series chemical special type en masse conveyor has nine specifications, chute width is 1250mm, the biggest capacity is 315t/h.The type en masse conveyor succeed to solve these problems, such as material causticity is big, stickiness is strong, humidness is big, granularity is small, suspension property is strong in the field. And they are widely used in calcined soda, fertilizer, glyphosate, para ester, adiponitrile, TCP these chemical field. Here is main technical parameter table following

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Scraper conveyor

3)Full-closed structure
4)Horizontal transportation of bulk material
5)The biggest conveying capacity can reach to the 315 m3/h.

Certifications

Detailed Images

Machine Parts

Name: Head Part

Brand: YDYJ

Original: China

It includes wheel, shaft, bearing, bearing seat and so on. The wheel is composed of a wheel hub and a toothed plate, and the toothed plate can be replaced by a bolt, so that the maintenance is convenient.It has the discharge port.

Main Features

Name: Tail Part
Brand: YIJI
Original: China
It includes wheel, shaft, bearing, bearing seat and so on, It has a crew thread tension and can adjust the length of scraper chains.The tail shaft is provided with a speed sensor, the sensor will obtain the speed signal to the control system, to achieve the function of security protection.

Machine Parts

Name: Scraper Chains
Brand: YIJI
Original: China
Forged chain, with high strength,wear-resistant and fine welding craft.

It is the key part of conveyor, and the chain link must be heat treatment.

Technical Parameters of MSJ Series Chemical Special Type En Masse Conveyor
Type	MSJ20	MSJ25	MSJ32	MSJ40	MSJ50	MSJ63	MSJ80	MSJ100	MSJ125
Chute width(mm)	200	250	315	400	500	630	800	1000	1250
Speed(mm)	0.25-0.35					0.4-0.5
Capacity(m3/h)	11-14	14-18	18-25	25-35	80-100	120-150	160-200	200-250	250-315
Max conveying distance(m)	50	50	50	60	60	75	75	80	80

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	600(L) * 300 (W) *270 (D)
Weight	10T
Packaging Details	The normal package is Iron Frame (Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	600 (L) * 300 (W) * 270(D)
Weight	10 T
Packaging Details	The normal package is Iron box (Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
