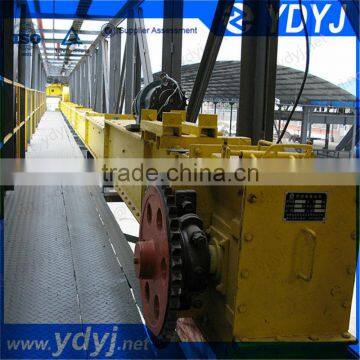

ISO adjustable length Redler chain conveyor for netlets

 Specifications

1.Redler chain conveyor(Horizontal or inclined).
2. Strong transport capacity.
3. Low noise, high speed.

4. ISO,TUV,SEW,FLENDER.

  ISO adjustable length Redler chain conveyor for netlets

Operating Principle

When Redler chain conveyor is running, the pressure which comes from the chains in conveying direction of materials and the weight function of materials themselves cause the internal friction.This friction assures the stable condition between material layers, and it can overcome the external frictional  which caused by moving materials in the trough,then make the materials to form a continuous whole  flow to be transported.

Redler chain conveyor

 special components

1. Scraper chain: Forged links, alloy steel.

2. Head section: The head wheel is made of wheel hubs and tooth blade, tooth blade with strict heat treatment.

3.Middle section:  The rectangular closed case, with upper and lower wear guide, materials:65Mn.

4.Tail section: With a tension device.It can adjust the length of chains.

 In producing

 Main Features

1. Totally enclosed structure, light weight, small volume;

2. Convenient installation and maintenance;

3. Horizontal or slightly inclined transport from 0° to 30°

4. Multiple material inlet and outlet;

5. Conveying distance is up to 80m with material temperature lower than 150°C

 Technical Parameter

Packaging and shipping

1. Export packing.(Wooden case, carbon cast and pallet).

2. Container (as customer requirements)

3. It is suitable for long distance ocean transportation.

 Our service

I. Engineers abailable to service machinery overseas.

2. Provide installation guide, equipment manuals,  operation and repair training.

3. Provide random spare parts.

 FAQ

Redler chain conveyor is not standard product, please tell us the following technical parameters before inquiry:

Q: What 's the material will be conveyed?please tell us more material features.

Q:What's the conveying distance between the inlet and outlet?

Q:What's the conveying capacity do you want?
