Home > Products > Rotary Dryer > Sawdust Rotary Dryer ,sawdust Dryer for Sale

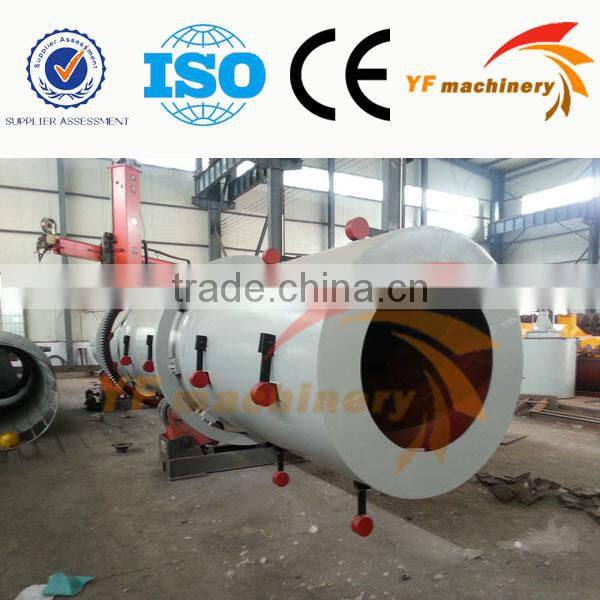

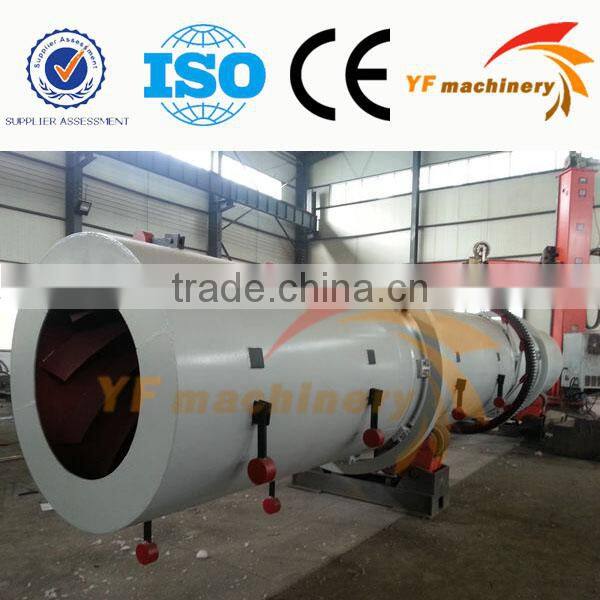

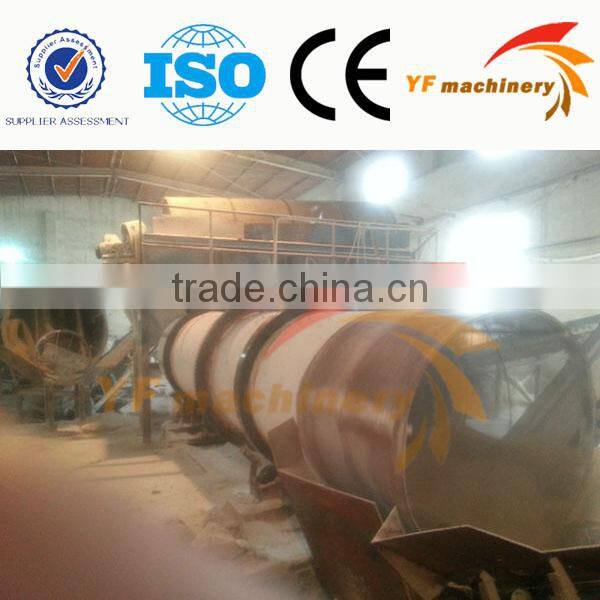

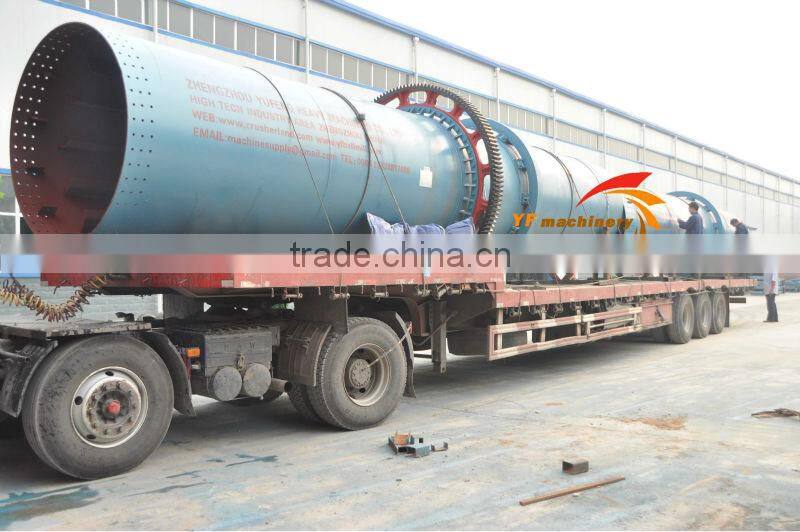

Sawdust Rotary Dryer ,sawdust Dryer for Sale
- China port
- T/T
You May Like
Product Details
| Condition | New | Type | Drum Drying Equipment | |
| Place of Origin | Henan, China | Brand Name | Yufeng | |
| Model Number | 1800*18000/2000*22000/3000*25000 | Voltage | 380V/50HZ | |
| Power(W) | 5.5/7.5/11/15/45/75 | Certification | ISO&CE | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Rotary dryer equipment description:
The Rotary dryer made by our company is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation
rotary dryer equipment Working principle of the rotary dryer:
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
rotary dryer equipment main technicals:
Model | Capacity (t/h) | Roratry speed (r/min) | Motor model | Power (KW) | Reducer | Weight (t) | ||
Clay | Residue | Lime | ||||||
φ1.5×12 | 4 | 3.3 | 4.9 | 3.79 | Y180L-6 | 15 | ZQ50 | 17.8 |
φ1.5×14 | 4.5 | 3.8 | 6 | 3.79 | Y200L1-6 | 18.5 | ZQ50 | 18.8 |
φ2.2×12 | 6 | 4 | 8 | 4.7 | Y200L1-6 | 18.5 | ZQ65 | 31.8 |
φ2.2×14 | 8 | 5 | 10 | 4.7 | Y200L1-6 | 18.5 | ZQ65 | 33.7 |
φ2.2×16 | 9 | 6 | 12 | 4.5 | Y225M-6 | 30 | ZQ75 | 34.8 |
φ2.4×18 | 11 | 10 | 13 | 4 | Y255M-6 | 37 | ZQ75 | 53.9 |
