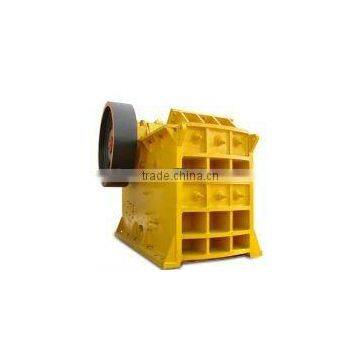

Small crusher for sale with good quality
- 30 Set / Sets per Month
- china port
- T/T
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | building materials,chemical industry,metallurgy | Motor Type | AC Motor | |
| Power(W) | 5.5/7.5/11/15/30/55/75/110 | Capacity(t/h) | 500t/h | |
| Place of Origin | Henan, China | Brand Name | yufeng | |
| Model Number | PE/PEX | Weight | 0.6/1/1.3/2.8/7/12/17/20/29/33/52/55 | |
| Certification | ISO&CE | Warranty | 2years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PE Jaw Crusher is our company set the successful experience in similar products at home and abroad, for mining, smelting, building material, highway, railway, water conservancy, road construction and other industrial sectors quarries and rock crusher specially designed. The product specification is complete, the feed size from 125--1020mm, PE-type jaw crusher crushing materials of compressive strength of up to 350Mpa, is a complete set of broken lines in the first choice of primary crushing equipment.
jaw Crusher Main Features and Benefits:
1) High reliability
2) Flexible capacity
3) simple structure and easy to operate
4) Over-loading protection
5) Easy replacement of wear and spare parts
6) Long service time
7) High efficiency
8) Wide ranges of choices
jaw crusher Working Principle
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet
Specification:
Model | Feed Opening | Max. Feed Size | Capacity | Power | Discharge Opening | Overall Dimension |
PE-150×250 | 150×250 | 125 | 1-5 | 5.5 | 10-40 | 758×758×794 |
PE-250×400 | 250×400 | 210 | 5-20 | 15 | 20-60 | 1500×1400×900 |
PE-400×600 | 400×600 | 340 | 16-65 | 30 | 40-100 | 1700×1800×1600 |
PE-500×750 | 500×750 | 425 | 50-100 | 55 | 50-100 | 1890×1940×1870 |
PE-600×900 | 600×900 | 500 | 50-120 | 55 | 65-160 | 2395×1843×2230 |
PE-750 ×1060 | 750×1060 | 630 | 52-180 | 110 | 80-140 | 2775×2426×2840 |
PE-800×1060 | 800×1060 | 640 | 136-230 | 110 | 100-200 | 2500×2472×2810 |
PE-900×1200 | 900×1200 | 750 | 140-260 | 110 | 95-165 | 3400×3200×3500 |
PE-1000×1200 | 1000×1200 | 850 | 315-342 | 110 | 195-265 | 3335×3182×3430 |
PE-1200×1500 | 1200×1500 | 1020 | 400-800 | 160 | 150-300 | 4200×3732×4620 |
PE-250 ×750 | 250×750 | 210 | 15-30 | 22 | 15-70 | 1400×1300×1350 |
PE-250×1000 | 250×1000 | 210 | 16-52 | 30 | 25-60 | 1600×2000×1500 |
PE-250 ×1200 | 250×1200 | 210 | 20-60 | 37 | 25-60 | 1900×2200×1500 |
PE-300×1300 | 300×1300 | 260 | 30-70 | 55 | 30-90 | 1800×2300×1700 |
....
