Home > Products > Rotary Dryer > 1.2x12m Clay Rotary Dryer

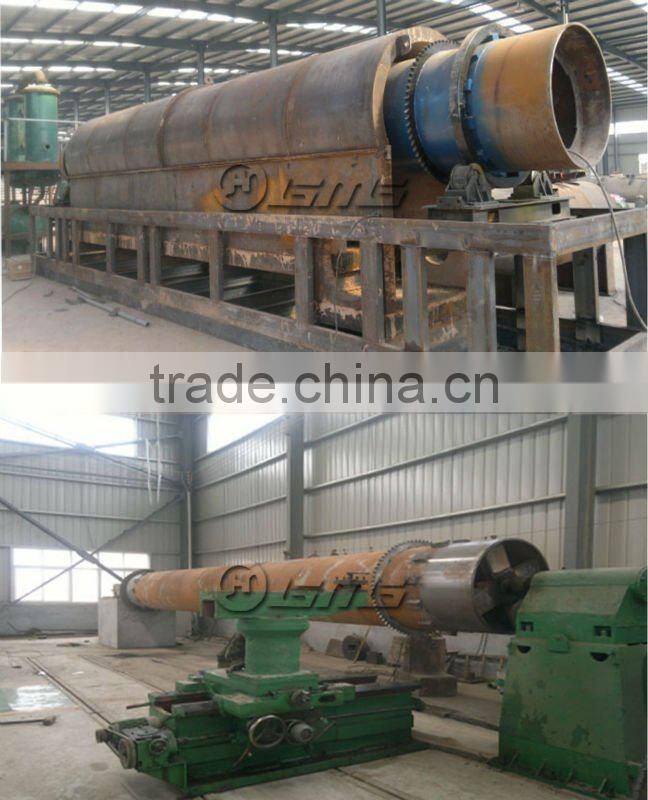

1.2x12m Clay Rotary Dryer
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | GMG | |
| Model Number | 1.2x12m | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.2x12m clay rotary dryer1. Motor 11kw
2.Speed 3-8r/min
3.Overall Dimension(LxWxH) 12x1.9x2.1

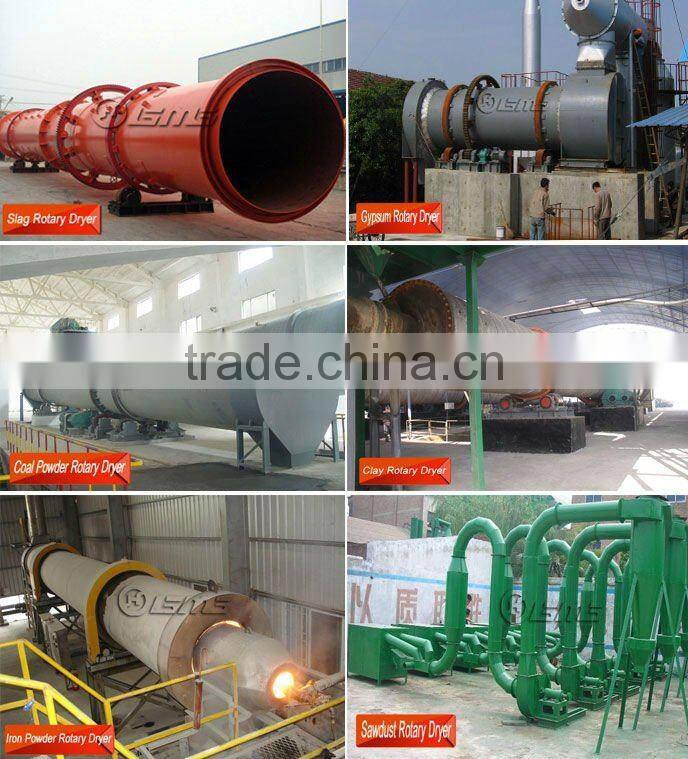

Rotary dryer/Drum Drier is widely used in mining industry, building material, metallurgy, chemical industry, cement industry, and etc.We a professional manufacture of rotary drum dryers. we've designed various rotary dryers for drying slag, limestone, coal powder, clay, sawdust, oil palm fiber, grass, river stone, poultry dung, ores, rock sand and etc for our customers both at home & abroad.
1. High Capacity Rotary Drum Dryer advantages:
reasonable structure, polished manufacture, high capacity, low energy consumption, smooth rotation, easy operation, convenient transportation and so on.

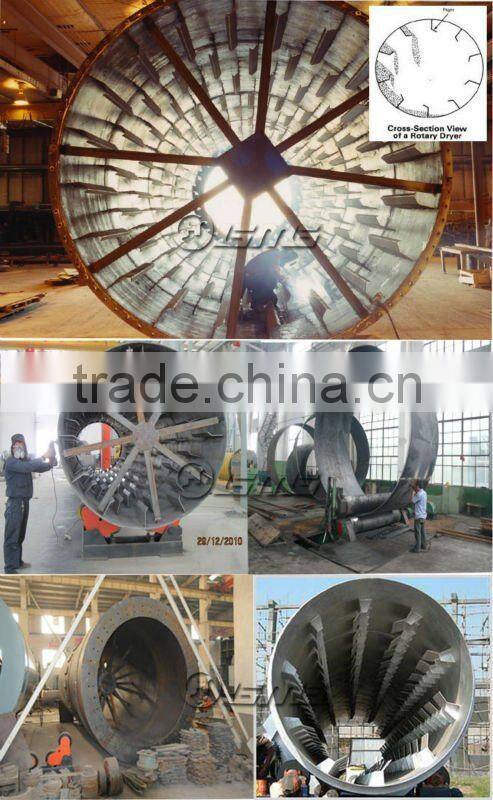

2. Rotary Drum Dryer main parts:
cylinder, lifters, driving device, supporting device and sealing ring, feeding device, discharging device, gear, gearbox, electric motor, cyclone dust collector, furnace and etc.
3. Rotary Dryer Drum drier heating source:
coal, coal gas, natural gas, LPG gas, wood, and etc.
4. Rotary Dryer Drum Drier Mode of flow:
direct flow or counter flow. It is based on the different materials.
5.Rotary Dryer Drum Drier principle of operation:
The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
Technical data Rotary Dryer:
type(mm) | indiclination(%) | rotation speed(r/min) | input tempreture(ºC) | motor power(kw) | outpur(t/h) | weight(t) | reforance | |
Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 | ||
Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 | ||
Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 | ||
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 | ||
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 | ||
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 | ||
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 | ||
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 | ||
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 | ||
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 | ||
Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 | ||
Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 | ||
Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 | ||
Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 | ||
Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 78 | ||
Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 104.9 | ||
