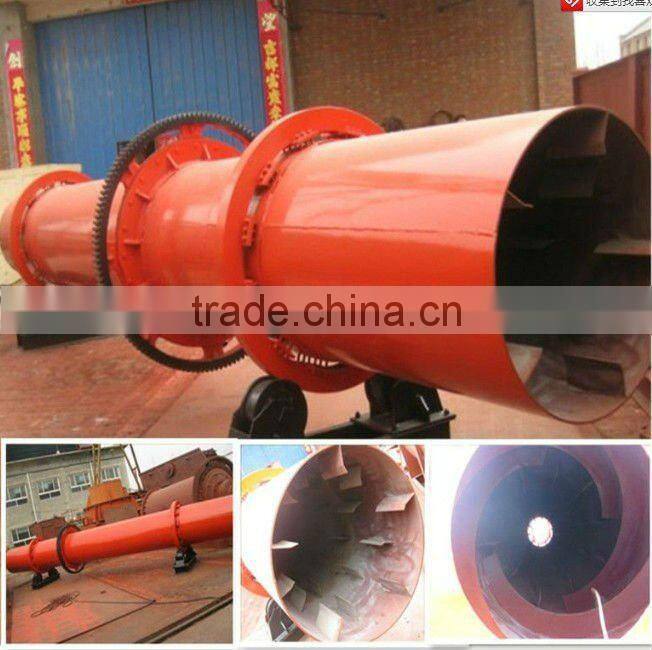

Cement Industry Slime and Fly Ash Rotary Dryer

Specifications

 Sell new process 140tpd-165tpd rotary dryer in different production line,

1.General condition

      Rotary dryer mainly consists of rotary body,raw material feeding plate,driving and supporting device,etc.its principle of operation:the raw material feeding plate which is arranged reasonalby with changeable angles in order,throws moisture materials into the rotary cylinder.then water will be separated from the materials by hot air-flow and be changed into vapour to be excreted to the air,thus,the drying process is finished.

   Rotary dryer is used to oven dry slage, clay and limesonte etc.it is mainly used for cement,chemical,metallurgical industries,its advantegous as follwoing:smooth rotation,low energy consumpation,easy opeartion and so on.

2.The technical parameter

  1.The type is 5.0x45.the capacity is 140-165tpd.

   2.The slope of kiln shell is 4%,there are 2 supports.

   3.The thurst roller type is hydraulic

   4.The main drive parameter:

       4.1The main motor type is YSN450L4-6,The rated power is 500KW.the speed adjusting range is 100-1000.the rated voltage is 690V

      4.2 The main gear box type is ZSY630,The total ratio is 28

  5.The auxliary drive parameter:

Drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc. Its principle of operation, the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed. Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.

Drier is used for drying materials with a certain humidity or granularityin milling of ores, building materials, metallurgy and chemical industry.

Rotary dryer has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable. For this reason.

Indirect heat transfer drier It is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used

Technical data Rotary Dryer:
