Home > Products > Special Vehicles > Concrete Truck Mixer 6*4 With Delong Chassis From Shaanxi Automobile Group

Concrete Truck Mixer 6*4 With Delong Chassis From Shaanxi Automobile Group

FOB Price

US$ 65,000 - 69,000 / Set

1 Set(Min. Order)

Port QINGDAO or SHANGHAI
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	SHACMAN
Model Number	JYC5250GJBSX4		Gross Vehicle Weight	25000

Product Description

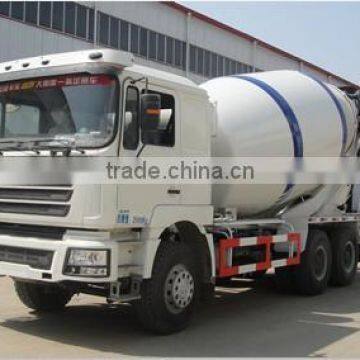

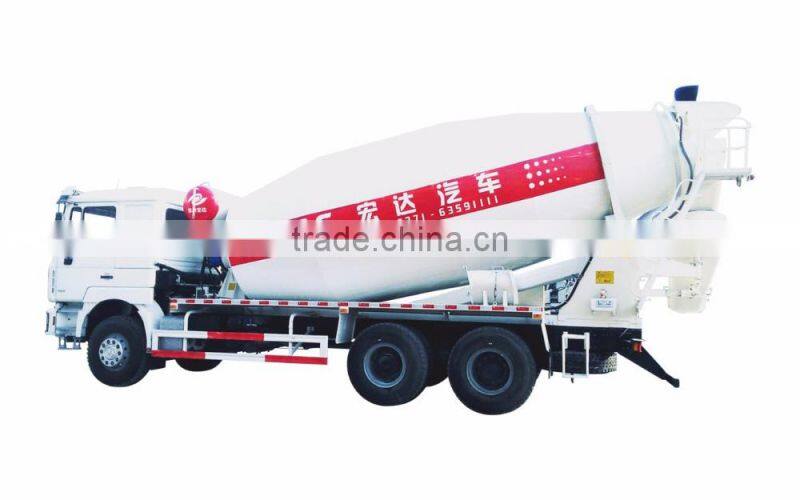

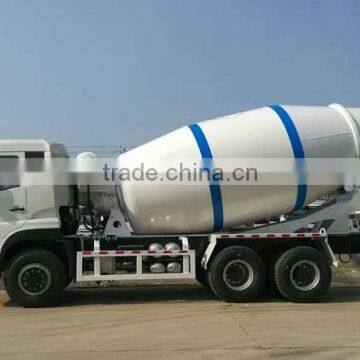

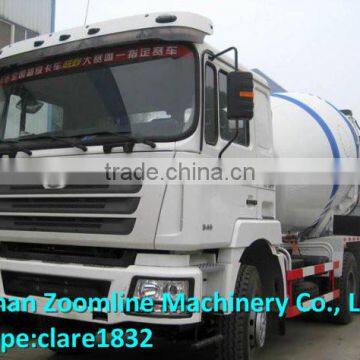

Concrete Truck Mixer 6*4 with Delong Chassis From Shaanxi Automobile Group

Concrete transport truck is used to transport concrete. Such devices are on the truck cylindrical mixing tube to carry the concrete after mixing. During transport always kept stirring drum rotation to ensure that concrete does not carry solidification. After the delivery of finished concrete, usually rinsed with water inside the mixing tube to prevent hardening of concrete space, so that the volume of the mixing tube is less and less.

Concrete mixer mainly has the undercarriage, the mixing tube, transmission (drive), hydraulic drive system, water system, installed (into) materials and material unloading system, discharge chute, platform, control systems and protective equipment.

Technicle Parameter:

JYC5250GJBSX4
Drive mode	6×4
Chassis model	SX5256GJBDR404
Engine	Model	WP10.336E40、WP12.336E40、WP12.375E40、ISM11E4 345、ISM11E4 385
	Max. power(Kw)	247、247、276、250、280
	Displacement(cc)	9726、11596、11596、10800、10800
	HP	336、336、375、345、385
	Fuel consumption(L/100Km)	37.08、37.21、37.33、37.01、37.21
	Type of fuel	Diesel
	Emission Standard	GB IV
	Max. speed(km/h)	77
Gearbox	FAST 9JS119T
Tyre	Size	11.00-20 18PR,11.00R20 16PR 12.00-20 16PR,12.00R20 14PR
	Overall dimension (mm)	9900,9400 x 2500 x 4000
	Wheel base (mm)	3775+1400；3975+1400
	Front/Rear tread(mm)	2036,1860/1860
	Front/Rear suspension(kg)	1525/3000,1525/2700
	Appr./Depa. angel (°)	20/18,20/19
	Axle Load(kg)	7000/18000(Dualaxial）
Mass	Payload(Kg)	10420, 10355
	Curb weight(Kg)	14450
	G.V.W(Kg)	25000
Special function	Mixing capacity(m³)	4.29
Material of Lateral protection	Q235A
ABS	XI'AN KING-TRUCK ELECTRON CO.,LTD, KORMEE AUTOMOTIVE ELECTRONIC CONTROL TECHNOLOGY CO.,LTD, ZHEJIANG VIE SCIENCE&TECHNOLOGY CO.,LTD
ABS	Type	ZQFB-V、CM4XL-4S/4K、VIE ABS-Ⅱ

Performance characteristics

1. Reliable quality and high operational stability

2. High strength, durable, and long service life

3. High working efficiency

4. Attractive appearance

5. Optional

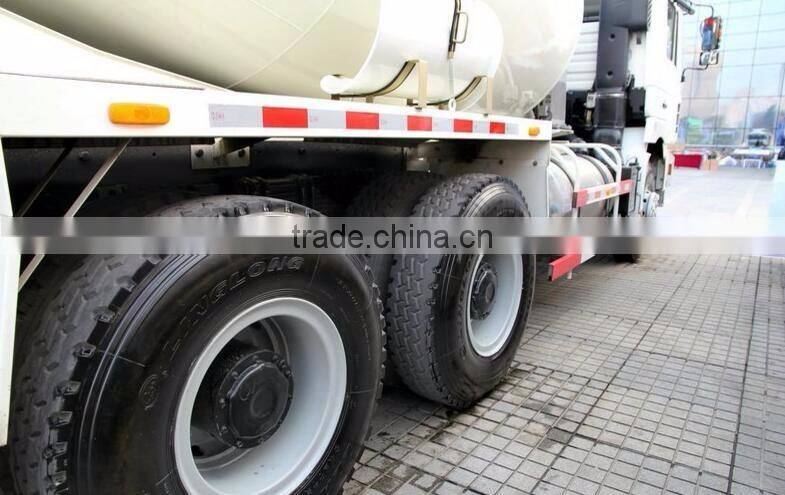

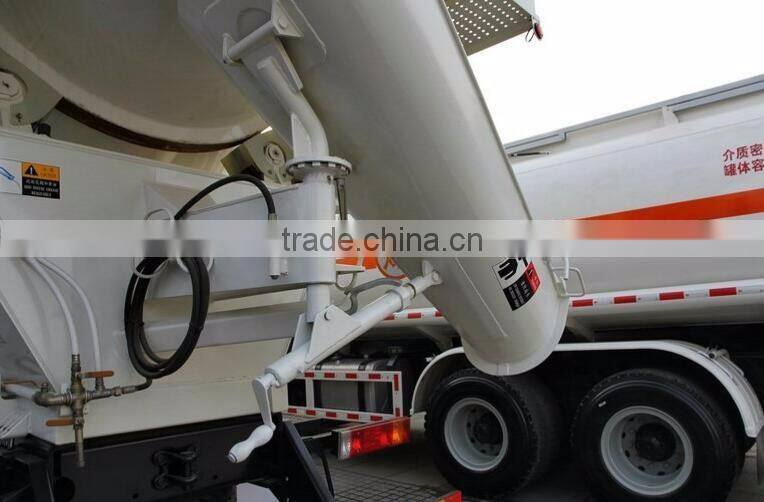

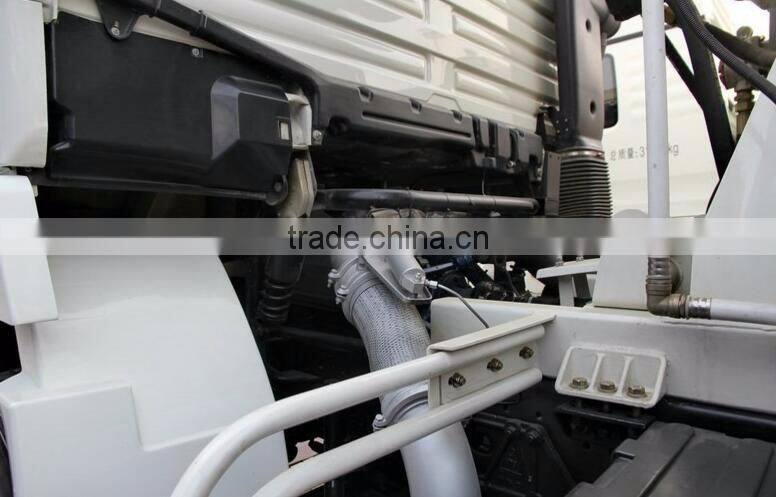

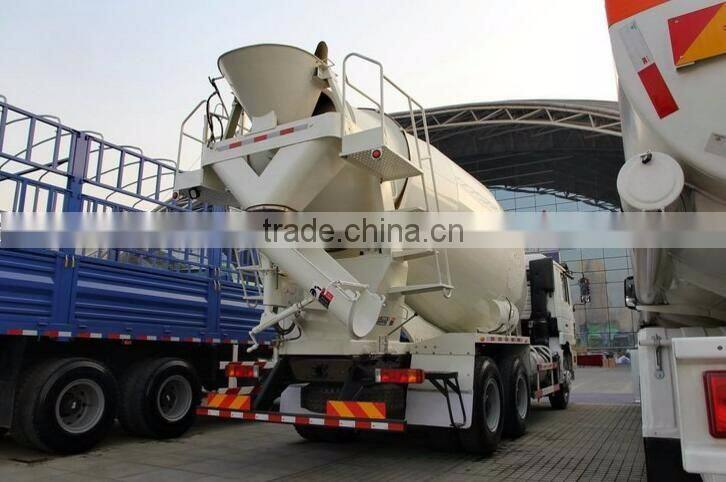

Detailed Images

Other Products

Our Company

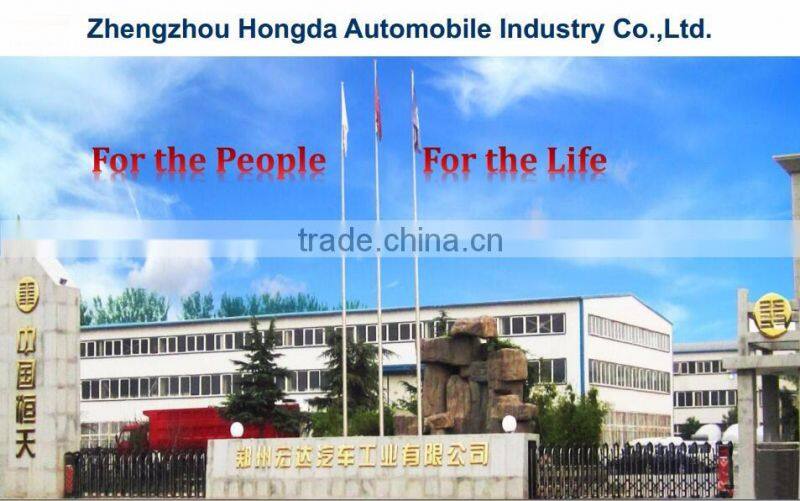

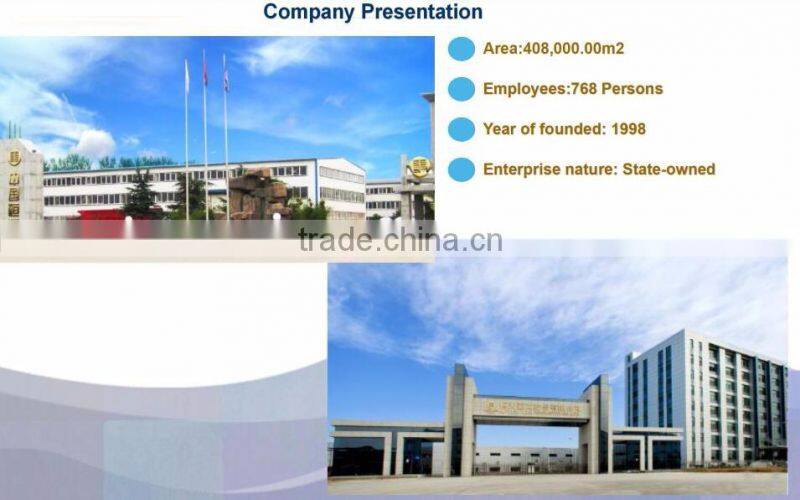

Company Profile

China Hi-Tech Group Corporation(CHTC) is a state-owned large scle central enterprise supervised by SASAC.

Hongda as one of the subsidiaries holded by CHTC is the designated manufacturer of the series of Special Vehicles, founded in 1998.

Packing & Delivery

1,Attached parts and tools put into standard export box.

2,Concrete transport truck will be cleaned and covered with wax before delivery.

3,Concrete transport truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,Some small concrete transport truckcan be put into container according to its overall dimensions.

We can ship construction machinery by various transportation tools.

(1) For 90% of our shipment, we will go by sea, to all main continents such as Middle East, Africa, Oceania and Europe, South America,etc. Either by container or RoRo/Bulk shipment.

(2) For neighborhood countries, such as Russia, Mongolia, Kazakhstan, Uzbekistan
etc.,we can ship construction machinery by road or railway.

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
