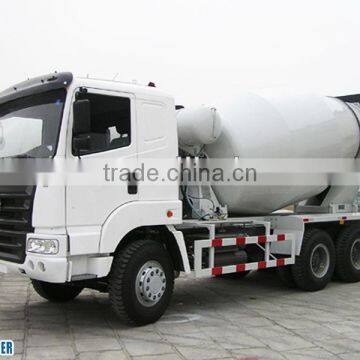

high quality 7m3 concrete Truck Mixer

FOB Price

USD $80,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Toper	Model Number	Drum Series concrete mixer
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Concrete truck mixer
1. Mixer truck
2.Cement truck mixer
3.Concrete truck mixer
4.Mobile concrete truck mixer

concrete truck mixer

Model:7m3 concrete truck mixer, 8m3 concrete truck mixer, 9m3 concrete truck mixer, 10m3 concrete truck mixer 12m3 concrete truck mixer
Specification:
Drum: Geometric volume (m3 ) :12.5-20.5
Effective agitate volume (m3) :7-12
Rotational velocity (r/min) 0~14 for all models
Rotation direction (from the rear of truck):Charge in clockwise, discharge in anticlockwise
Vane: Double-screw vane
Charge and discharge device:
Hopper (L×W) (mm):950×1000
main hopper length (mm):1600
The annex hopper length (mm):780
Water supply system: water pump (WP24-180B12) or (WP24-180B12)

Drum made by special anti-wear steel St-52 and 3990-type manganese steel
Minimum drum secretion due to special assembly apparatus
Fully sandblasted steel parts with double primer coating and final painting in heated paint oven
The compact hydraulic unit drives
High capacity water tank
Ecological cover (optional)

Technical Parameter
Item		7m³concrete truck mixer	8m³concrete truck mixer	9m³concrete truck mixer	10m³concrete truck mixer
Drum	Geometric volume	12.1	13.8	16.5	17.5
	( m³ )
	Effictive agitate volume	7	8	9	10
	( m³ )
	Effictive mixing volume	5	6	7.5	8.5
	(m³)
	Inclination angle	15	15	12	11
	Rotational velocity	0~14
	(r/min)
	Rotation direction (from the rear of truck)	Charge in clockwise, discharge in anticlockwise
	Vane	Double-screw vane
	Discharge Capacity	when the slump is 5cm ≥2m³/min
	Remnant	when the slump is 5cm ≤1%
Charge and discharge device	Hopper(L×W)	950 × 1000
	(mm)
	The main hopper length	1600
	( mm )
	The annex hopper length	780
	(mm)
