Portable concrete mixer truck for sale
- Qingdao Tianjin Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Toper | Model Number | T-8m3 | |
| Weight | according to the model | Dimension(L*W*H) | standard | |
| Power(W) | standard | Certification | ISO9001:2000 Quality System Certification | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
10CBM concrete mixer truck1. self loading
2. long transport distance
3. volumetric truck
4. perfect after-sales service
10CBM concrete mixer truck for sale
Features
Capacity ranges from 6m3 to 16m3
Self-loading, self-mixing, self-supplying water, self-discharging
Constraction machinery/concrete mixer truck/concrete transportation truck

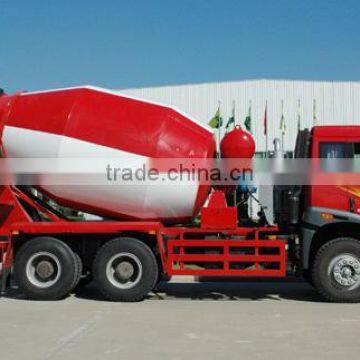

This type concrete mixer truck most widely used is the Cement Truck – Materials are loaded at a concrete mixing plant, Then the concrete is mixed in transit and delivered to job sites.
The concrete can be unloaded via a chute for ground level applications or the concrete is poured into a concrete pump system for high height applications.The capacity of concrete mixer truck ranges from 6 m³ to 16m³, meeting customers' various needs.
Main structure of the mixer machine
Classis; update, drive shaft hydraulic, reducer system; tanker; discharging; cleaning system; frame,; manual system; roller system; filling system; electric system.
Technical parameter of the mixer machine
Item |
| 7m³ concrete truck mixer | 8m³ concrete truck mixer | 9m³ concrete truck mixer | 10m³ concrete truck mixer | 12m³ concrete truck mixer | ||
Drum | Geometric volume(m³) | 12.1 | 13.8 | 16.5 | 17.5 | 20.5 | ||
Effective agitate volume(m³) | 7 | 8 | 9 | 10 | 12 | |||
Effective mixing volume(m³) | 5 | 6 | 7.5 | 8.5 | 10.5 | |||
Inclination angle | 15 | 15 | 12 | 11 | 11 | |||
Rotational velocity(r/min) | 0~14 | |||||||
Rotation direction(from the rear of truck) | Charge in clockwise, discharge in anticlockwise | |||||||
Vane | Double-screw vane | |||||||
Discharge capacity | When the slump is 5cm≥2m³/min | |||||||
Remnant | When the slump is 5cm≤1% | |||||||
Charge and discharge device | Hopper (L×W)(mm) | 950×1000 | ||||||
The main hopper length (mm) | 1600 | |||||||
The annex hopper length(mm) | 780 | |||||||
Water supply system | Water pump (WP24-180B12)or(WP24-180B12) | |||||||
Hydraulic system | Oil pump | A4VTG71 | A4VTG71 | A4VTG71 | A4VTG90 | A4VTG71/32R | ||
Motor | Deutschland Rexthroth | PLM7 | PLM7 | PLM9 | PLM9 | |||
AA2FM63 | (3in1) | (3in1) | (3in1) | (3in1) | ||||
chassis | Type of engine/Power | WD615.87/213
| WD615.69/247 WD615.87/213 | WD615.69/247 | WD615.69/247 | WD615.47/273 | ||
