Home > Products > Belt Conveyor System > Conveyor Impact Bar / Impact Bed for Belt Loading

Conveyor Impact Bar / Impact Bed for Belt Loading

FOB Price

US$ 20 - 30 / Piece

1 Piece(Min. Order)

Port QINGDAO or SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	ZOOMLINE
Model Number	Customized

Product Description

Conveyor Buffering Bed UHMWPE, Rubber Impact Bar, Conveyor Impact Bar

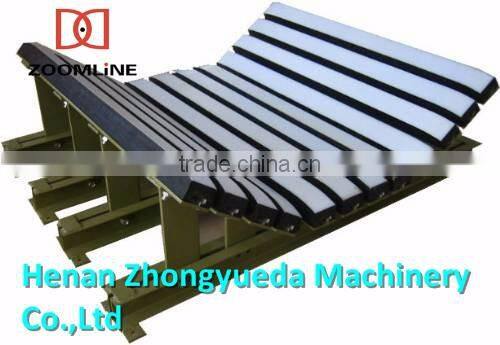

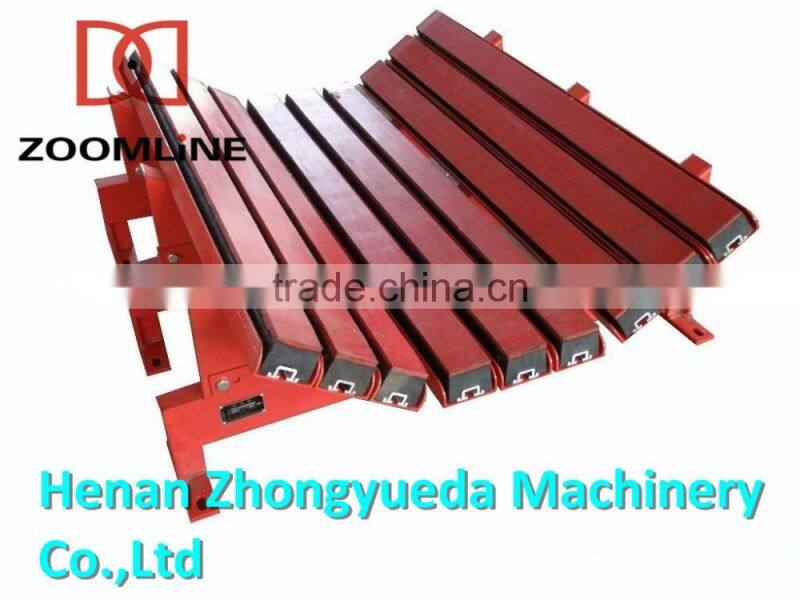

Impact bed is used in the loading area of the conveyor belt to replace the traditional impact idler.

It is designed to reduce shock and stress to the belt caused by the falling down materials, avoid abrasion and tear by sharp materials and prevent materials from falling and scattering.

1.Protect conveyor belt from falling materials.
2.Replaceable impact bars.
3.Abrasion-resistant UHMW.
4.Extend belt life.

Technical parameter:

1,Material of surface of impact bar: UHMW

2,Tensile strength: >25N/mm2

3,Elongation:> 350%

4, Impact strength: >10kJ/m2

5, Speeling stength: UHMW and Rubber>200N/cm
Rubber and aluminum frame >200N/cm

6,Tensile strength:> 15N/mm2

7,Elongation:> 400%

8,Hardness:Shore A 35~40

9,Framework of impact bar: Aluminum

10,Impact bar stand:Q235A;painting surface

Belt Width	Specification for Impact Bars *(Lengthwidththickness)*	Number of Bars (pc)
500 mm	*1000mm100mm75mm*	4
650 mm	*1000mm100mm75mm*	6
800 mm	*1200mm100mm75mm*	7
1000 mm	*1200mm100mm75mm*	8
1200 mm	*1400mm100mm75mm*	10
1400 mm	*1600mm100mm75mm*	13
1600 mm	*1600mm100mm75mm*	15
1800 mm	*2000mm100mm75mm*	16
2000 mm	*2000mm100mm75mm*	18

Main Features:

1. Avoids the damage to the belt through the contact between the bar and surface of belt.
2. The conveyor belt is stressed evenly in the loading area, which will reduce the daily maintenance cost. It effectively eliminates the spillage or scattering of the material caused by inequality of the stress on the belt.
3. The UHMW polyethylene surface has outstanding sliding properties, to reduce the frictional resistance to the minimum.
4. Ultra elastic rubber absorbs the impact in the maximum.
5. Each part of the impact bar is closely jointed by hot vulcanization.
6.“T-track” fastening device has different tightening points along the bar and make the joining strong and reliable, easy to install and remove.

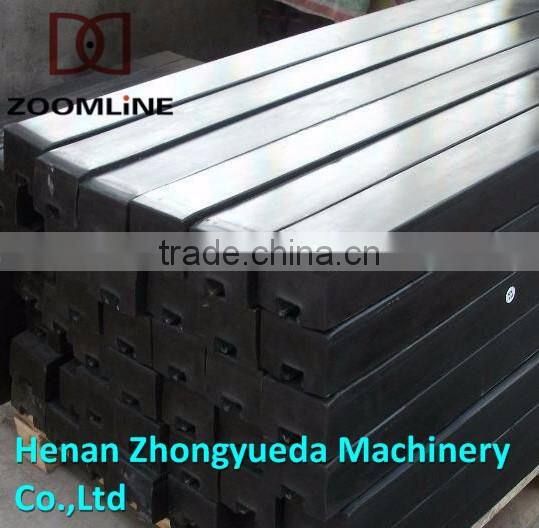

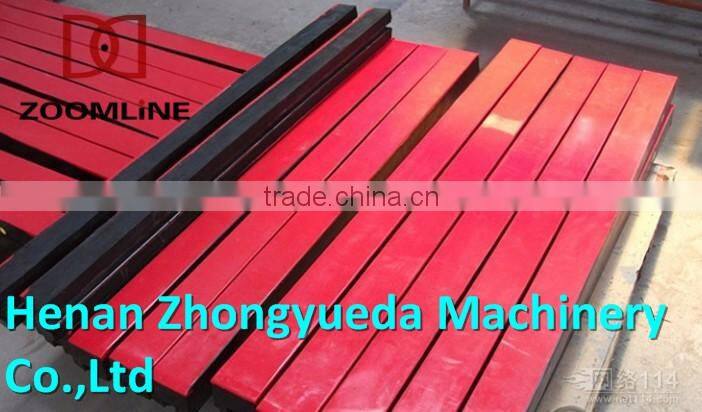

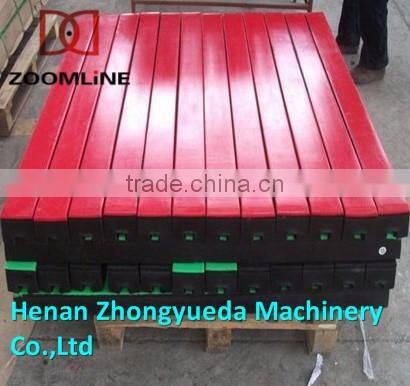

Detailed Images

Impact Bed Application:
---Mining & Minerals Industry
---Cement Industry
---Chemical Industry
---Coal Industry
---Salt Industry
---Ceramic Industry
---Sugar Industry
---Paper and Pulp Industry
---Iron and Steel Industry
---Pharmaceuticals Industry
---Textile Industry
---Leather and Plastic Industry
---Food Processing Industry

Packing & Delivery

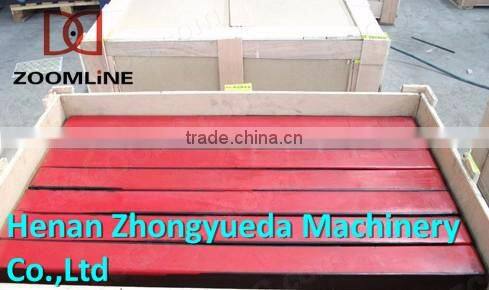

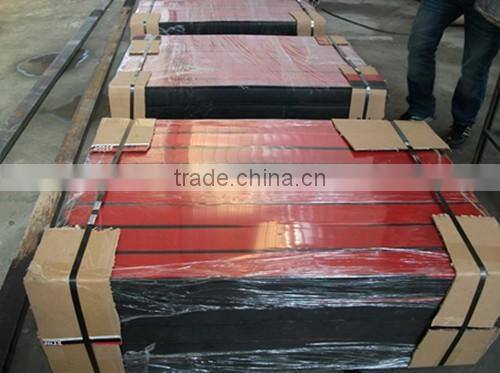

Packaging
Size	Customerized
Weight	According to QTY
Packaging Details	Conveyor impact bar will be packed in cartons, plywood cases, pallets or as your reques

AIR DILEVERY

SEA SHIPPING

FAQ

Q1.Do you have a minnimum order?
A.No MOQ.

Q2.Can you produce the product with my own brand?
A.Yes. We have been offering OEM services for more than 10 years.

Q3.Who are your customers?
A.Wholesalers, retailers, end-user, individual.

Q4.What's your lead time?
A.It's usually takes 10 to 20 days.

Q5.What are your payment terms?
A.T/T or L/C, 30% deposit in advance, 70% before shipment.

Q6.How will you ship my order?
A.By sea (FCL,LCL), by air, by railway.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Assisting our clients for foundation construction of equipments;
*Training the first-line operators on site;
*Providing technical exchanging.
