Self Cleaning High Quality Ceramic Pulley Used in Wet Environment

Self Cleaning High Quality Ceramic Pulley Used in Wet Environment

A conveyor pulley is a mechanical device used to change the direction of the belt in a conveyor system, to drive the belt, and to tension the belt.
Modern pulleys are made of rolled shells with flexible end disks and locking assemblies.

ZOOMLINE pulley laggings with ceramic modules display, compared to viscoelastic materials (elastomers), outstanding and proven wear behaviour. They are marked by significantly increased abrasion resistance while providing the highest friction forces to the friction partner. The design as ceramic friction module with a flexible elastomeric substructure is, in terms of pulley laggings, an ideal combination of materials that synergistically combines the benefits of its individual components.

Conveyor Pulley Type:
1: Drive Pulley
2: Bend Pulley/Turnover Pulley
3: Motor Pulley

Main Features of ZOONLINE Conveyor Pulley:

(1)Low friction coefficient, warterpoof, effective sealing System
(2)High accurate steel pipes ensure the rollers with low vibration and noise
(3)Multi-labyrinth seals achieve waterproof and dust proof.
(4)Adopt good bearing make sure the long lifetime, stable running and good quality.
(5)Stable running, good quality and attractive price.

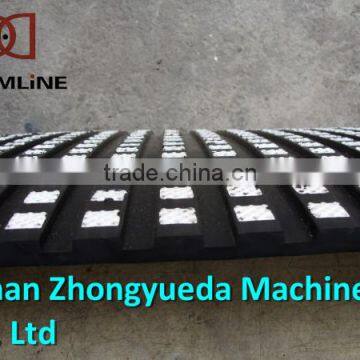

Ceramic Pulley Lagging-Belt Conveyor:
1. Improve conveyor belt performance, reduce belt slippage, improve tracking and extend life of belt;
2. Suite for pulleys where slippage and excessive wear and tear problems;
Has extra layer of special rubber at the bottom of ceramic pulley lagging;
Ensuring higher bonding strength to surface of conveyor pulley.

Features and Benefits of CEREAMIC PULLEY:
*Best in class 80% ceramic tile coverage
*Two to three times the friction of conventional rubber lagging
*Rubber-backed ceramic tiles with a raised “buttons” that embed themselves into the belt’s underside for *non-abrasive traction
*Exceptional performance in wet, muddy, or dry conditions
*None of the sharp particles or abrasive edges associated with other ceramic lagging products
*Fast, easy installation that doesn’t require removing the pulley from the conveyor

Description：
