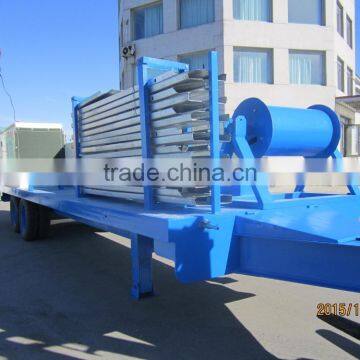

K Q span metal curving machine in Cyprus
- 30 Set / Sets per Month
- Dalian
- T/T
You May Like
Product Details
| Condition | New | Type | Arching Machine | |
| Tile Type | Colored Steel | Use | Other, Roof and wall | |
| Production Capacity | 4m/min | Place of Origin | Liaoning, China | |
| Brand Name | CS | Model Number | CS 914 | |
| Power(W) | 20KW | Voltage | 380V | |
| Dimension(L*W*H) | 1.5*1.9*2 | Weight | 4T, about 4 T | |
| Certification | CE | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Length: Approx. 10.5m
2. Width: Approx. 2.25m
3. Height: Approx. 2.3m
4. Wight: Approx. 10000kg
5. Axle: Three at 3630 kg capacity
6. Wheel/tires: Six
7. Towing:adjustable draw bar height from 80mm-160mm with 80mm round hitch.
8. Drive System: All hydraulic system
9. Power Plant: Diesel Engine:40HP
10. Fuel tank capacity: 68 liter
11. Construction: All steel and burnished aluminum construction, precision forming rollers with hard chrome plating.
12. De-coiling Device: 10tons capacity
13. Plant: Premium urethane enamel over epoxy primer (white)
14. Panel Support System: Custom designed, using steel with self locking stands
15. Panel forming speed: Approx. 15 meters/min
16. Curving Speed: Approx. 13 meters/min
17. Seaming Speed: Approx. 6 meters/min
18. Minimum Radius: 3.65 meters
19. Steel Coil Capacity: 1.50 mm maximum thickness
20.0.70 mm minimum thickness
21. Maximum Building Size: 26 meters wide, widths are calculated using liberal code parameters from the International Building Code.
6. Wheel/tires: Six
7. Towing:adjustable draw bar height from 80mm-160mm with 80mm round hitch.
8. Drive System: All hydraulic system
9. Power Plant: Diesel Engine:40HP
10. Fuel tank capacity: 68 liter
11. Construction: All steel and burnished aluminum construction, precision forming rollers with hard chrome plating.
12. De-coiling Device: 10tons capacity
13. Plant: Premium urethane enamel over epoxy primer (white)
14. Panel Support System: Custom designed, using steel with self locking stands
15. Panel forming speed: Approx. 15 meters/min
16. Curving Speed: Approx. 13 meters/min
17. Seaming Speed: Approx. 6 meters/min
18. Minimum Radius: 3.65 meters
19. Steel Coil Capacity: 1.50 mm maximum thickness
20.0.70 mm minimum thickness
21. Maximum Building Size: 26 meters wide, widths are calculated using liberal code parameters from the International Building Code.
1. Length: Approx. 10.5m
2. Width: Approx. 2.25m
3. Height: Approx. 2.3m
4. Wight: Approx. 10000kg
5. Axle: Three at 3630 kg capacity
6. Wheel/tires: Six
7. Towing:adjustable draw bar height from 80mm-160mm with 80mm round hitch.
8. Drive System: All hydraulic system
9. Power Plant: Diesel Engine:40HP
10. Fuel tank capacity: 68 liter
11. Construction: All steel and burnished aluminum construction, precision forming rollers with hard chrome plating.
12. De-coiling Device: 10tons capacity
13. Plant: Premium urethane enamel over epoxy primer (white)
14. Panel Support System: Custom designed, using steel with self locking stands
15. Panel forming speed: Approx. 15 meters/min
16. Curving Speed: Approx. 13 meters/min
17. Seaming Speed: Approx. 6 meters/min
18. Minimum Radius: 3.65 meters
19. Steel Coil Capacity: 1.50 mm maximum thickness
20.0.70 mm minimum thickness
21. Maximum Building Size: 26 meters wide, widths are calculated using liberal code parameters from the International Building Code.
