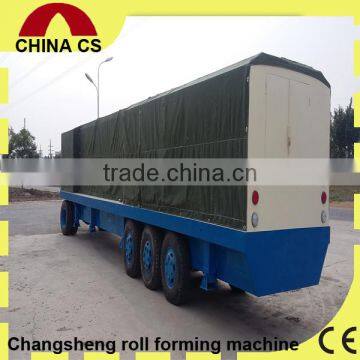

CS-1000-550 Multiple Shape SUBM Forming Machine/Curving Machine

  Machine

Panel Drawings

Differences among Generation I, Generation II, Generation III

Our machine is generation 3 ,mobile factory,multiple shapes by one machine

Generation I: Two steps producing, first step: straight panel, second step: curving step.

Straight Part: feeding--forming--cutting Curving Part: feeding--curving

Generation II: Revolution of producing process. One step to producing both straight panel and curving panel. Compared to Generation I, there will be 30% labor reducing at project site. The working speed at project site will be 20% improved.

feeding-forming-cutting-curving

Generation III: With diesel truck and 8T crane. The constructor can drive the truck everywhere. Only one step you can get the profile you need, and no workers are needed to hold and carry the sheet. When the sheet comes out, the crane on the machine will lift and fix it easily. Compared to Generation I, there will be 80% labor reducing at project site. The working speed at project site will be 70% improved.

Advantages Of Generation 3

1.Compared with traditional american machine,the workers can be reduced 50% and the working speed can be increased 40% at construction site.

2.This mobile factories are taken to the construction site and computer designed archs from galvanized steel are fabricated in a matter of hours.

3.Self sopporting arch without any columns and beams,in spans from 5 meters to 45 meters are seamed together and placed in simple concrete foundations.

Work Progress:

Shapes

Project

Accessories

Specifications

Parameters

The size of the machine with the crane: about 12500mm × 2500mm × 3000mm

Electrical standard: 380V/50HZ/3PHASE

Total Weight: about 13000KG

Total power: 38KW

Main motor of forming: 7.5 KW*1

Motor for big gear: 7.5KW*1

Motor for small gear: 5.5KW*1

Motor of cutting: 4.0KW*1

Motor with reducer for arch sheet: 5.5KW*1 +4.0kw*2

Material of rollers: 45# steel and 60# steel, quenched HRC 58-62

Material of roller shafts: 45# steel, quenched HRC 58-62

Material of cutting blade: Cr12 1 Mov steel

Material of steel leaves: stainless steel

Step of rollers: 13 steps vertical type

Working Speed: straight part: 13m/min; bending: 6-8m/min;seaming:6m/min

Feeding width: 1000mm

Effective width:550 mm

Material utilization: 55%

Suitable for long span: ≤38M

Thickness of the coil: 0.8-1.5mm

The Omron PLC and CNC system

Mobile type with trailer and wheel

A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.

Q:Can you accept OEM?

A:We can accept OEM.

Q:Can you produce machine as our requirement?

A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.

Q:Can you pay on delivery?

A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.

Q:What is your MOQ?

A  one set.
