Brief Introduction Of Ring Die

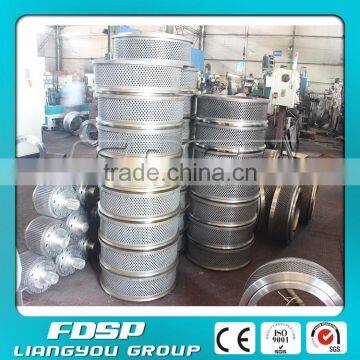

Ring die is the key part of Ring Die Pellet Mill in the large scale pellet plant to produce animal feed, wood pellets, poultry feed,livestock feed,aqua feed, bio-mass pellet and other granules.

The quality of ring die plays an important role in making high quality pellets and high output,also can save much maintenance cost for pellet manufacturers.

LiangYou is a reliable ring die manufacturer who can supply you top quality ring dies .We can customized design for various brand of pellet mill, such as: CPM, Matador ,Muyang, Paladin, Promill, Buhler, Zhengchang, Mabrik, Matador, Sogem, Andritz Sprout, Yemmak, etc.We can also make as per customers' drawing.

  For bio-mass Pellet

For Feed Pellet

Main Features

1,Hole smooth,long working life and high output

2,Competitive price

3,Quick delivery

4,About 20years of production experience

5,Quality control:ISO9001:2000

6,Hole Diameter:Feed size 2-12mm; wood pellet size 6-12mm or other sizes customized

7,Wear resistance,corrosion resistance,heat resistance,fatigue resistance,impact resistance.

Ring die pellet mill working principle

The basic structure of the pelletizing chamber is mainly composed of these parts: the die, the rollers, feeding scraper and cutting knives.

When the machine is started, the electric motor will drive the ring die to rotate. And the rollers will also revolve on its own axis due to the friction between itself and the die. By means of gravity and the centrifugal force generated by rotating of the ring die, material will be firmly attached to inner surface of the ring die. The feeding scraper will ensure the material to be continuously and evenly pushed forward along the die to be prepared for pelletizing.

Then the material is squeezed by the roller and the die, and with the gradually increasing pressure, the density of the material also becomes higher. Thus the material temperature will rise, which softens the lignin in it and makes it easier to be shaped. At this time, the material is compressed into the die holes and shaped into small cylindrical strips with diameters of 2 - 12 mm (depending on the size of the holes).

Die Materials

1. Alloy dies

This is the choice for many feed processors because of their good abrasion and breakage resistance.

2.  Carbon steel die

They have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals.

3. Stainless steel dies

They have the best abrasion and  breakage resistance as well as good corrosion resistance.

Process Of Ring Die

1,Precision Machining

CNC machining center :assure high dimensional accuracy,geometric tolerance and surface roughness.

2,Hole Machining

Our company's die is made by international advanced German gun drill, tools and drilling hole software.Which ensures process conditions as drilling required, therefore high pelleting output, quality and debugging convenience

3,Vacuum Hardening

American vacuum furnace:High vacuum degree, no oxidation reaction in ring die surface, ensuring original smoothness of die hole inner surface ,has long service life and high quality. High cooling speed ensures more even distribution of carbide hardenability and uniformity of ring die.

Relation between die hole structure and pelleting

1,Straight hole and release stepped hole

It is suitable for compound feed processing

2,External conical hole

It is suitable for the processing of high-fibre feed like de-fat chaff

3,Internal conical hole and compression-type stepped hole

This applicable for the process of herbage powder feed of light proportion

We should try to avoid using release stepped hole(pressure-relief vent)

Because discharing is not easy for holes in the rows of the edge of ring die, pressure-relief vent is designed there.

We need to maintain and check the pellet mill's spare parts: ring dies, roller assembly,roller shell, gear shaft,screws, bearings, coupling etc. Because they are take up about 8% of the machine cost every year (primary for such as wood chipper, hammer mill and pellet mill.)

Our Work Shop

Jiangsu Liangyou International Mechanical Engineering Co., Ltd is affiliated to Jiangsu Liangyou Agro Machinery Co., Ltd which has about 20 years of experience in the comprehensive development and utilization in agriculture field.

FDSP has sold feed machinery ,fertilizer machinery , bio-energy equipments and Installation for complete engineering, ring die and Roller Shell ,etc throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.
