Hammer Blades/Hammer Slice/Hammers for Grain Hammer Mill Machine

Hammer Blades/Hammer Slice/Hammers for Grain Hammer Mill Machine

Introduction of FDSP Enterprise

FDSP is a professional manufacturer ofmaize grinding machine, wheat grinding machine, rice grinding machine, corn grinding machine, soybean grinding machine, sorghum grinding machine, barley grinding machine, with high quality hammer beaters, hammer blades, and screener spare parts etc.

Except the hammer mill machine, we also produce feed mixer, ring die pellet mill, feed cooler, crumbler, screener, bagging machine etc. We can also provide turn-key solution for your animal feed project.

Brief Introduction of Hammer Blade
Hammer Blade is the most important part of hammer mill, it keeps hammer mill operating efficiently, but it is also the easiest wearing part. Our hammers are manufactured from high-strength carbon steel and finished with industry-leading hardfacing technology which designed for the most demanding applications.

The hammer's shape, size, arrangement and producing quality have a large impact on the grinding efficiency and finished product quality.

We can inspect your current hammers and evaluate what type of hardfacing pattern would be more beneficial to your production process. We can design and build hammer sets to decrease downtime and increase efficiency when changing hammer sets.

Features of Hammer Blades

1. The hammer blade are the most important part as well as most easy wear part of hammer mill. The shape, size, arrangement and quality of hammers have great effect on smashing efficiency and product quality.

2. The hammer beater quality has three aspects: material, thermal treatment and processing accuracy.

• Material and Thermal Treatment: Nowadays the main material for making hammers are low-carbon steel, medium carbon steel and special cast iron etc. Thermal treatment and surface hardening (including surface carburization and quenching as well as up-welding with tungsten carbide etc.) can improve wearing resistance performance of hammers and improve working life.
• Processing Accuracy: Hammers are a kind of high-speed running component, the manufacturing accuracy of which has much influence to rotor balance of hammer mill. It is required that on the same rotor, the weight difference between any two group hammers shall be not more than 5g. So the manufacturing accuracy shall be strictly controlled, especially for hammers by up-welding with tungsten carbide.

3. Hammer Blade shall strike materials directly, so they break down easily and shall be changed most frequently. Hammer abrasion means the working angle was broken, and the hammer is scrap if four working angles are broken.

4. The number and arrangement of hammers influence rotor balance, material distribution in crushing room, hammer wearing uniformity and working efficiency of hammer mill.

5. The linear speed at the end of hammer has great effect on working performance of hammer mill.

We have our brand SFSP Series Hammer Mill machine (SFSP568, SFSP668, SFSP998, SFSP999) with hammer blades for grain grinding, widely used for feed mills, oil plants, alcohol plants, etc.

Pictures of Hammer Mill Machine

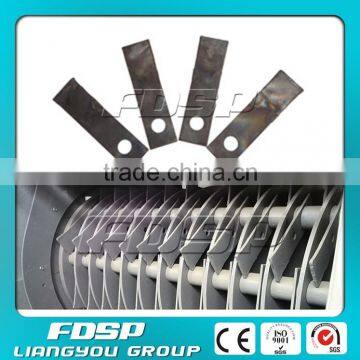

Pictures of Hammer Blades

Drawing for Reference

P.S.: We can customized various kinds of hammer blade, hammer beater spare parts according to the drawing you provided.

Packing: Iron Case
