Four batching hoppers MD1200 portable mobile concrete mixing plant

 MD1200 Patented Mobile Concrete Batching Plant

MD mobile concrete batching plant is designed by our Research and Development Department with two years.Sloving the problems existed in traditional concrete mixing plants.Compared with MC series mobile concrete batching plant,it added one more batching hopper,so it can be used for batching the concrete which include more than 4-5 kinds of material.

Comparison between Traditional concrete mixing plants and New designed concrete batching plants.

1.Working area

Traditional concrete mixing plants needed a large floor area.Model HZS25 Capacity at 25m3/h needed 19.8m*11.2m area.Land rent is rising now.New designed concrete batching plants needed only 11.8m*3.1m with same capacity.

2.Mobility

Traditional concrete mixing plants cannot move once builded,limited the mobility and increasing the costs of transportion of finished concrete.New designed concrete batching plants can be moved based the process of engineering and construction,with the help of one truck.

3.Foundation

Traditional concrete mixing plants needed to build concrete foundation before production,New designed concrete batching plants designed with stress legs,it can start work right now as you balanced the lifting legs

4.Site Operation

Traditional concrete mixing plants cannot work in city or on road.New desighed concrete batching plants solve this problem.

5.Accessory Equipments

Traditional concrete mixing plants needed more accessory equipments at work,like aggregate weighing hopper,aggregate hoisting skip or more longer conveyor belt,steel frame,control room.New designed mobile concrete mixing plants can also complete the work without too much accessory equipments.

6.Equipment Maintance

Traditional concrete mixing plants increaing maintance rate for it's lots of accessory equipments,New designed mobile concrete batching plants have the founation of  self-diagnostic and maintance procedure.

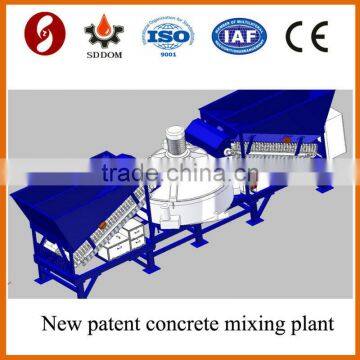

3D design drawing of the plant

 Whole plant with belt conveyor and cement silo

Picture Details

Batching hopper

Mixer

Hydraulic Discharging System

Inside of the mixer

High press washing system

Control System---Electric Control Cabinet

 Load in a 40HQ container
