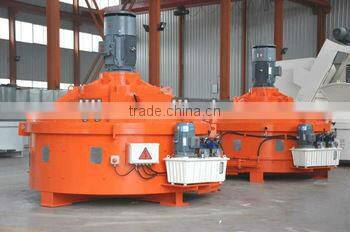

Planater Concrete Mixer Pan Concrete Mixer
- Qingdao
- T/T L/C Credit Card
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | Jianling | |
| Model Number | MP series | Power(W) | 18.5/30/75/90/110kw | |
| Certification | TUV,ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Excellent mixing performance2.Auto operation
3.Long time guarantee
4.Competitive price
5.Perfect after-sales service
Features of Planetary Concrete Mixer:
1. Steady Driving.
The power transmission is realized by a hard surface gearbox
2. High Mixing Efficiency.
The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.
3. Homogeneous Mixing.

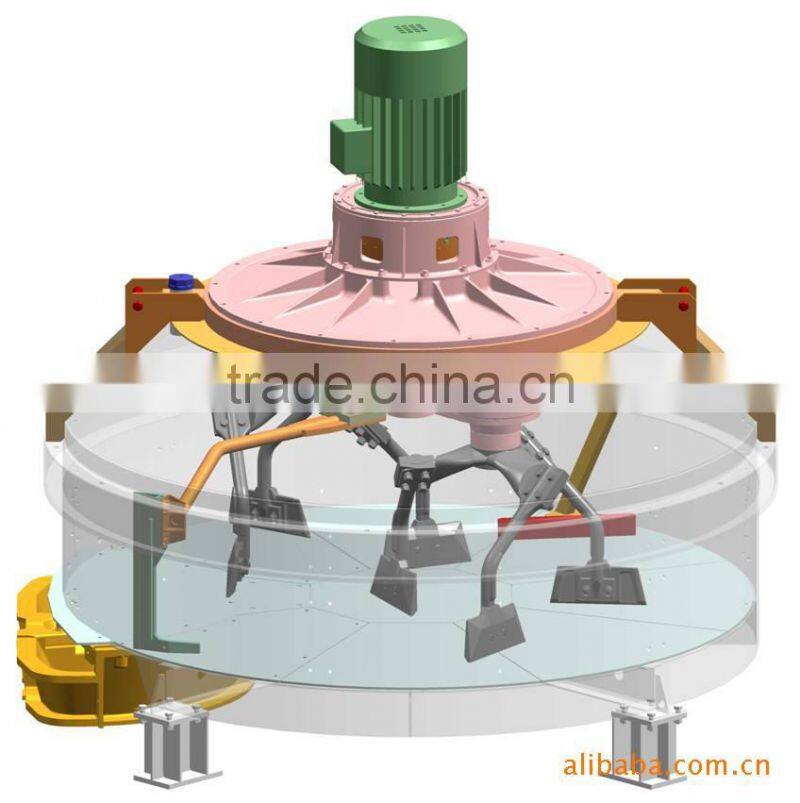

Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades’ motion track covers the whole drum after a cycle.
4. Multiple Discharging Method.
According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.
5. Special Designed Water Sprayer
Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.
6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. It’s convenient for maintenance and there is no leakage problem at the shaft end.
Planetary Concrete Mixer technical parameter:
Planetary Concrete Mixer
Model | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
Output capacity(L) | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
Input capacity(L) | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
Out mass(kg) | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
Mixing power(kw) | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
Discharging power(kw) | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 |
Scraper(nr) | 1/2 | 1/3 | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 |
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharging paddle(nr) | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Weight(kg) | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
Outline dimension(mm) | 2220*2071*1880 | 2581*2336*2195 | 2891*2602*2217 | 3223*2902*2425 | 3625*3230*2630 | 2893*3550*2695 | 3893*3550*2975 |
Lifting power(kw) | 4 | 7.5 | 11 | 15 | 22 | -- | -- |
Skipper capacity(L) | 870 | 1300 | 1740 | 2610 | 3480 | -- | -- |
Skipper mass(kg) | 1305 | 1950 | 2610 | 3915 | 5220 | -- | -- |
Skipper speed(m/s) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | -- | -- |

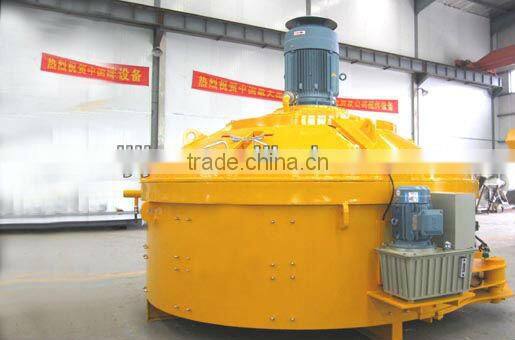

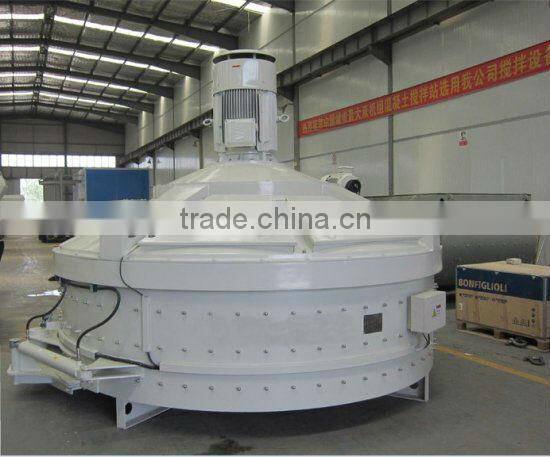

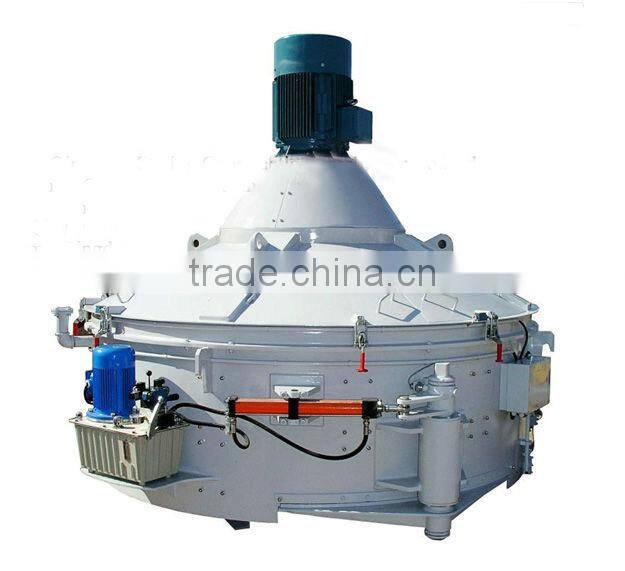

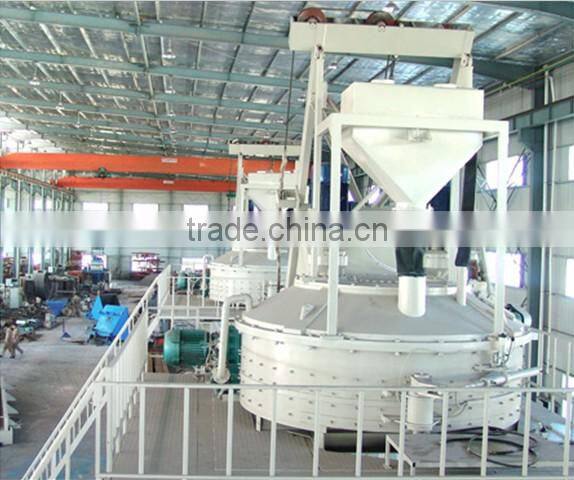

Photos:
Certificate:

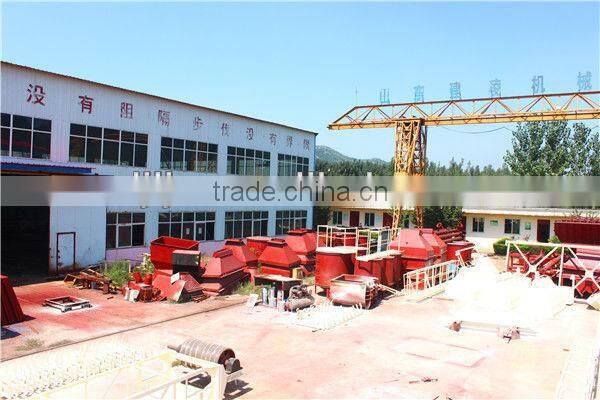

Welcom to our factory:
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. Offer skillful after-sale-service specialists are available for all customers.
The reasons you choose us:
1. Factory homegrown.So more competitive price than trade company.And we can supply any model you need.
2. '3P'standard:Professional team. Perfect quality.Perfect service idea.
3. Perfect after-sale-service.
4. Best manufacturer with TUV,ISO9001 over 15 years.
5. We accept many kinds of payment & trade terms.
THANK YOU VERY MUCH FOR YOUR ATTENTION TO JIANLING MACHINERY!

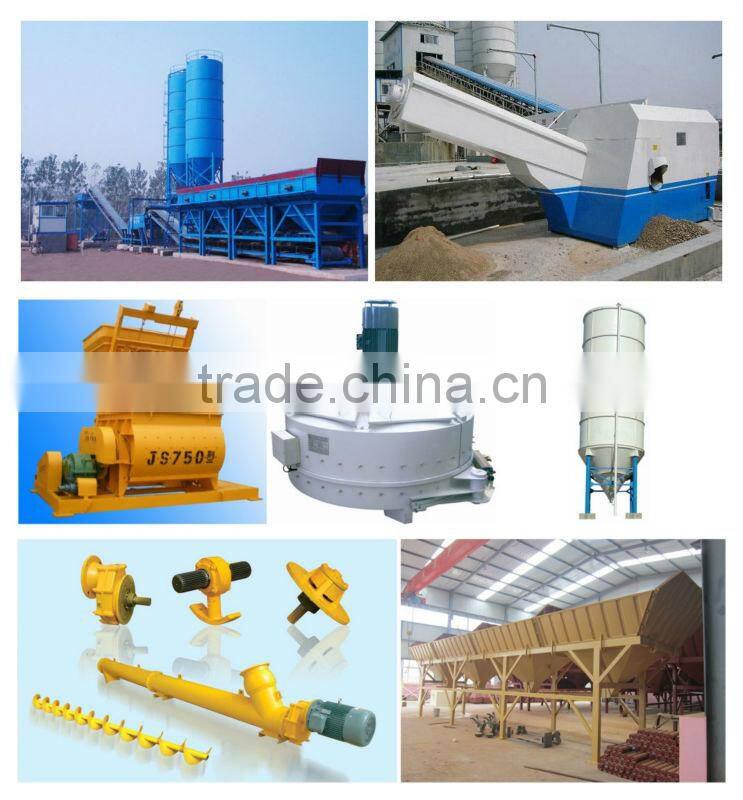

Related products we supply:
Series of Concrete Mixer
Concrete Mixing Station
Concrete Relaimer
Screw Conveyor and Cement Silo
If you buy two or more kinds of machinery we'll give you unexpected super cheap!!
PLEASE FEEL FREE TO CONTACT US AS FOLLOWS IF THERE IS ANYTHING WE CAN DO FOR YOU!!!
