Mobile Concrete Batching Plant HZS25 Mini Concrete Mixing Plant

FOB Price

US$ 25,000 - 150,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Other, Electric, Electric
Place of Origin	Shandong, China	Brand Name	Jian Ling
Model Number	HZS25	Power(W)	18.5
Dimension(LWH)	22000x10000x9000	Weight	15000Kg
Certification	CE ISO9001 TUV	Warranty	1 years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

HZS25 concrete batching plant
1.Productivity:25m3/h
2.JS500 & PLD800
3. Free operation train
4.CE,ISO.TUV

Packaging & Shipping

Packaging Detail:	standard exporting package or based on customers' requirements
Delivery Detail:	within 15 days after deposit

Product Description

HZS25 Concrete Baching Plant

1. HZS25 is a large-scale concrete mixing equipment, combining material storage, measurement

and mixing, with high output. Can mix all kinds of concrete, especially hard concrete.

2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.

3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.

4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process

Main technical parameters of HZS series concrete baching plant

Model		HZS25	HZS40	HZS50	HZS75
Theoretical Output Rate (m³/h)		25	40	50	75
Mixer	Model	JS500	JS750	JS1000	JS1500
	Power(kw)	18.5	30	18.5×2	30×2
	Discharging Capacity	0.5	0.75	1	1.5
Production Cycle(s)		72	72	72	72
Capacity of Aggregate Storage Bin m³		3×4	3×4.5	3×8	3×8
Measuring Accuracy %	Aggregate	±2	±2	±2	±2
	Cement	±1	±1	±1	±1
	Water	±1	±1	±1	±1
	Additive	±1	±1	±1	±1
	Coal Ash	±1	±1	±1	±1
Matching Cement Bin		SNC50	SNC100	SNC100	SNC100
Matching Cement Screw Conveyor		LSJ40	LSJ40	LSJ40	LSJ80
Matching Coal Ash		SNC50	SNC100	SNC100	SNC100
Matching Coal Ash Screw Conveyor		LSJ40	LSJ40	LSJ40	LSJ40
Discharge Height( m)		3.8	3.8	3.8	3.8

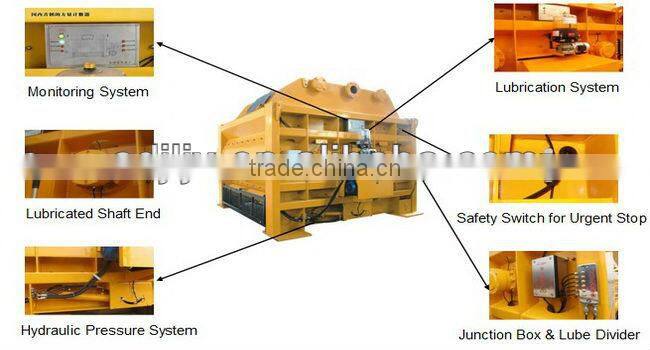

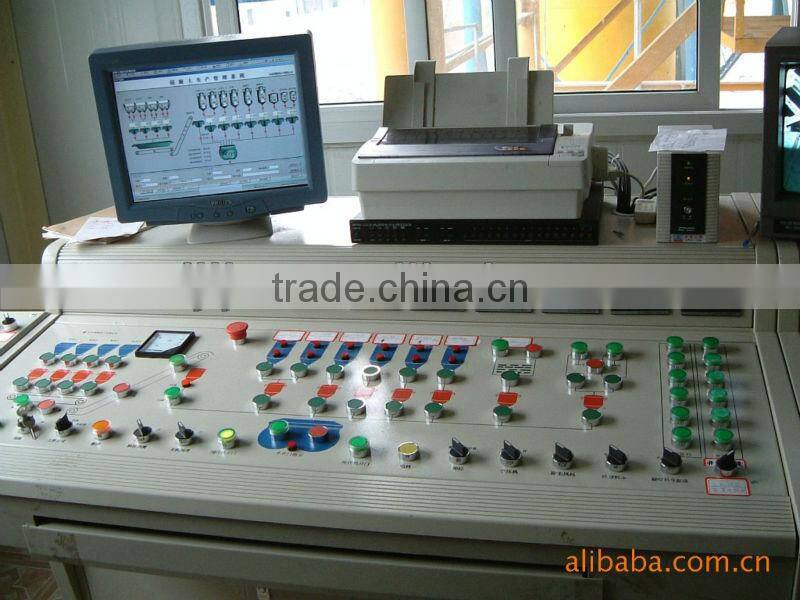

Potos of HZS Series concrete batching plant
