Home > Products > HLS Concrete Mixing Plant > concrete batching plant HZS120 ,concrete mixing plant
concrete batching plant HZS120 ,concrete mixing plant
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | JIANLING | |
| Model Number | HZS120 | Power(W) | 127kw | |
| Certification | ISO TUV CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

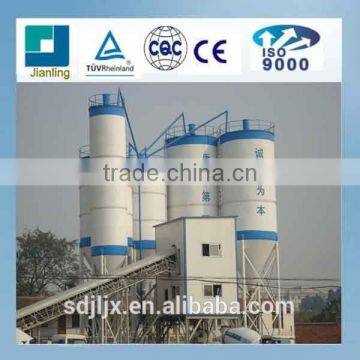

concrete batching plant HZS120
Shandong Jianling Machinery Co., Ltd. is a professional manufacturer of concrete mixing and conveying machinery and has 25 years of production experience.
Features of concrete batching plant
1. HLS series second-order concrete batching plant adopts biaxial horizontal double-shaft compulsory concrete mixer. with even mixing quality.
2.Lump-sum aggregate equipped with the same capacity of mixer, the productivity was 15% higher than the mixing plant 30%.
3.Aggregate, water ,admixtures weighing, control ,signal conversion device adopts imported components, high precision sensor, automatic control of microcomputer, each weighing or cumulative weighing, weighing precision and stable performance
4. The complete machine is under computer control, making both automatic control and manual operation available.
5. The tower appearance looks orderly and magnificent, with main body closed with insulation board or single-layer color coated sheet; the tower inside is clean and enjoys good environment-friendly performance.
Main Technical Parameters of concrete batching plant
HZS Series of Concrete Mixing Plant Main Technical Specifications | ||||||
Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS200 | |
Production (m3/h) | 60 | 90 | 120 | 180 | 200 | |
Mixer | Type | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Power (kW) | 2x18.5 | 2x30 | 2x37 | 2x55 | 2x75 | |
Output (m3) | 1 | 1.5 | 2 | 3 | 4 | |
Grain Size (mm) | <=60 | <=80 | <=120 | <=150 | <=150 | |
Batcher | Hopper Capacity(m3) | 20 | 20 | 20 | 30 | 40 |
Hopper Quantity | 3 | 4 | 4 | 4 | 4 | |
Conveyor Capacity(t/h) | 600 | 600 | 800 | 800 | 1000 | |
Weighing Scope | Aggregate(kg) | 3x1500+(-)2% | 4x2000+(-)2% | 4x3000+(-)2% | 4x4000+(-)2% | 4x4500+(-)2% |
Cement (kg) | 600+(-)1% | 1000+(-)1% | 1200+(-)1% | 1800+(-)1% | 2400+(-)1% | |
Cols ash (kg) | 200+(-)1% | 500+(-)1% | 500+(-)1% | 500+(-)1% | 1000+(-)1% | |
Water (kg) | 300+(-)1% | 500+(-)1% | 600+(-)1% | 800+(-)1% | 1000+(-)1% | |
Admixture (kg) | 30+(-)1% | 30+(-)1% | 50+(-)1% | 50+(-)1% | 100+(-)1% | |
Total Power (kW) | 92 | 108 | 127 | 178 | 240 | |
Discharge Height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
Note: | ||||||
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in jinan China.
5. We accept all kinds of payment & trade terms.
6. with advanced technology and prompt service, we build long business with world customers, such as Canada,Poland,Russia,Kazakhstan, Azerbaijan ,
Canada,Poland,Russia,Kazakhstan, Azerbaijan, Mongolia, Saudi Arabia, UAE, Yemen, Algeria, Malaysia, Indonesia, Philippines. Etc.we have good experience in servicing customers abroad.
Complete after-sale service system
1.Warranty:1 year.
2.Eengineer is available to service abroad.
2.In the overall process,provide installation instruction and debugging for customers and train operating staff free of charge.
3.Techincal assistance is avaible in 24 hours.
*We can customize according to your requirements, welcome to enquire.
We also manufacture concrete mixer, concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo, if you are interested in our products, please do not hesitate to contact us, we will offer the best quality and the most competitive price to you, thanks.
Factory:
_____________________________
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery. The Company has long been dedicated to transforming traditional industry with high & new technology through international cooperation, so as to realize leapfrog development and make “JIANLING” a prestigious Chinese brand.
Certificate:
