Home > Products > Marine Airbag > China Sunk Ship Lifting Airbags
China Sunk Ship Lifting Airbags
- Qingdao
 - T/T Credit Card PayPal

You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Florescence | |

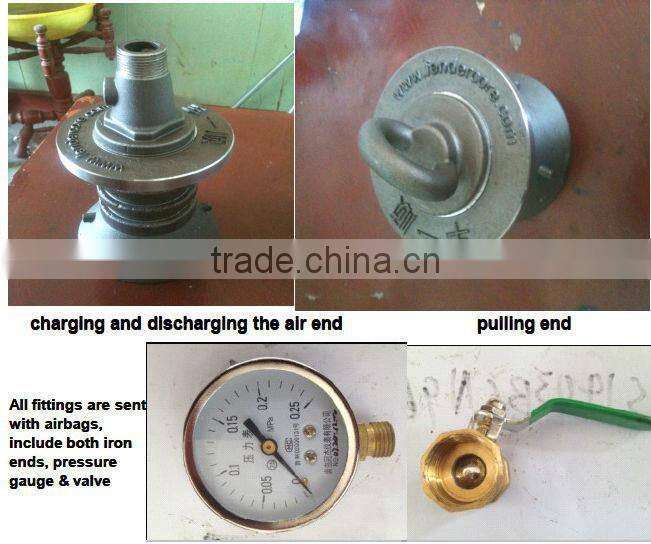

| Model Number | D1.5*L12m 36 | Part | Other, Manometer, Three-limb tube,Valve, Hose joint |
Product Description
Specifications
marine salvage airbag1It can use 10 years
2Reliability and safety
3CCS/BV/ISO17357
4 good after-sale service
1Florescence marine airbags for ship launch&salvage
Florescence inflatable rubber airbag comply with ISO 14409. ship airbag can be used to launch and upgrade a ship up to 100,000DWT. Comparing to the traditional slipway launching method, the ship launching airbags are much environmental, because ship airbag can launch a ship at any seaside, so there's no need to worry about the construction of launching facilities; besides, the marine airbag need little maintenance and can be used repeatedly( about 65-80 times,10 years ).
Marine salvage airbags have the same body construction with the ship launching air bags.The airbag is constructed of an out rubber layer, multilayer heavy-duty synthetic-tire-cord layers, and an inner rubber layer vulcanized firmly. It has the cylindrical balloon body, with two conical head and terminal inflation iron inlet.
2Our Rubber Airbag& Factory(USP) Advantages:
1.Dia1.2/1.5/1.8m airbag stock available(big discount),quick delivery
2.Lifespan:can be reused for 65-80 times,10 years
3.Guaranteed period:12 months
4.Certificates:CCS, BV,ISO etc
5.Provide repair rubber patch
6.Material:natural rubber, rubber-dipped nylon cord fabric
7.Factory with 20 years' experience
3How to use marine airbags to salvage ship:
 1.what equipments are needed to install / securing / inflate the air bags(for salvage)?
You will need diver to go under the water(install); and tie our deflated airbags with rope or net to
the bottom of your ship(securing);then inflate the airbag with air compression machine linked by
rubber hose on the land(inflate ).
2. what is our warranty?
We cans assure that we can lift any ships as you wanted, as long as we get enough proper information
of the project and the ships are not too deep.
Besides the airbags, we can design suitable solution for your projects and provide any equipments that are need druring the salvage, including rope or rope net, winch, rubber tube and air compression machine, etc.

4Standard specifications:
Diameter (D):  | From 0.8m to 2.8m  |
Effective Length (EL):  | From 6.0m to 28.0m  |
Total Length (TL):  | From 7.0m to 21.5m  |
Standard Number of Layers:  | Usually 4-10 layers  |
Loading Capacity:  | About 10-40 T/M  |
5Application:
1.ship launching, lifting and refloating
2. floating bridge and dock construction
3.rescue and remove of wrecked ship
4.setting up temporary pontoon bridge pier and water transport channel
5.blocking debacle of anti-flood and anti typhoon dam
6.applying to short distance transport of the bridge, concrete piers, drilling equipment
6Guaranteed working pressure:
type  | D=0.8m  | D=1.0m  | D=1.2m  | D=1.5m  | D=1.8m  | D=2.0m  |
3 layers  | 0.13MPA  | 0.10MPA  | 0.09MPA  | 0.07MPA  | 0.06MPA  | 0.05MPA  |
4 layers  | 0.17MPA  | 0.13MPA  | 0.11MPA  | 0.09MPA  | 0.08MPA  | 0.07MPA  |
5 layers  | 0.21MPA  | 0.17MPA  | 0.14MPA  | 0.11MPA  | 0.09MPA  | 0.08MPA  |
6 layers  | 0.25MPA  | 0.20MPA  | 0.17MPA  | 0.13MPA  | 0.11MPA  | 0.10MPA  |
7 layers  | 0.29MPA  | 0.23MPA  | 0.20MPA  | 0.15MPA  | 0.13MPA  | 0.12MPA  |
8 layers  | 0.33MPA  | 0.26MPA  | 0.23MPA  | 0.17MPA  | 0.15MPA  | 0.14MPA  |

Any question, please feel free to contact me, we will reply to you within 24 hours.
----Michelle
