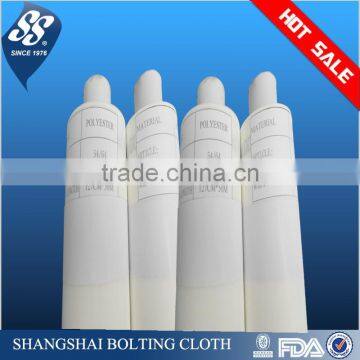

PA6 Nylon Bolting Cloth gg Nylon Flour Sieve Mesh
US$ 0.2 - 30
/ Meter
30 Meters(Min. Order)
- shanghai/tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Good China Supplier 500 Micron Mesh Sieve
-
China Supplier Nylon Xxx Series Sieve Mesh
-
36GG Nylon Flour Mesh/wheat Flour Sieve Mesh/flour Plain Sifter Mesh (polyester, Nylon Material With All Types)
-
24GG Nylon Flour Mesh/wheat Flour Sieve Mesh/flour Plain Sifter Mesh (polyester, Nylon Material With All Types)
-
30GG Nylon Flour Mesh/wheat Flour Sieve Mesh/flour Plain Sifter Mesh (polyester, Nylon Material With All Types)
-
Nylon XXX Series Sieve Mesh for Flour or Other Granule
Product Details
| Place of Origin | Shanghai, China | Brand Name | Shangshai | |
| Model Number | 10gg-74gg | Usage | Solid Filter | |
| Type | Other, Filter Elements, Mesh Fabric gg nylon flour sieve mesh | Material | Nylon | |
| Hole Shape | Square | Filter Rating | high | |
| Thickness | 30-800um | Length | 30-70m/roll | |
| Width | 100~365cm |
Product Description

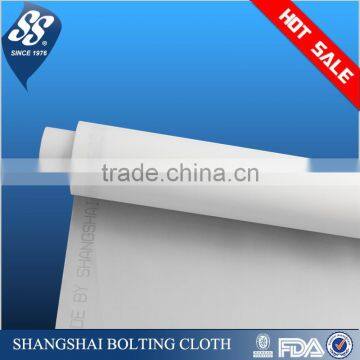

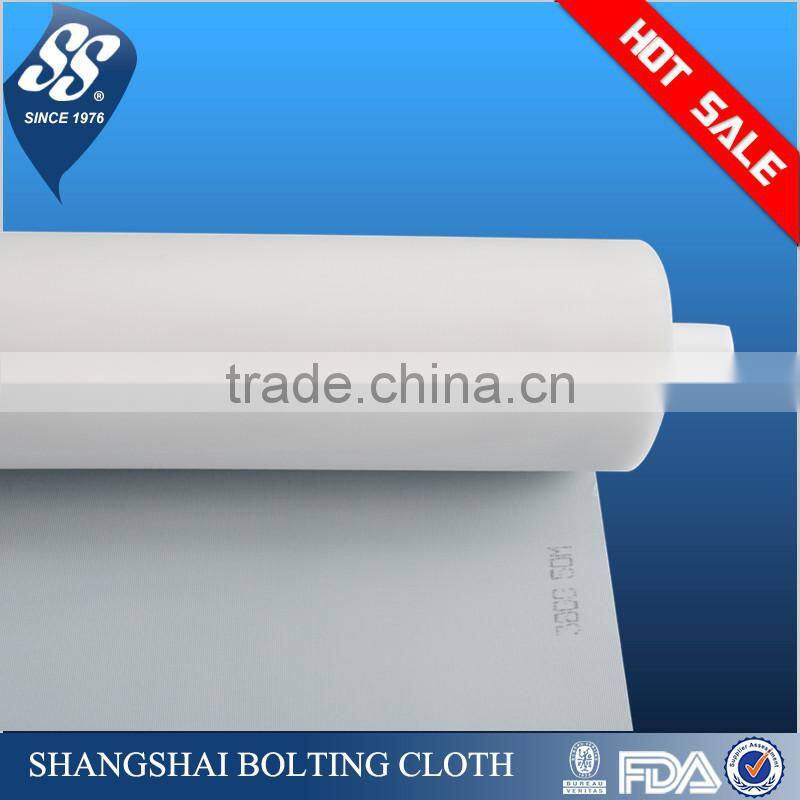

PA6 nylon bolting cloth for flour cloth (FDA Standard)
nylon bolting cloth/ flour mill sieve / gg nylon flour sieve mesh
Production
| Nylon Filter Mesh/ flour mill sieve/ flour sifter sieve/ gg nylon flour sieve mesh | |||||||
| Model | mesh count (/cm) | mesh count (/inch) | thread diameter (um) | mesh opening (um) | open area (%) | thickness (um) | weight ( g/ m2 ) |
| NL4/1931 | 4 | 10 | 550 | 1931 | 60 | 1100 | 251 |
| NL5/1485 | 5 | 13 | 500 | 1485 | 55 | 1000 | 270 |
| NL5/1535 | 5 | 13 | 450 | 1535 | 59 | 900 | 218 |
| NL6/1254 | 6 | 15 | 400 | 1254 | 57 | 800 | 199 |
| NL7/1068 | 7 | 18 | 350 | 1068 | 56 | 700 | 183 |
| NL8/891 | 8 | 20 | 350 | 891 | 51 | 700 | 203 |
| NL8/990 | 8 | 20 | 250 | 990 | 63 | 500 | 104 |
| NL9/853 | 9 | 24 | 250 | 853 | 59 | 500 | 125 |
| NL10/743 | 10 | 25 | 250 | 743 | 55 | 500 | 130 |
| NL10/693 | 10 | 25 | 300 | 693 | 48 | 600 | 187 |
| NL12/578 | 12 | 30 | 250 | 578 | 48 | 500 | 156 |
| NL12/528 | 12 | 30 | 300 | 528 | 40 | 600 | 224 |
| NL14/410 | 14 | 35 | 300 | 410 | 33 | 510 | 261 |
| NL14/509 | 14 | 35 | 200 | 509 | 51 | 340 | 116 |
| NL16/421 | 16 | 41 | 200 | 421 | 45 | 340 | 136 |
| NL16/371 | 16 | 41 | 250 | 371 | 35 | 425 | 213 |
| NL17/384 | 17 | 42 | 200 | 384 | 43 | 340 | 139 |
| NL18/332 | 18 | 45 | 220 | 332 | 36 | 374 | 181 |
| NL20/347 | 20 | 50 | 150 | 347 | 48 | 255 | 93 |
| NL20/297 | 20 | 50 | 200 | 297 | 35 | 340 | 166 |
| NL24/264 | 24 | 60 | 150 | 264 | 40 | 255 | 112 |
| NL28/235 | 28 | 70 | 120 | 235 | 43 | 204 | 84 |
| NL28/205 | 28 | 70 | 150 | 205 | 33 | 255 | 131 |
| NL30/211 | 30 | 76 | 120 | 211 | 40 | 204 | 91 |
| NL32/210 | 32 | 80 | 100 | 210 | 45 | 170 | 66 |
| NL36/176 | 36 | 90 | 100 | 176 | 40 | 170 | 75 |
| NL40/149 | 40 | 100 | 100 | 149 | 35 | 170 | 83 |
| NL44/126 | 44 | 110 | 100 | 126 | 31 | 170 | 91 |
| NL43/151 | 43 | 110 | 80 | 151 | 42 | 136 | 58 |
| NL48/127 | 48 | 120 | 80 | 127 | 37 | 136 | 64 |
| NL56/117 | 56 | 142 | 60 | 117 | 43 | 102 | 42 |
| NL59/108 | 59 | 150 | 60 | 108 | 41 | 102 | 45 |
| NL64/95 | 64 | 163 | 60 | 95 | 37 | 102 | 49 |
| NL72/88 | 72 | 183 | 50 | 88 | 40 | 85 | 38 |
| NL76/79 | 76 | 193 | 52 | 79 | 36 | 88 | 43 |
| NL80/74 | 80 | 203 | 50 | 74 | 35 | 85 | 42 |
| NL88/71 | 88 | 224 | 42 | 71 | 39 | 71 | 33 |
| NL96/62 | 96 | 244 | 42 | 62 | 35 | 76 | 36 |
| NL100/55 | 100 | 254 | 42 | 55 | 31 | 80 | 37 |
| NL104/51 | 104 | 264 | 42 | 51 | 29 | 71 | 39 |
| NL110/46 | 110 | 279 | 42 | 46 | 25 | 76 | 41 |
| NL120/39 | 120 | 305 | 42 | 39 | 21 | 80 | 45 |
| NL120/43 | 120 | 305 | 38 | 43 | 25 | 65 | 37 |
| NL120/46 | 120 | 305 | 35 | 46 | 29 | 60 | 31 |
| NL130/32 | 130 | 330 | 43 | 32 | 17 | 73 | 51 |
| NL130/40 | 130 | 330 | 35 | 40 | 25 | 60 | 34 |
| NL140/35 | 140 | 356 | 35 | 35 | 22 | 60 | 36 |
| NL150/34 | 150 | 381 | 31 | 34 | 25 | 53 | 30 |
Remark:The above are theoretic data for reference only.Thickness error range±5% ; Mesh Opening & Open Area & Weight only slight error according to actual data. | |||||||
Applications
Filteration: gg nylon flour sieve mesh widely used in areas as filtration and separation industry,the industries of flour milling and sieveing,
the petroleum, chemical, metallurgy, cement, environmental dedusting and mine.
Filtration rates gg nylon flour sieve mesh can be from 27% to 78%. Such as food industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk etc.
Packaging & Shipping
shipping of gg nylon flour sieve mesh : 1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
Packaging for gg nylon flour sieve mesh :
standard export packaging,with pvc bag and carton custome packing available at request
