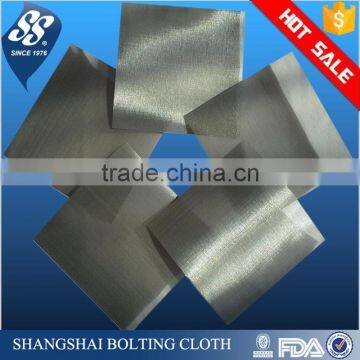

Stainless Steel Standard Lab Test Salt Sieve Woven SS Filter Mesh Wire Mesh Test Sieve

Application: The stainless steel test sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction departments,etc.

Aperture sizes are as per 25μm,38μm, 45μm, 53μm, 63μm, 75μm, 80μm, 90μm, 100μm, 106μm, 125μm, 150μm, 160μm, 180μm, 200μm, 212μm, 250μm, 300μm, 315μm, 355μm, 400μm, 425μm, 500μm, 600μm, 630μm, 710μm, 800μm, 850μm, 1.00mm, 1.18mm, 1.25mm, 1.40mm, 1.60mm, 1.70mm, 2.00mm, 2.36mm, 2.50mm, 2.80mm, 3.35mm, 4.00mm, 4.75mm,5.00mm,10mm

Stainless Steel  Standard Sieve for Lab Test:

1.Mesh material : SS304/316/304L/316L,etc.

2.Wire dia : 0.025--2.0mm

3.Diameter : 3'' , 6'' , 8'' , 10'' , 12'' , 200mm , 300mm , etc.

4.Mesh : 5--500mesh      Aperture/Opening :10--10000µm

5.Frame material : SS , brass.

6.Frame height (full) : 1-3/4'' -- 2-5/8''      half : 1-1/4'' -- 1-5/8''

7.Depth to cloth (full) : 1-1/4'' -- 2''            half : 5/8'' -- 1''

Parameters

Standard Sieve for Lab Test

Standard Test Sieve Feature:

• Good filtering .
• Corrosion resistance.
• Easy to clean.
• Long using life.

Standard Test Sieve Application:

Used for chemical, cosmetics, general industrial, fertilizer, foods ( grain , coffee ), minerals,etc.

Test Sieve Cover & Bottom

This stainless steel standard lab test sieve‘s features is as follow:

1) Usage: Suitable for exact mesh analysis, test, measure, classification of granular material, widely used in abrasive, building materials, chemical, pharmaceutical, metallurgy industries, etc.

2) Easy to use, attractive and durable, high precision, wear-resistant, heat-resistant

3) Screen frame is definitized by stainless steel stretching, not magnetic. Top and bottom screen frame uses taper fit, complete sealing after installation, avoids electrostatic adsorption.

4) Accurate mesh: Screen cloth conforms to ISO3310:1990, ASTM, TYLER, JIS, DIN, BSI and subjects to tool microscope and projector examination, without deformation for long term usage.

Structure

1) Screen frame: polishing or not, according to customer requirements

2) Screen cloth: three kinds-wire cloth, perforated plate, electroformed sheet

3) Screen cloth and frame are fixed by welding, can withstand temperatures up to 300 degree.
