Home > Products > New Products > RSN7-3150-2 Double Gun Inverter Arc Welder For Weld Stud M6-M36

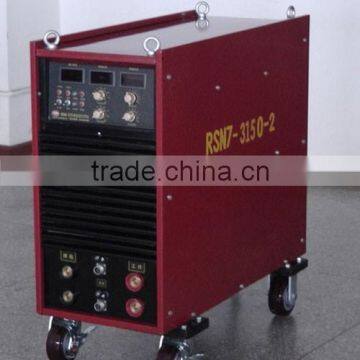

RSN7-3150-2 Double Gun Inverter Arc Welder For Weld Stud M6-M36
- T/T
You May Like
-
RSN7-4000-2 Dual Torch Electric Welding Machine
-
RSN7-5000-2 Double Gun Dual-Torch Stud Welders
-
RSN7-800 Inverter Welding Machine For Studs
-
RSN7-1200 Drawn Arc Inverter IGBT Stud Welders for M3-M16 Studs
-
RSN7-2500 Inverter Welding Machine for M4-M28 Weld Studs
-
RSN7-1600 Steel Construction Stud Welders for M4-M20 Studs
Product Details
| Condition | New | Place of Origin | Chongqing, China | |
| Model Number | RSN7-3150-2 arc welder | Pilot Arc Current | one torch: 400A-3150A; dual-torch: 300A-1550A | |
| Rated Duty Cycle | 15% | Motor Type | AC Motor | |
| Dimensions | M6mm-M36mm | Usage | Welding M6-M36 Studs for steel construction, bridge etc. | |
| Voltage | AC 3~300V-440V | Power(W) | 120KW | |
| Certification | CE |
Product Description
RSN7-3150-2 Double Gun Inverter Arc Welder For Weld Stud M6-M36:
Feature:
1.IGBT Inverter technology.
2.Less weight, power efficient, safe and reliable.
3.Easy control and digital display of welding voltage, current and time.
4.Special torch with extending cables, large lfiting force, low heat and durable.
5.Inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.
6.Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower), the welding strength is much higher than ordinary welding machine. This feature applies to: electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.
Technical Parameters:
| Item | RSN7-2500-2 | RSN7-3150-2 | RSN7-4000-2 | RSN7-5000-2 | ||||
| operation situation | one gun | dual guns | one gun | dual guns | one gun | dual guns | one gun | dual guns |
| welding range | Φ6-Φ28 | Φ4-Φ18 | Φ6-Φ36 | Φ4-Φ20 | Φ6-Φ46 | Φ4-Φ24 | Φ8–Φ50 | Φ6–Φ28 |
| welding current | 400A-2500A | 300A-1250A | 400A-3150A | 300A-1550A | 600A-4000A | 400A-2000A | 600A-5000A | 400A-2500A |
| welding speed | Φ28 8pcs/minute | Φ18 8pcs/minute | Φ36 8pcs/minute | Φ20 8pcs/minute | Φ46 8pcs/minute | Φ24 8pcs/minute |
Φ50 6pcs/minute
| Φ28 6pcs/minute |
| welding time | 0.1S-3S | 0.1S-3S | 0.1S-3S | 0.1S-3S | ||||
| input power | AC 3˜300V-440V | AC 3˜300V-440V | AC 3˜300-440 | AC 3˜300-440 | ||||
| rated input power | 90KW | 120KW | 150KW | 190KW | ||||
| power switch | 160A | 225A | 250A | 250A | ||||
| protect grade | Ip23 | Ip23 | Ip23 | Ip23 | ||||
| cooling way | F | F | F | F | ||||
| dimension(L/W/H) | 960x418x760mm | 990x418x800mm | 990x418x800mm | 990x418x800mm | ||||
| weight | 168KG | 180KG | 188KG | 198KG | ||||
