XSF Spiral Sand Water Separator
- QINGDAOGANG
 - T/T

You May Like
-


XSF Wastewater Treatment Spiral Sand Water Separator
 -


Factory Supply High Quality Sand Water Separator
 -


Spiral Grit Water Separator Apply in Grit Tank
 -


Spiral Grit-water Separator Apply in Grit Chamber
 -


XSF Type Spiral Sand Water Separator Use for Sewage Treatment Plant
 -


XSF Spiral Sand Water Separator in Water Treatment

Product Details
| Place of Origin | Shandong, China | Brand Name | JINHAOSANYANG | |
| Model Number | XSF |
container;
seaworthy package
Product Description
Specifications
XSF spiral sand water separator1.separate efficiency: 90-98%
2.separate sand: diameter greater than 0.2mm.
3.0.37-2.2kw

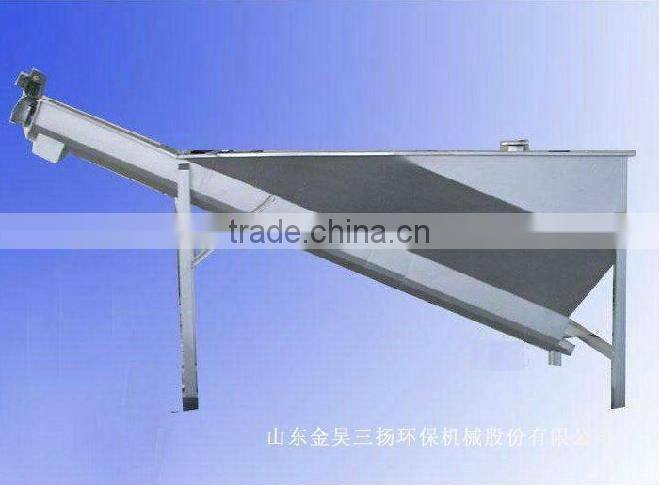

XSF spiral sand water separator

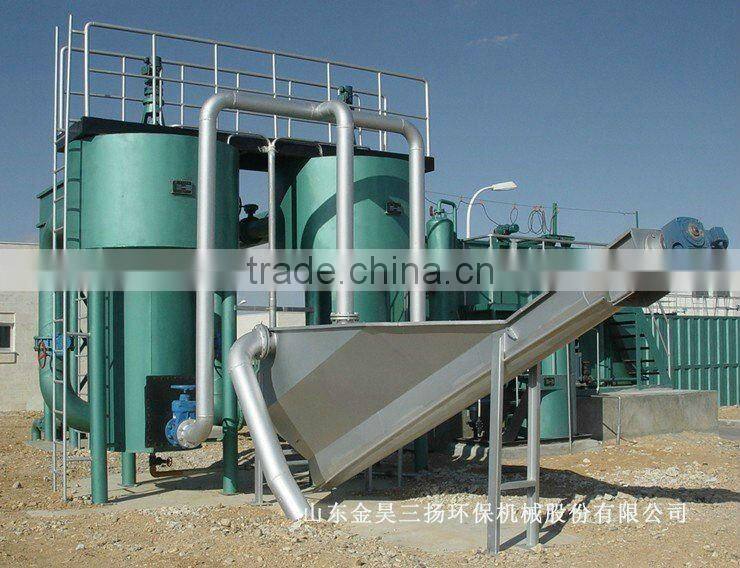

XSF spiral sand water separator used in sewage treatment plant, sink sand pool, make discharging sand water mixture for sand water separation.
Structure and working principle
XSF spiral sand water separator consists of unshaft spiral, stay tape, U-shaped slot, water box, guide plate and driving device etc.
Working process: sand water mixture feed in water box from the top of sepatator, the heavy pieces in the mixture such as sand will sedimentate on the bottom of U-shaped slot, under the remove of spiral, sand will lifting along inclined U-shaped bottom, after left liquid surface continue remove a certain distance. After the sand full discharging, through row sand pipe discharge to sand box, and the separated water will fill into the factory water pool.
Characteristics:
- separating efficiency can reach to 90-98%, can separate the sand that diameter greater than 0.2mm.
 - use unshaft spiral, without underwater bearing, convenience to maintainence.
 - structure tightly and light weight.
 - new type transmission device, the key unit-reducer is advanced shaft device.
 - stay tape is fast loading type, convenience to exchange.
 - spiral shaft device can be changeable, convenience to exchange the safe gap.

Main technique parameter
Model  | XSF-320  | XSF-360  | XSF-420  |
Treatment quantity L/S  | 15-20  | 20-27  | 27-35  |
Motor power W  | 0.37  | 0. 75  | 0.75  |
speed  | 4.8r/min  | ||

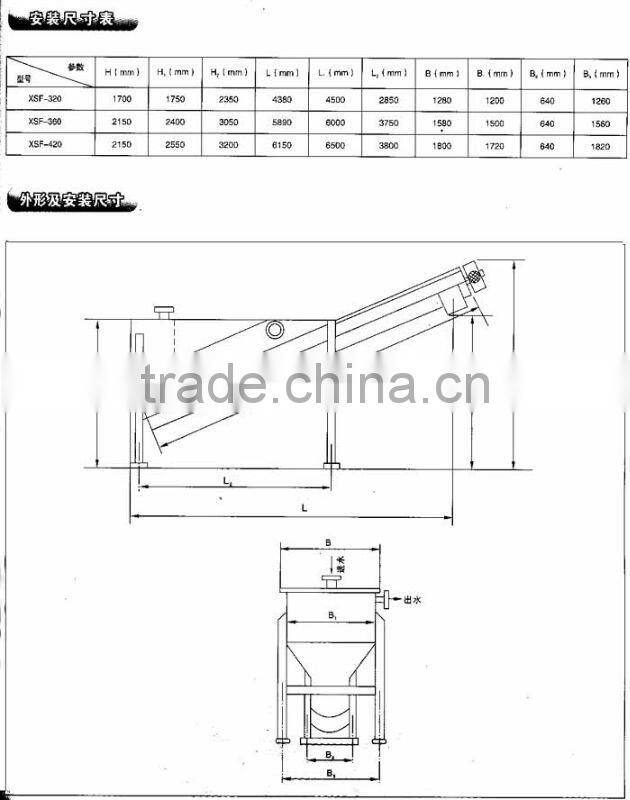

Inatallation size
specific model  | H (mm)  | H1 (mm)  | H2 (mm)  | L (mm)  | L1 (mm)  | L2 (mm)  | B (mm)  | B1 (mm)  | B2 (mm)  | B3 (mm)  |
XSF-320  | 1700  | 1750  | 2350  | 4380  | 4500  | 2850  | 1280  | 1200  | 640  | 1260  |
XSF-360  | 2150  | 2400  | 3050  | 5890  | 6000  | 3750  | 1580  | 1500  | 640  | 1560  |
XSF-420  | 2150  | 2550  | 3200  | 6150  | 6500  | 3800  | 1800  | 1720  | 640  | 1820  |


XSF spiral sand water separator for solid-liquid separation
